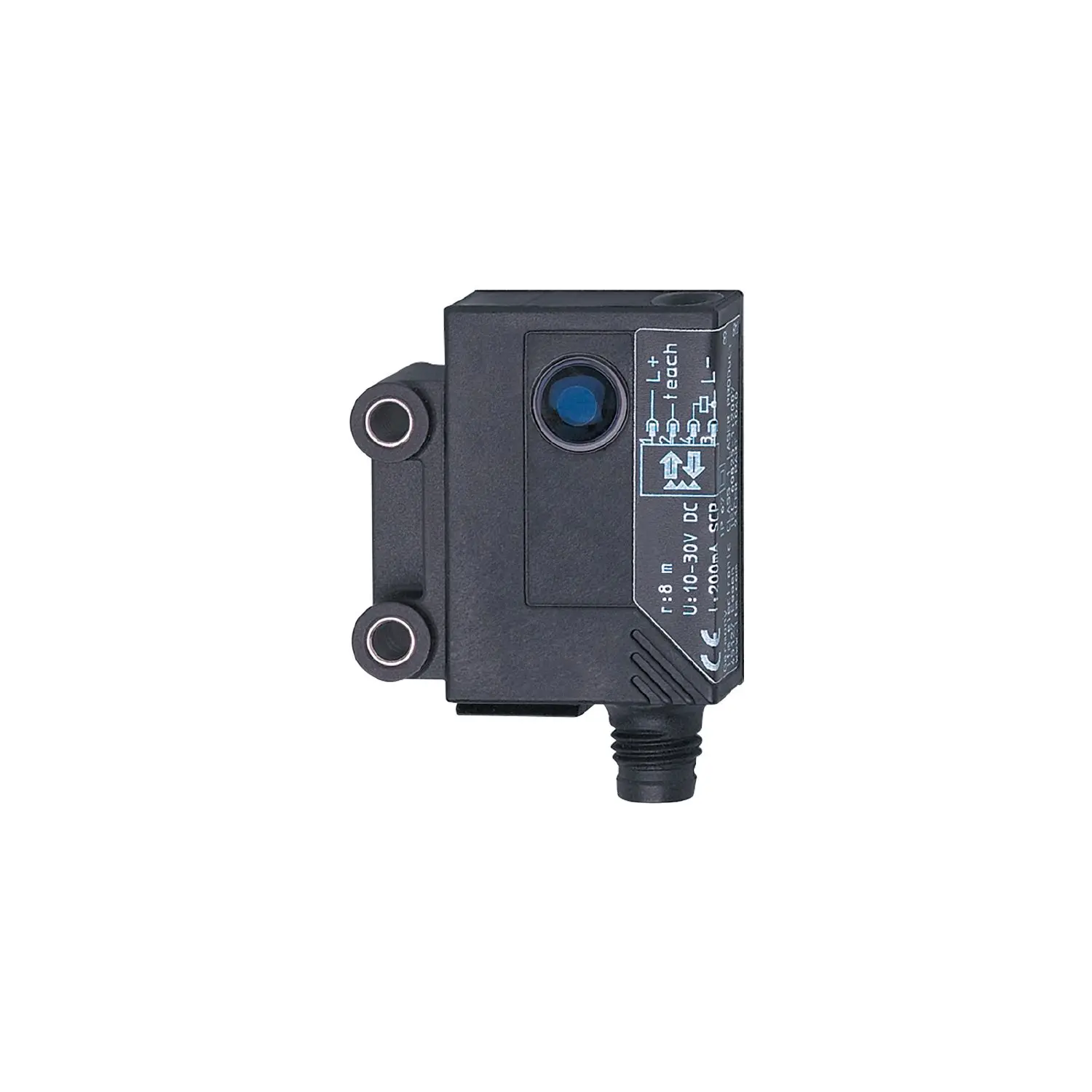

ifm Electronic OJ5116 Laser Einweglichtschranke Sender

Product characteristics

• Type of light: red light
• Laser protection class: 1
• Housing: rectangular

Application

• Function principle: Through-beam sensor

Electrical data

• Operating voltage [V]: 10...30 DC
• Current consumption [mA]: < 12
• Protection class: III
• Reverse polarity protection: yes
• Type of light: red light
• Wave length [nm]: 650
• Typ. lifetime [h]: 50000

Outputs

• Overload protection: yes

Detection zone

• Transmitter / receiver: transmitter
• Range [m]: < 15
• Range adjustable: no
• Max. light spot diameter [mm]: 24
• Light spot dimensions refer to: at maximum range

Operating conditions

• Ambient temperature [°C]: -10...60
• Protection: IP 67

Tests / approvals

• EMC: EN 60947-5-2,
• Laser protection class: 1
• Notes on laser protection: Caution:, laser light
, laser class:, 1, , EN / IEC60825-1:2007, , EN / IEC60825-1:2014, , Complies with 21 CFR 1040 except for deviations pursuant to Laser Notice No. 50, dated June 2007.
• MTTF [years]: 918

Mechanical data

• Weight [g]: 27.9
• Housing: rectangular
• Dimensions [mm]: 35 x 24 x 11
• Materials: housing: ABS; LED window: SEPS; pushbutton: SEPS
• Lens material: glass
• Lens alignment: front lens

Displays / operating elements

• Display: operation, 1 x LED, green

Accessories

• Items supplied: screws: 2
, spring washers: 2, Nuts: 2

Remarks

• Remarks: operating voltage "supply class 2" according to cULus
• Pack quantity: 1 pcs.

Electrical connection

• Connection: Connector: 1 x M8; coding: A

OJ5116-03 — 13.04.2023 —
