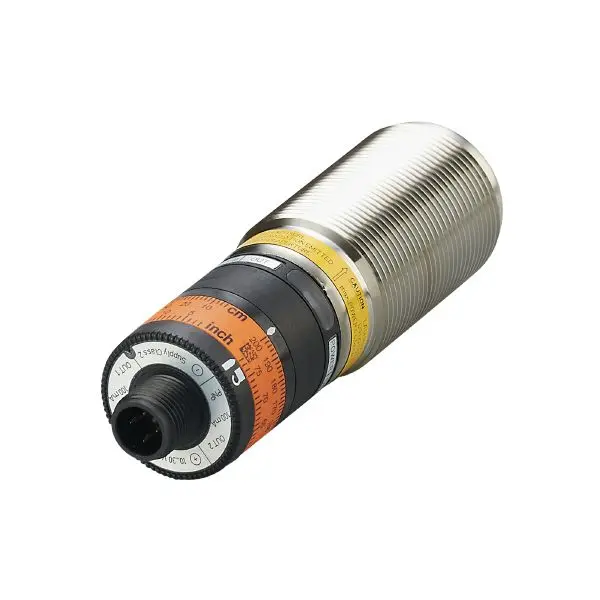

ifm Electronic OID254, Optischer Abstandssensor

Product characteristics

• Type of light: red light
• Laser protection class: 1

Application

• Special feature: Background suppression

Electrical data

• Operating voltage [V]: 10...30 DC
• Current consumption [mA]: 75; (24 V)
• Protection class: III
• Reverse polarity protection: yes
• Type of light: red light
• Wave length [nm]: 650
• Typ. lifetime [h]: 50000

Inputs / outputs

• Number of inputs and outputs: Number of digital outputs: 2

Inputs

• Input circuit of digital inputs: 1 x 24 V PNP; (IEC 61131-2 Typ 3)

Outputs

• Total number of outputs: 2
• Electrical design: PNP
• Number of digital outputs: 2
• Output function: normally open / normally closed; (complementary)
• Max. current load per output [mA]: 100
• Switching frequency DC [Hz]: 11
• Short-circuit protection: yes
• Type of short-circuit protection: pulsed
• Overload protection: yes

Detection zone

• Max. light spot diameter [mm]: 5
• Light spot dimensions refer to: 2 m
• Detection range hysteresis [%]: < 5
• Note on monitoring range hysteresis: black 6% remission
• Background suppression available: yes
• Background suppression [m]: < 20

Measuring/setting range

• Measuring range [m]: 0.03...2
• Sampling rate [Hz]: 33

Interfaces

• Communication interface: IO-Link
• Transmission type: COM2 (38,4 kBaud)
• IO-Link revision: 1.1
• SDCI standard: IEC 61131-9
• Profiles: Smart Sensor: Sensor Identification; Binary Data Channel; Process Value; Sensor Diagnosis
• SIO mode: yes
• Process data analogue: 1
• Process data binary: 1
• Min. process cycle time [ms]: 6.6
• Supported DeviceIDs:
  • Type of operation, DeviceID: default, 579

  Operating
