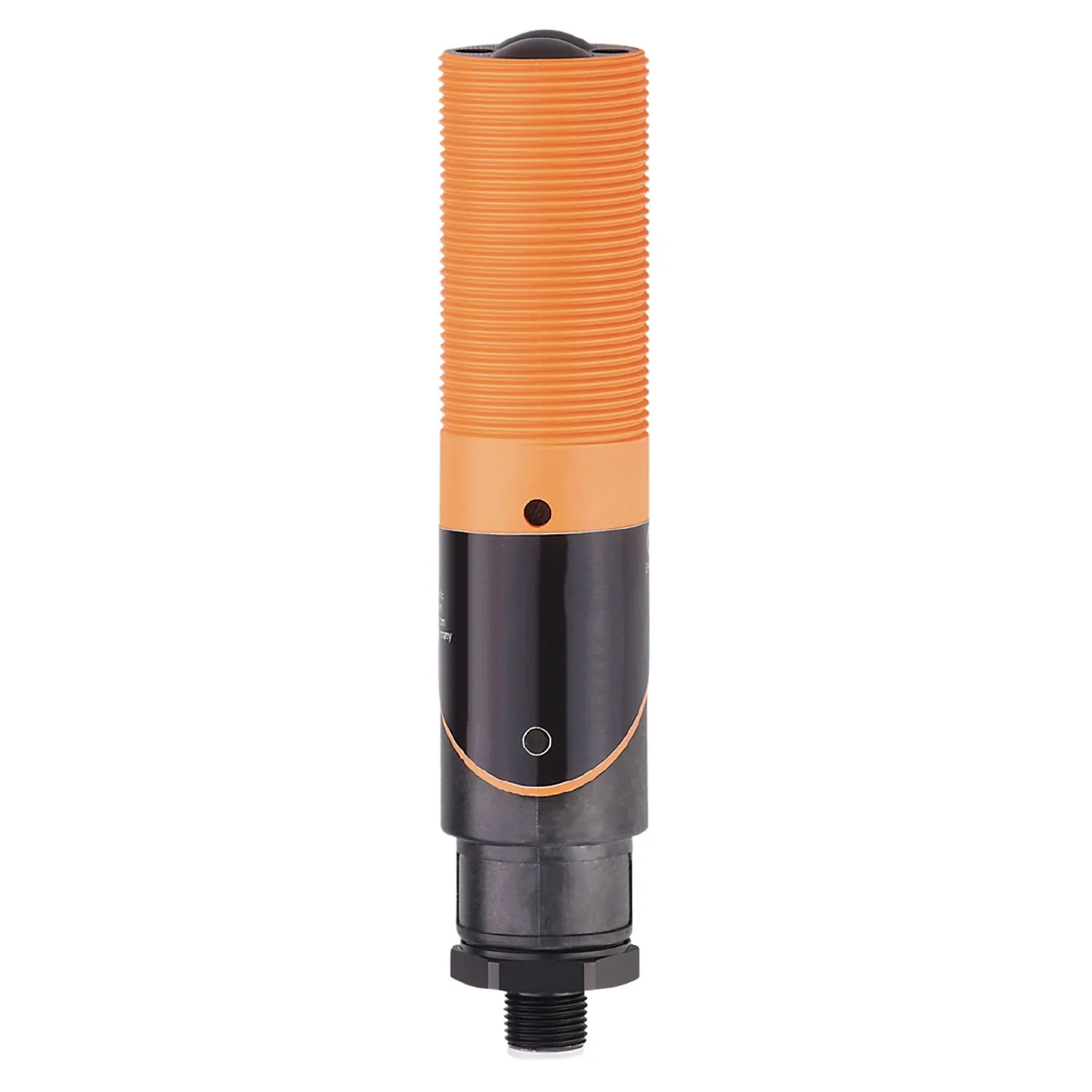

ifm Electronic OI5014 Reflexlichttaster

Product characteristics

• Type of light: infrared light
• Housing: threaded type

Application

• Function principle: Diffuse reflection sensor

Electrical data

• Operating voltage [V]: 10...55 DC
• Current consumption [mA]: 10; ((24 V))
• Protection class: II
• Reverse polarity protection: yes
• Type of light: infrared light
• Wave length [nm]: 880

Outputs

• Electrical design: PNP
• Output function: light-on/dark-on mode; (programmable)
• Max. voltage drop switching output DC [V]: 2.5
• Permanent current rating of switching output DC [mA]: 250
• Switching frequency DC [Hz]: 100
• Short-circuit protection: yes
• Type of short-circuit protection: pulsed
• Overload protection: yes

Detection zone

• Range [mm]: 3...700; (white paper 200 x 200 mm)
• Range adjustable: yes
• Max. light spot diameter [mm]: 122
• Light spot dimensions refer to: at maximum range

Operating conditions

• Ambient temperature [°C]: -25...80
• Protection: IP 65

Tests / approvals

• EMC: EN 60947-5-2,
• MTTF [years]: 659

Mechanical data

• Weight [g]: 132
• Housing: threaded type
• Dimensions [mm]: M30 x 1.5
• Thread designation: M30 x 1.5
• Materials: PPO modified
• Lens material: glass

Displays / operating elements

• Display: switching status, 1 x LED, yellow

Accessories

• Items supplied: lock nuts: 2
, screwdrivers

Remarks

• Pack quantity: 1 pcs.

Electrical connection

• Connection: Connector: 1 x M12; coding: A
