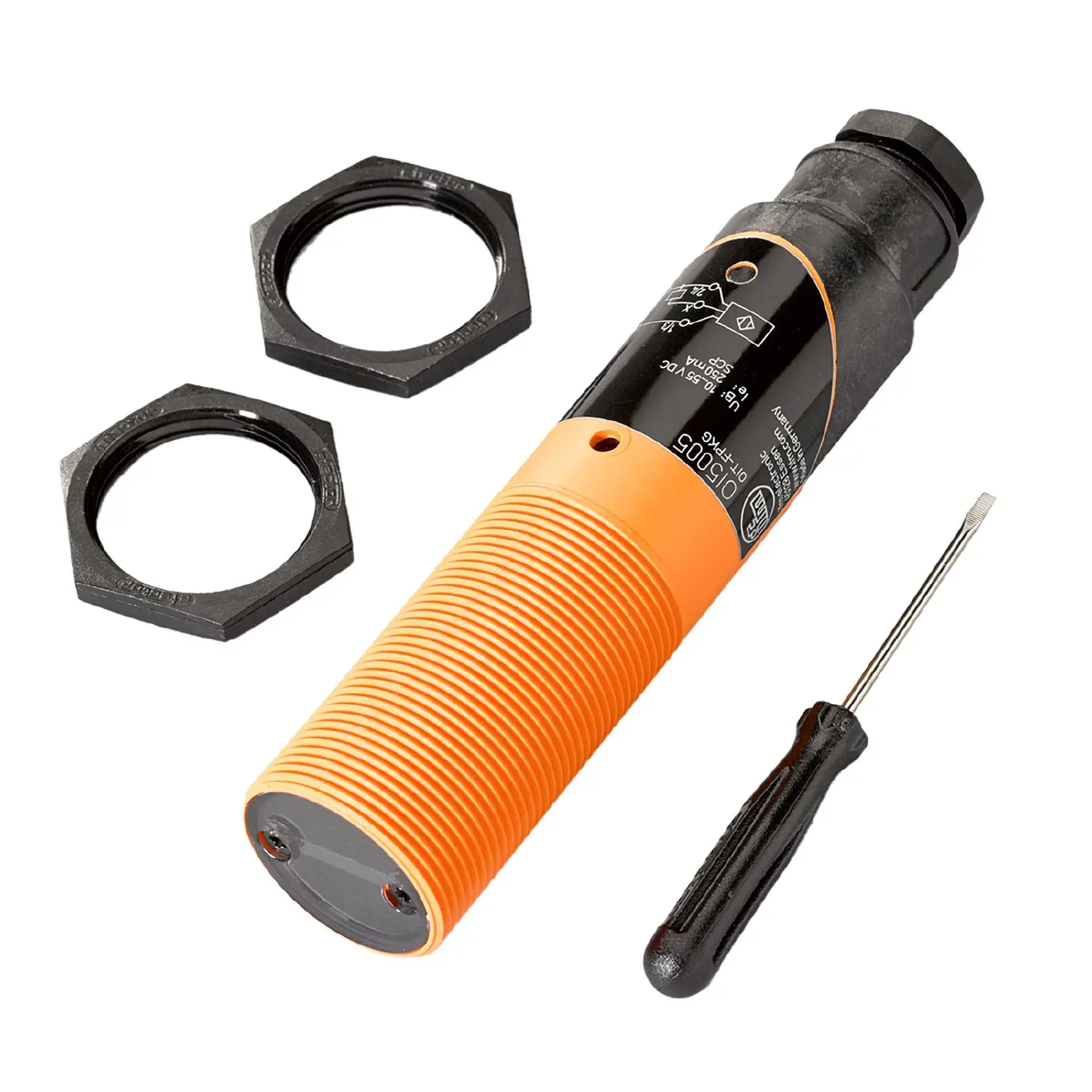

ifm Electronic OI5005 Reflexlichttaster

Product characteristics

• Type of light: infrared light
• Housing: threaded type

Application

• Function principle: Diffuse reflection sensor

Electrical data

• Operating voltage [V]: 10...55 DC
• Current consumption [mA]: 30; ((24 V))
• Protection class: II
• Reverse polarity protection: yes
• Type of light: infrared light
• Wave length [nm]: 880

Outputs

• Electrical design: PNP
• Output function: light-on/dark-on mode; (programmable)
• Max. voltage drop switching output DC [V]: 2.5
• Permanent current rating of switching output DC [mA]: 250
• Switching frequency DC [Hz]: 100
• Short-circuit protection: yes
• Type of short-circuit protection: pulsed
• Overload protection: yes

Detection zone

• Range [mm]: < 150; (white paper 200 x 200 mm 90% remission)
• Range adjustable: yes

Operating conditions

• Ambient temperature [°C]: -25...80
• Protection: IP 65

Tests / approvals

• EMC: EN 60947-5-2,
, EN 55011, class B
• MTTF [years]: 659

Mechanical data

• Weight [g]: 121
• Housing: threaded type
• Dimensions [mm]: M30 x 1.5
• Thread designation: M30 x 1.5
• Materials: PBT; PPO modified
• Lens material: PMMA

Displays / operating elements

• Display: switching status, 1 x LED, yellow

Accessories

• Items supplied: lock nuts: 2
, screwdrivers

Remarks

• Pack quantity: 1 pcs.

Electrical connection

• Connection: terminals: ...1.5 mm²; Cable sheath: Ø 7...13 mm; Cable gland: M20 X 1.5
