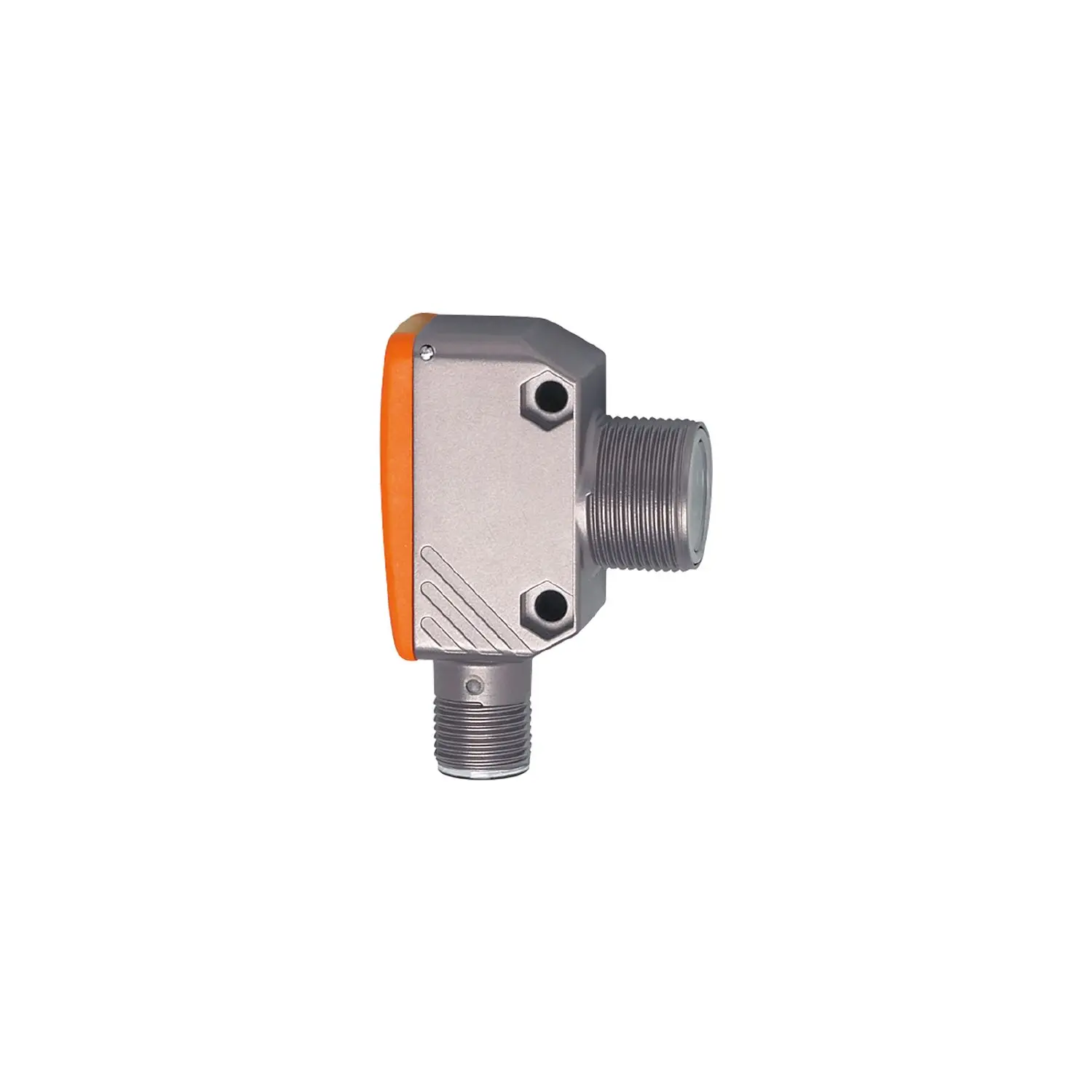

ifm Electronic OGP283 Reflexlichtschranke

Product characteristics

• Type of light: red light
• Housing: rectangular with M18 thread

Application

• Special feature: polarisation filter
• Function principle: Retro-reflective sensor

Electrical data

• Operating voltage [V]: 10...30 DC
• Current consumption [mA]: 21
• Protection class: III
• Reverse polarity protection: yes
• Type of light: red light
• Wave length [nm]: 662

Outputs

• Electrical design: NPN
• Output function: light-on mode
• Max. voltage drop switching output DC [V]: 2.5
• Permanent current rating of switching output DC [mA]: 200
• Switching frequency DC [Hz]: 1000
• Short-circuit protection: yes
• Type of short-circuit protection: pulsed
• Overload protection: yes

Detection zone

• Range referred to prismatic reflector [m]: 0.1...4; (Prismatic reflector Ø 80 E20005)
• Range adjustable: no
• Max. light spot diameter [mm]: 160
• Light spot dimensions refer to: at maximum range
• Polarisation filter available: yes

Interfaces

• Communication interface: IO-Link
• Transmission type: COM2 (38,4 kBaud)
• IO-Link revision: 1.1
• SDCI standard: IEC 61131-9
• Profiles: Smart Sensor: Device Identification; Device Diagnosis; Teach Channel; Switching Channel
• SIO mode: yes
• Required master port type: A
• Min. process cycle time [ms]: 2.5
• IO-Link process data (cyclical):
  • function, bit length: device status, 4
  , binary switching information, 1
  • IO-Link functions (acyclical): application specific tag; operating hours counter; switching cycles counter
  • Supported DeviceIDs:
    • Type of operation, DeviceID: default, 1146
    • Note: For further information please see the IODD PDF file under "Downloads"

    Operating conditions

    • Ambient temperat
