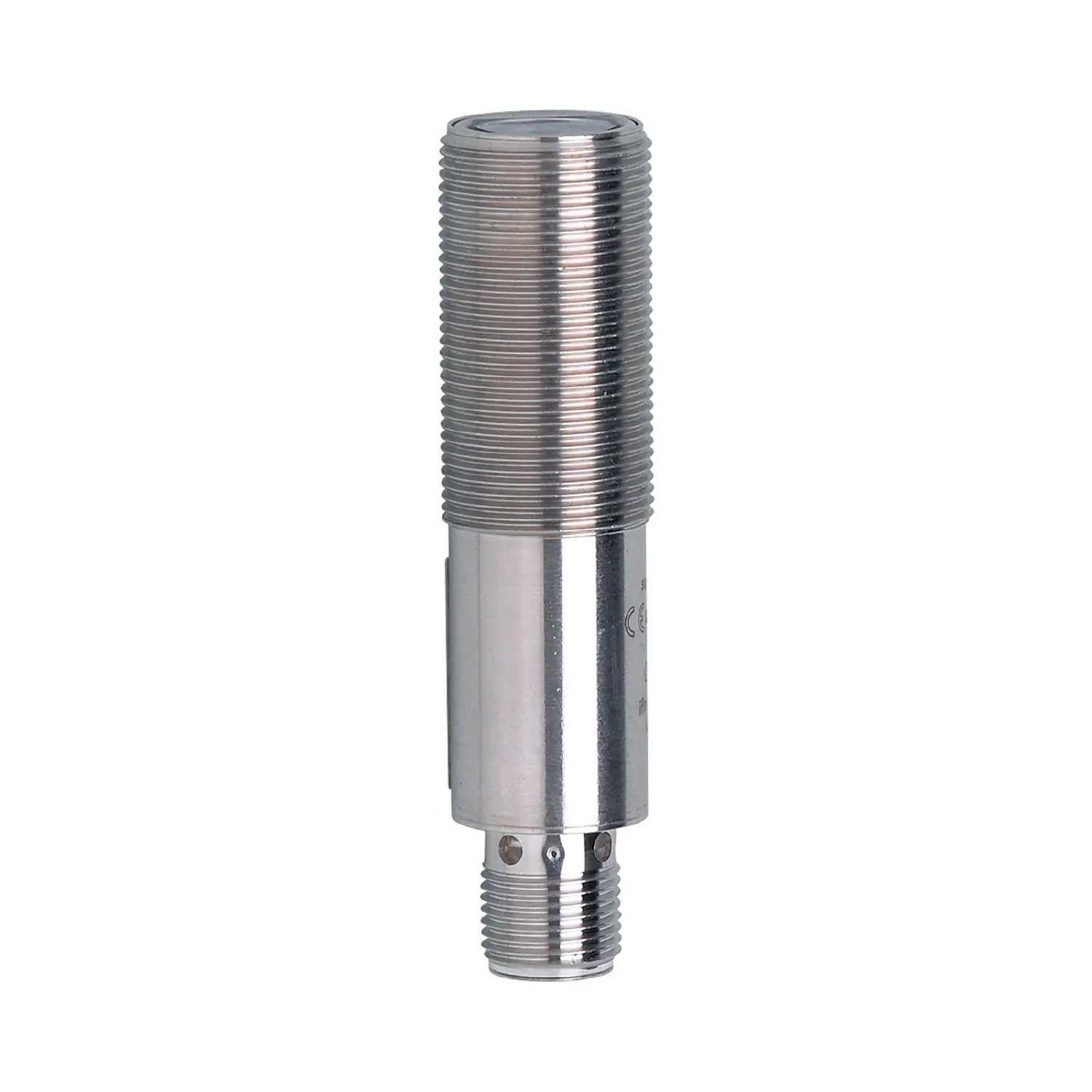

ifm Electronic OGE702 Laser Einweglichtschranke Empfänger

Product characteristics

• Type of light: red light
• Housing: threaded type

Application

• Function principle: Through-beam sensor

Electrical data

• Operating voltage [V]: 10...36 DC
• Current consumption [mA]: 11
• Protection class: II
• Reverse polarity protection: yes
• Type of light: red light
• Typ. lifetime [h]: 50000

Outputs

• Electrical design: PNP
• Output function: dark-on mode
• Max. voltage drop switching output DC [V]: 2.5
• Permanent current rating of switching output DC [mA]: 200
• Switching frequency DC [Hz]: 1000
• Short-circuit protection: yes
• Type of short-circuit protection: pulsed
• Overload protection: yes

Detection zone

• Transmitter / receiver: receiver
• Range [m]: < 60
• Range adjustable: yes
• Diameter of the smallest detectable object [mm]: 3; (60 m)

Operating conditions

• Ambient temperature [°C]: -10...60
• Protection: IP 67; IP 68; IP 69K

Tests / approvals

• EMC: EN 60947-5-2,
• MTTF [years]: 786

Mechanical data

• Weight [g]: 62.8
• Housing: threaded type
• Dimensions [mm]: M18 x 1 / L = 72
• Thread designation: M18 x 1
• Materials: housing: stainless steel (1.4404 / 316L); PA; Sealing: EPDM
• Lens material: PMMA

Displays / operating elements

• Display: switching status, 1 x LED, yellow

Accessories

• Items supplied: lock nuts: 2

Remarks

• Pack quantity: 1 pcs.

Electrical connection

• Connection: Connector: 1 x M12; coding: A

OGE702-00 — 13.04.2023 —
