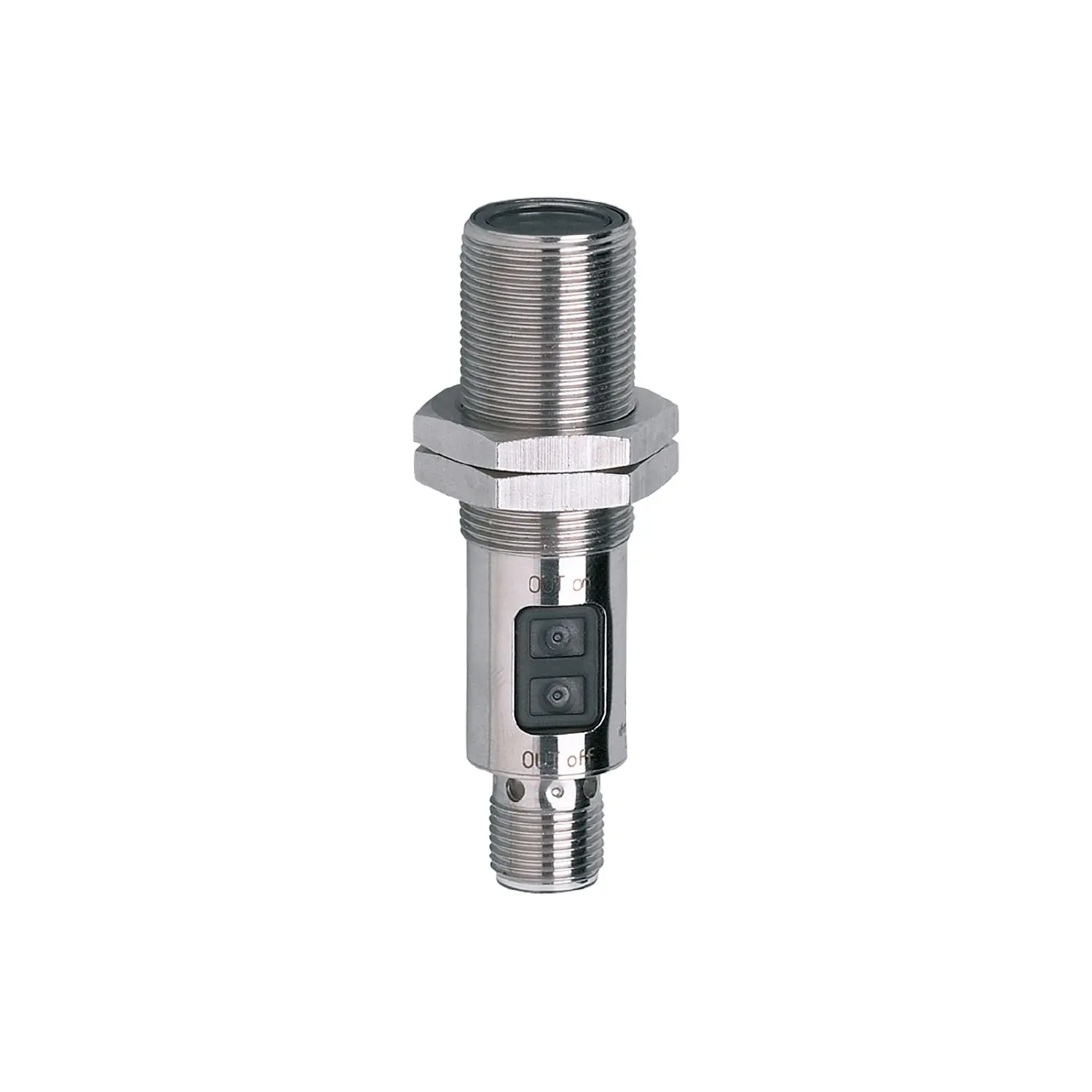

ifm Electronic OGE304 Einweglichtschranke Empfänger

Product characteristics

• Type of light: red light
• Housing: threaded type

Application

• Function principle: Through-beam sensor

Electrical data

• Operating voltage [V]: 10...36 DC
• Current consumption [mA]: 11
• Protection class: II
• Reverse polarity protection: yes
• Type of light: red light

Outputs

• Electrical design: PNP
• Output function: light-on/dark-on mode; (programmable)
• Max. voltage drop switching output DC [V]: 2.5
• Permanent current rating of switching output DC [mA]: 150; (200 (...60 °C))
• Switching frequency DC [Hz]: 1000
• Short-circuit protection: yes
• Type of short-circuit protection: pulsed
• Overload protection: yes

Detection zone

• Transmitter / receiver: receiver
• Range [m]: < 25
• Factory setting: light-on mode
• Range adjustable: yes

Operating conditions

• Ambient temperature [°C]: -25...80
• Protection: IP 65; IP 67; IP 68; IP 69K

Tests / approvals

• EMC: EN 60947-5-2,
• MTTF [years]: 891

Mechanical data

• Weight [g]: 63
• Housing: threaded type
• Dimensions [mm]: M18 x 1 / L = 72
• Thread designation: M18 x 1
• Materials: stainless steel (1.4404 / 316L); PA; LCP; EPDM; TPU
• Lens material: PMMA

Displays / operating elements

• Display: switching status, 1 x LED, yellow

Accessories

• Items supplied: lock nuts: 2

Remarks

• Remarks: operating voltage "supply class 2" according to cULus
• Pack quantity: 1 pcs.

Electrical connection

• Connection: Connector: 1 x M12; coding: A
