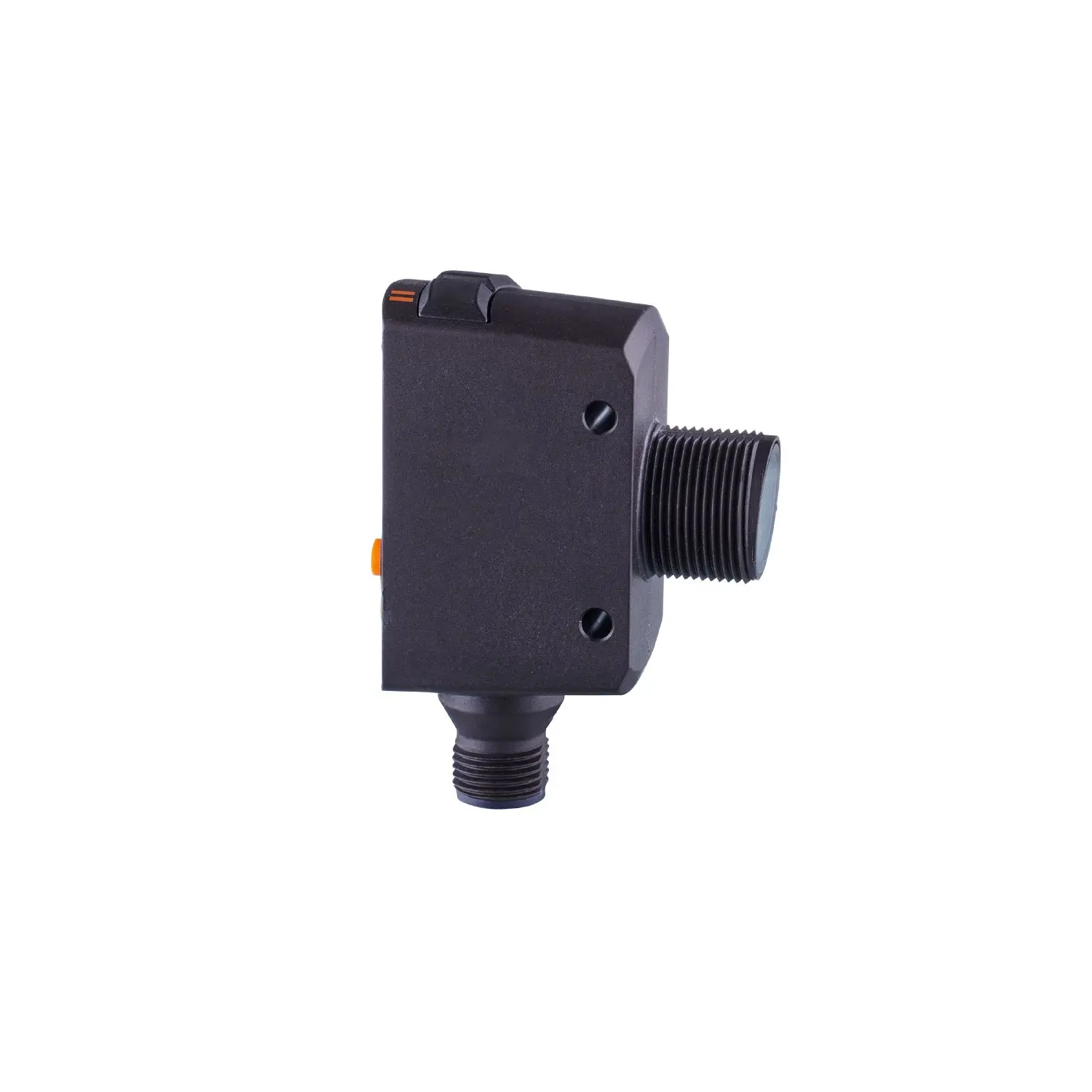

ifm Electronic OGD250 Optischer Abstandssensor

Product characteristics

• Type of light: red light
• Laser protection class: 1
• Housing: rectangular with M18 thread

Electrical data

• Operating voltage [V]: 10...30 DC; ("supply class 2" to cULus)
• Current consumption [mA]: 45; (24 V)
• Protection class: III
• Reverse polarity protection: yes
• Type of light: red light
• Wave length [nm]: 650

Inputs

• Inputs: Laser On/ Off

Outputs

• Electrical design: PNP/NPN; (parameterisable)
• Output function: 2 x normally open / normally closed; (parameterisable)
• Max. current load per output [mA]: 100
• Short-circuit protection: yes
• Type of short-circuit protection: pulsed
• Overload protection: yes
Operating mode: FINE
• Switching frequency DC [Hz]: 20
Operating mode: STD
• Switching frequency DC [Hz]: 40
Operating mode: FAST
• Switching frequency DC [Hz]: 60

Detection zone

• Max. light spot diameter [mm]: 5
• Light spot dimensions refer to: at maximum range
• Background suppression [m]: < 20

Measuring/setting range

• Setting range object reflectivity [%]: 6...900; (reflectivity; 6 % black paper; 100 % white paper)
Operating mode: FINE
• Measuring range [m]: 0.05...2
• Sampling rate [Hz]: 60
Operating mode: STD
• Measuring range [m]: 0.05...2
• Sampling rate [Hz]: 120
Operating mode: FAST
• Measuring range [m]: 0.05...1
• Sampling rate [Hz]: 180

Software / programming

• Parameter setting options: Distance / reflectivity; hysteresis / window; Sensitivität; current/voltage output; Sequence modulation to avoid mutual interference by similar sensors

Interfaces

• Communication interface: IO-Link
• Transmission type: COM2 (38,4 kBaud)
• IO-Link revision: 1.1.3
