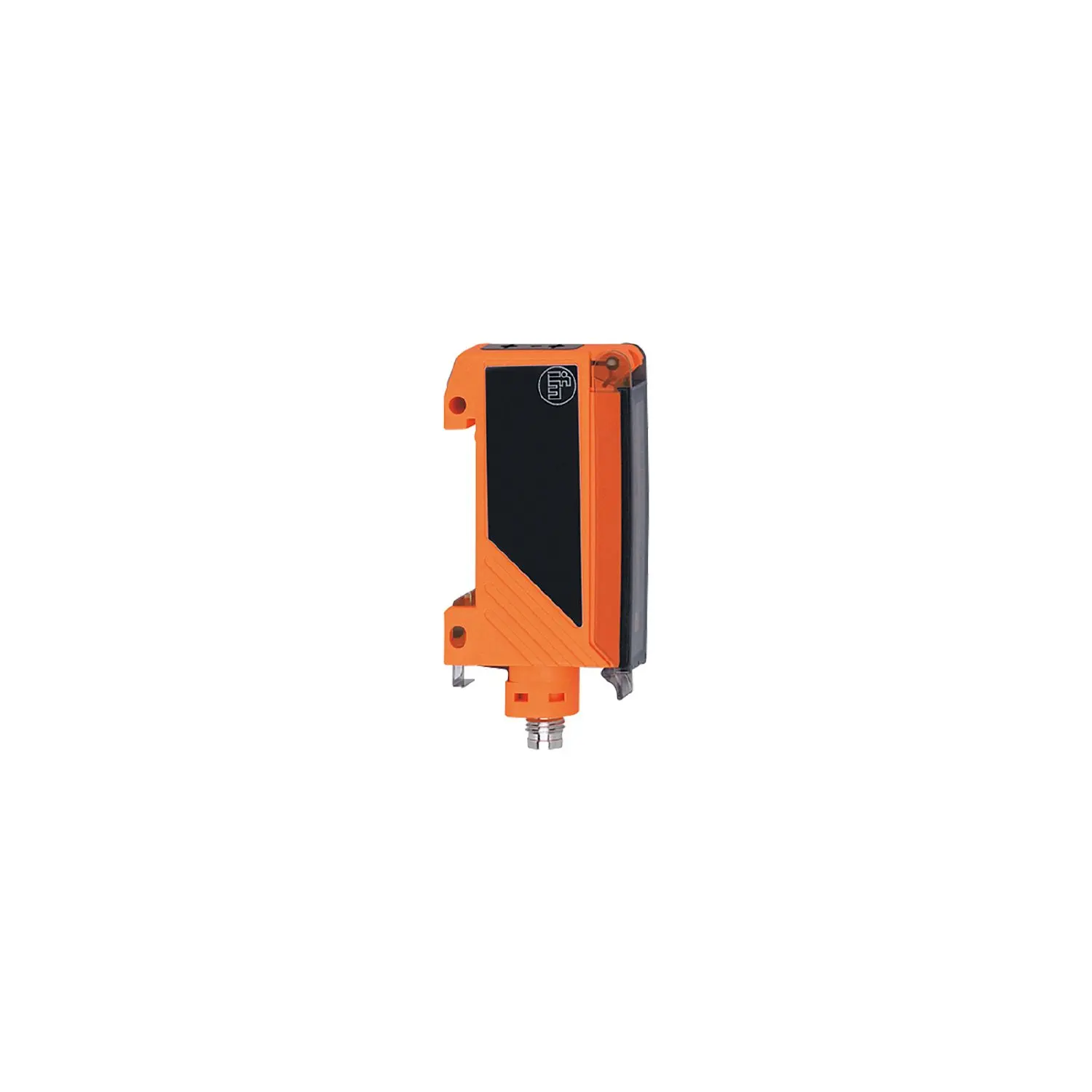

ifm Electronic OBF508 Fiberoptikverstärker

Product characteristics

• Type of light: red light
• Housing: rectangular

Application

• Design: Fibre-optic amplifiers for glass fibre optics, for fibre optics with metal sheath, FE/FT-50

Electrical data

• Operating voltage [V]: 10...30 DC
• Current consumption [mA]: < 50
• Protection class: III
• Reverse polarity protection: yes
• Type of light: red light

Outputs

• Electrical design: PNP/NPN; (automatic load detection PNP/NPN)
• Output function: light-on/dark-on mode; (programmable)
• Max. voltage drop switching output DC [V]: 2.5
• Permanent current rating of switching output DC [mA]: 100
• Switching frequency DC [Hz]: 1000
• Short-circuit protection: yes
• Type of short-circuit protection: pulsed
• Overload protection: yes
• Time function [s]: 0.001...0.09

Detection zone

• Range [m]: 0...1; (Through-beam sensor)
• Range [mm]: 0...150; (Diffuse reflection sensor)
• Factory setting: dark-on mode
• Range adjustable: yes

Operating conditions

• Ambient temperature [°C]: -25...60
• Protection: IP 65

Tests / approvals

• EMC: EN 60947-5-2,
• MTTF [years]: 837

Mechanical data

• Weight [g]: 47.8
• Housing: rectangular
• Dimensions [mm]: 36 x 15 x 60
• Materials: PPE modified
• Lens alignment: side lens

Displays / operating elements

• Display: switching status, 1 x LED, yellow
, operation, 1 x LED, green, unsafe zone, 1 x LED, red, excess gain, 4 x LED, green

Remarks

• Remarks: light-on mode corresponds to the NC output function for through-beam fibre optics
, corresponds to the NO output function for diffuse-reflection fibre optics, dark-on mode corresponds to the NO output function for through-beam fibre optics
