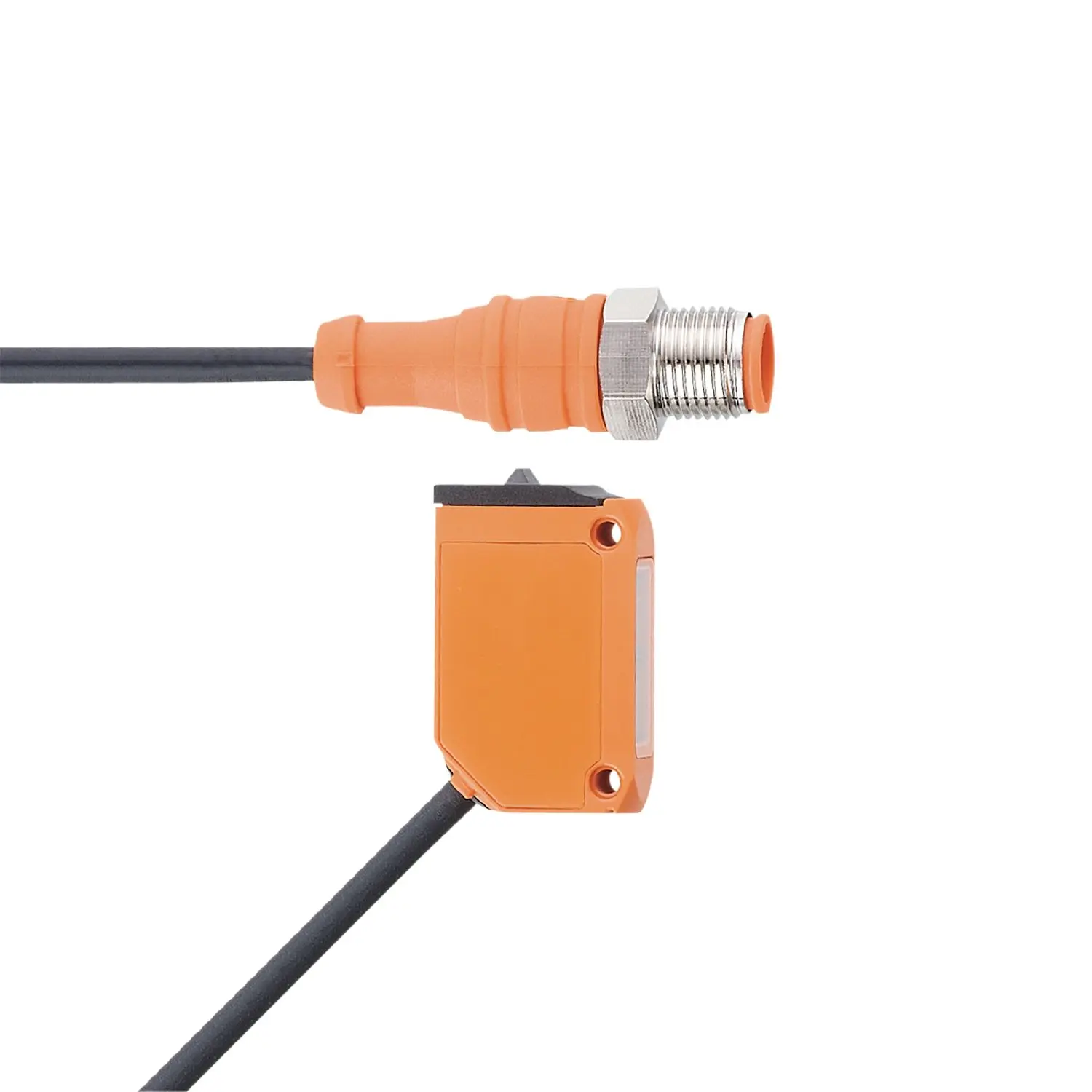

ifm Electronic O6S201 Einweglichtschranke Sender

Product characteristics

• Type of light: red light
• Housing: rectangular

Application

• Function principle: Through-beam sensor

Electrical data

• Operating voltage [V]: 10...30 DC
• Current consumption [mA]: 11; ((24 V))
• Protection class: III
• Type of light: red light
• Wave length [nm]: 633

Detection zone

• Transmitter / receiver: transmitter
• Range [m]: < 10
• Max. light spot diameter [mm]: 300
• Light spot dimensions refer to: at maximum range

Operating conditions

• Ambient temperature [°C]: -25...60
• Protection: IP 65; IP 67

Tests / approvals

• EMC: EN 60947-5-2,
• MTTF [years]: 2600
• UL approval: UL Approval no., E013

Mechanical data

• Weight [g]: 32.4
• Housing: rectangular
• Dimensions [mm]: 35.4 x 13 x 21
• Materials: housing: ABS; PPSU; Sealing: EPDM
• Lens material: PMMA
• Lens alignment: side lens
• Tightening torque [Nm]: 0.5

Displays / operating elements

• Display: operation, 1 x LED, green

Remarks

• Remarks: operating voltage "supply class 2" according to cULus
• Pack quantity: 1 pcs.

Electrical connection

• Connection: Cable: 0.3 m, PUR; 2 x 0.25 mm²
• Connection: Connector: 1 x M12; coding: A
