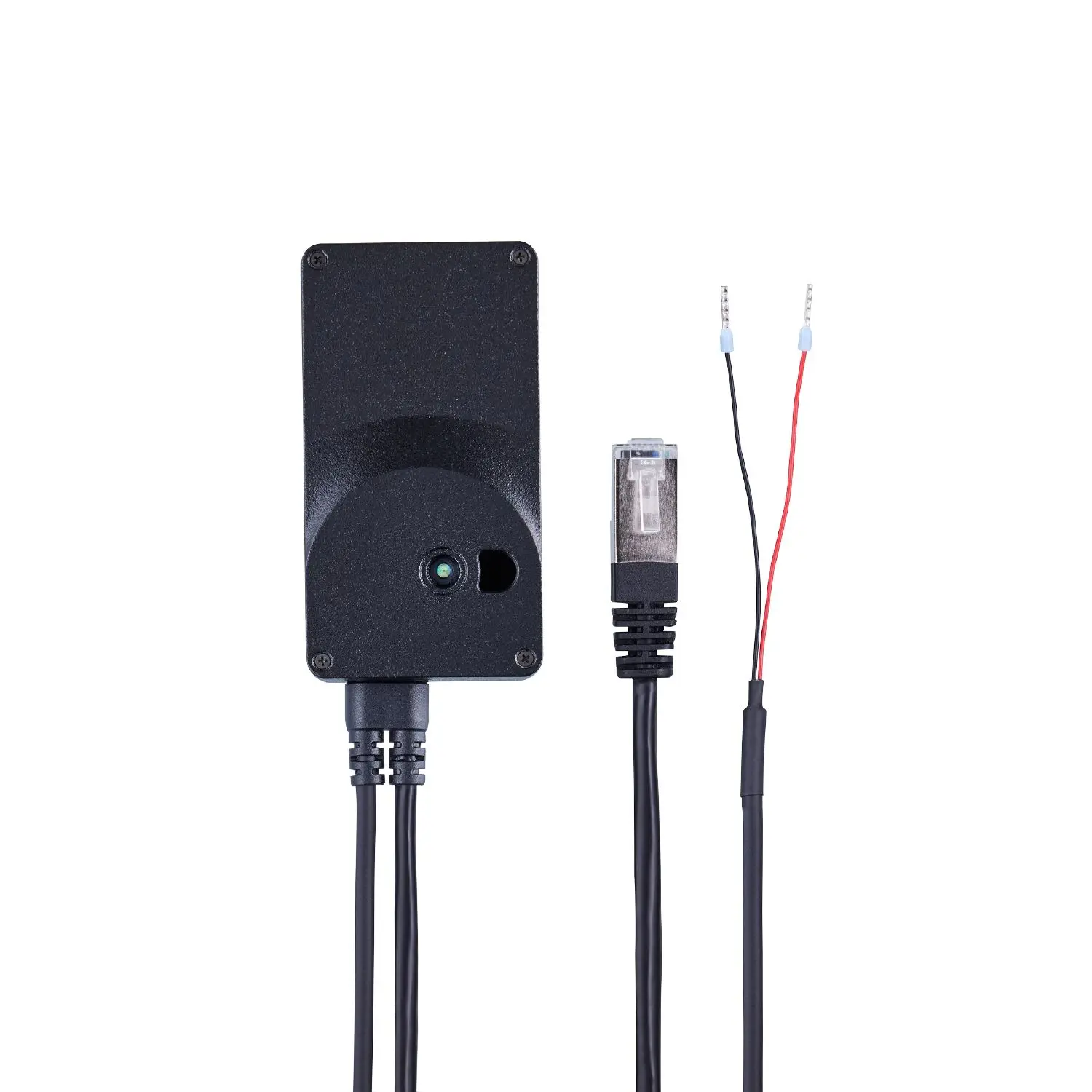

ifm Electronic O3X120 3D Kamera

Product characteristics

• Type of light: infrared light
• Image resolution 3D [px]: 224 x 172
• Angle of aperture 3D [°]: 58 x 44
• Max. reading rate [Hz]: 20

Application

• Application: output of 3D image data

Electrical data

• Operating voltage tolerance [%]: -15...20
• Operating voltage [V]: 24 DC
• Current consumption [mA]: < 170; (mean value at 24 VDC; peak current pulsed: <350)
• Power consumption [W]: 4
• Protection class: III
• Type of light: infrared light
• Wave length [nm]: 850
• Image sensor: PMD 3D ToF-Chip
• Internal lighting: yes; (infrared: 850 nm invisible radiation)

Detection zone

• Operating distance [mm]: 50...3000
• Note on operating distance: object size: 200 x 200 mm
, reflectivity: 18 %
• Image resolution 3D [px]: 224 x 172
• Angle of aperture 3D [°]: 58 x 44
• Max. reading rate [Hz]: 20

Measuring/setting range

• Measuring range [m]: < 30; (depending on settings, object size, and reflectivity)

Software / programming

• Parameter setting options: via PC with ifm Vision Assistant or XML-RPC

Interfaces

• Communication interface: Ethernet
• Usage type: parameter setting; data transmission
Ethernet
• Number of Ethernet interfaces: 1
• Transmission standard: 10Base-T; 100Base-TX
• Transmission rate: 10; 100
• Protocol: TCP/IP
• Factory settings: IP address: 192.168.0.69
, subnet mask: 255.255.255.0, gateway IP address: 192.168.0.201

Operating conditions

• Ambient temperature [°C]: -10...40
• Note on ambient temperature: Housing: < 45° C
, see operating instructions
• Storage temperature [°C]: -40...85
• Protection: IP 50
• Max. immunity to extraneous light [klx]: 8
