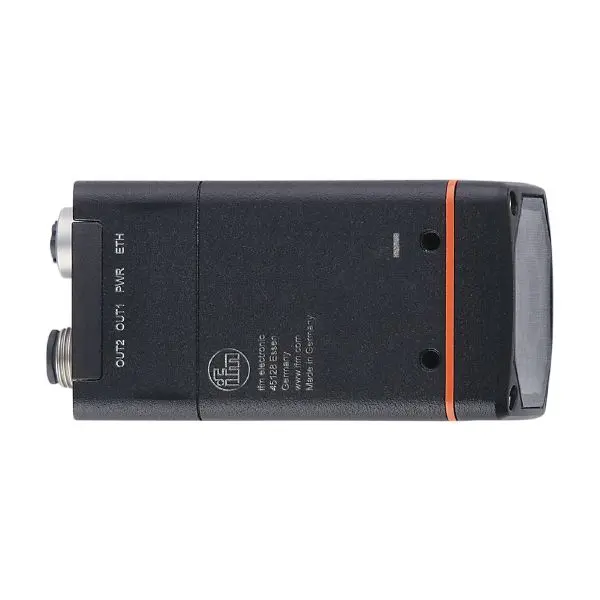

ifm Electronic O2I300 Codeleser 1D/2D

Product characteristics

• Type of light: red light
• Image resolution [px]: 640 x 480
• Max. reading rate [Hz]: 20

Electrical data

• Operating voltage tolerance [%]: 10
• Operating voltage [V]: 24 DC
• Current consumption [mA]: < 300
• Protection class: III
• Reverse polarity protection: yes
• Type of light: red light
• Wave length [nm]: 625
• Image sensor: CMOS image sensor black/white
• Internal lighting: yes; (red light: 625 nm 4 lighting segments individual control via PC operating program)
• Laser marking: yes; (red; Laser protection class 2 DIN EN 60825-1)

Inputs / outputs

• Number of inputs and outputs: Number of digital outputs: 2

Inputs

• Trigger: internal; 24 V PNP (IEC 61131-2 Typ 1); RS-232; TCP/IP; EtherNet/IP

Outputs

• Total number of outputs: 2
• Number of digital outputs: 2; (configurable)
• Output function: 24 V PNP
• Max. voltage drop switching output DC [V]: 2
• Max. current load per output [mA]: 100
• Short-circuit protection: yes
• Overload protection: yes

Detection zone

• Field of view size [mm]: Operating distance, field of view, Smallest detectable object, Resolution
, 50, 16 x 12, , , 100, 32 x 24, , , 200, 64 x 48, ,
• Operating distance [mm]: > 50
• Image resolution [px]: 640 x 480
• Lens type: standard
• Readable codes: Interleaved 2-of-5; Industrial 2-of-5; Code 39; Code 93; Code 128; Pharmacode; Codabar; EAN8; EAN8 Add-On 2; EAN8 Add-On 5; EAN13; EAN13 Add-On 2; EAN13 Add-On 5; UPC-A; UPC-A Add-On 2; UPC-A Add-On 5; UPC-E; UPC-E Add-On 2; UPC-E Add-On 5; GS1 DataBar Omnidirectional; GS1 DataBar Truncated; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; GS1 DataBar Limited; GS1 DataBar Expanded; GS1 DataBar Expanded Stacked; GS1 - 128; MSI Barcode; ECC200; PDF-417;
