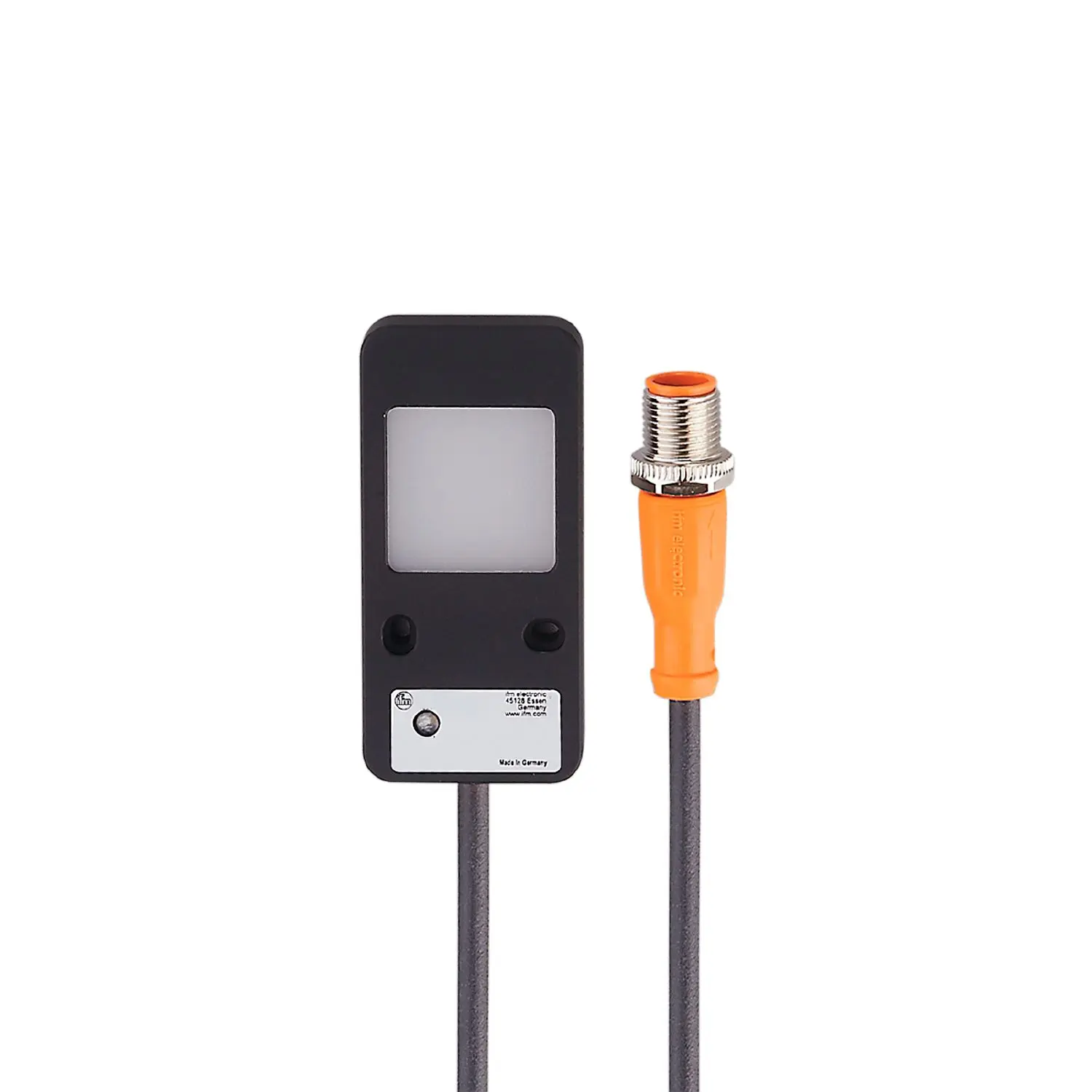

ifm Electronic O2D941 Externe Beleuchtung

Product characteristics

• Type of light: infrared light

Application

• Special feature: Gold-plated contacts
• Illuminated field [mm]: 25 x 25
• Design: backlight
• Type of operation: Permanent light or pulse operation

Electrical data

• Operating voltage tolerance [%]: -10...10
• Operating voltage [V]: 24 DC
• Current consumption [mA]: < 80
• Protection class: III
• Type of light: infrared light
• Wave length [nm]: 875

Inputs

• Trigger: 5...24 V

Operating conditions

• Ambient temperature [°C]: -10...50
• Protection: IP 54
• Overheat protection: yes; (> 50 °C)

Tests / approvals

• Photobiological safety: exempt group; (EN 62471)
• MTTF [years]: 310

Mechanical data

• Weight [g]: 160.4
• Dimensions [mm]: 70.5 x 33.4 x 9.5
• Materials: aluminium
• Lens material: glass

Displays / operating elements

• Display: illumination status, 1 x LED, yellow
, operation, 1 x LED, green, excess temperature / overload, 1 x LED, red

Remarks

• Pack quantity: 1 pcs.

Electrical connection

• Connection: Cable: 0.30 m, PUR
• Connection: Connector: 1 x M12; coding: A; Contacts: gold-plated

O2D941-00 — 14.09.2020 —
