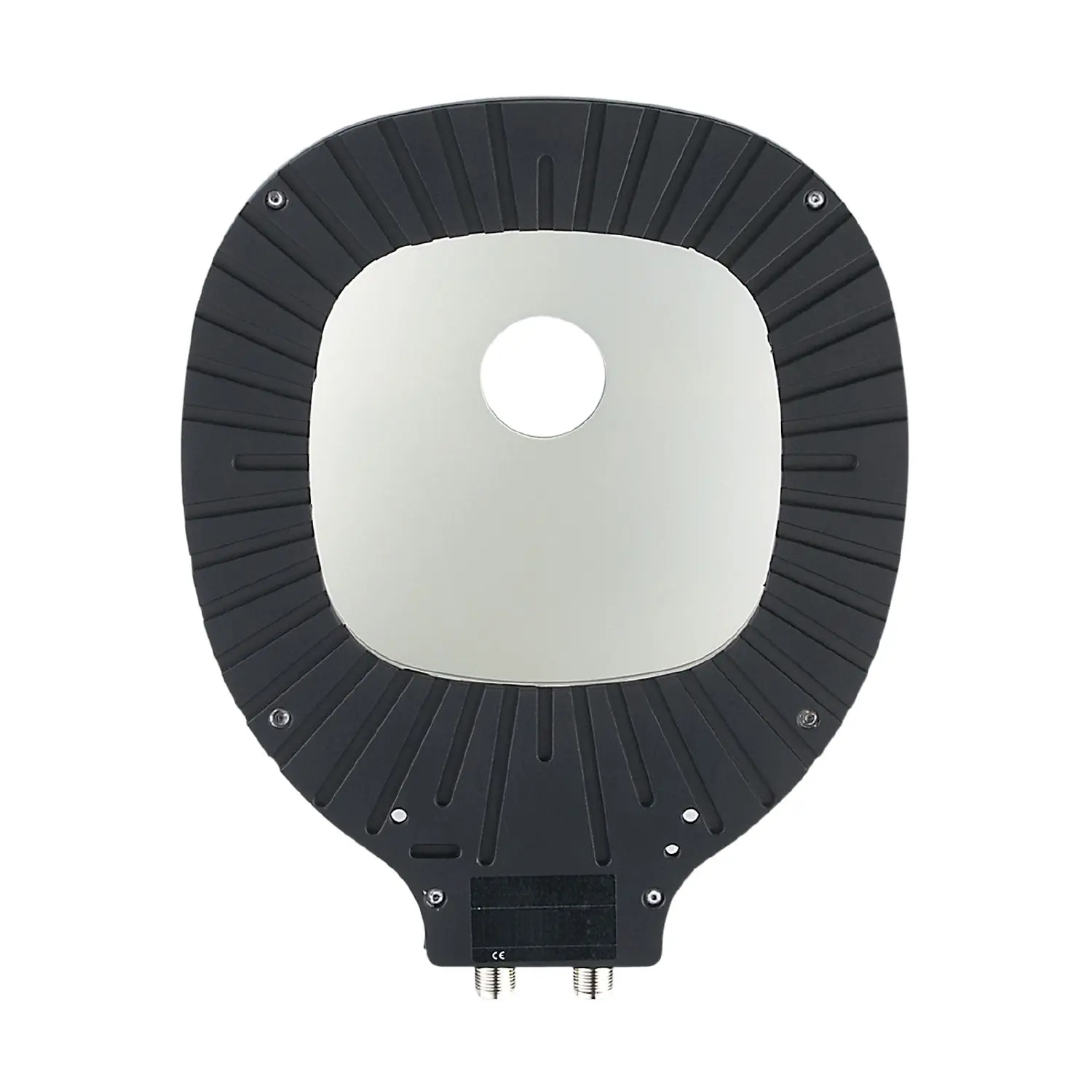

ifm Electronic O2D933 Externe Beleuchtung

Product characteristics

• Type of light: red light; cyan light

Application

• Illuminated field [mm]: 130 x 130
• Design: Dome
• Type of operation: normal light intensity (permanent operation possible); High light intensity (pulsed)

Electrical data

• Operating voltage [V]: 24 DC
• Current consumption [mA]: operating mode "permanent operation": 460; operating mode "high light intensity": 3420
• Protection class: III; (PELV)
• Type of light: red light; cyan light

Inputs / outputs

• Number of inputs and outputs: Number of digital inputs: 1

Inputs

• Trigger: 24 V PNP/NPN; external
• Number of digital inputs: 1

Operating conditions

• Ambient temperature [°C]: -10...40
• Storage temperature [°C]: -20...60
• Protection: IP 65

Tests / approvals

• Photobiological safety: risk group 1; (DIN EN 62471)

Mechanical data

• Weight [g]: 817.35
• Dimensions [mm]: 256.8 x 197 x 106.7
• Materials: housing: aluminium black anodised; Cover: ABS
• Tightening torque [Nm]: 0.5...1.5

Displays / operating elements

• Display: operation, 1 x LED, green
, operating mode "high light intensity", 1 x LED, red, LED segment, 1 x LED, white

Remarks

• Pack quantity: 1 pcs.

Electrical connection - parameter setting

• : Connector: M12; coding: A

Electrical connection - power supply

• : Connector: M12; coding: A
