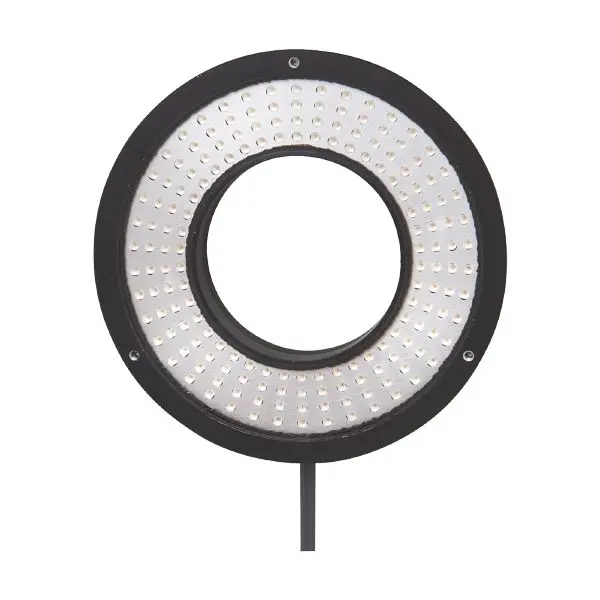

ifm Electronic O2D920 Externe Beleuchtung

Product characteristics

• Type of light: red light

Application

• Illuminated field [mm]: Ø 90
• Design: dark field
• Type of operation: pulsed or permanent operation

Electrical data

• Operating voltage [V]: 24 DC
• Current consumption [mA]: 400
• Type of light: red light
• Wave length [nm]: 617

Inputs

• Trigger: 24 V PNP

Operating conditions

• Ambient temperature [°C]: -10...55
• Storage temperature [°C]: -25...75
• Protection: IP 54
• Overheat protection: yes; (deactivation at 65...75 °C)

Tests / approvals

• Photobiological safety: exempt group; (DIN EN 62471:2008)

Mechanical data

• Weight [g]: 369
• Dimensions [mm]: 155 x 130 x 9.8
• Materials: aluminium black anodised
• Lens material: glass

Displays / operating elements

• Display: , combined LED, three-colour
, illumination status, yellow, operation, green, excess temperature, red

Remarks

• Pack quantity: 1 pcs.

Electrical connection

• Connection: Cable: 0.3 m, PUR, black; 4 x 0.34 mm²
• Connection: Connector: 1 x M12; coding: A

O2D920-00 — 30.08.2013 —
