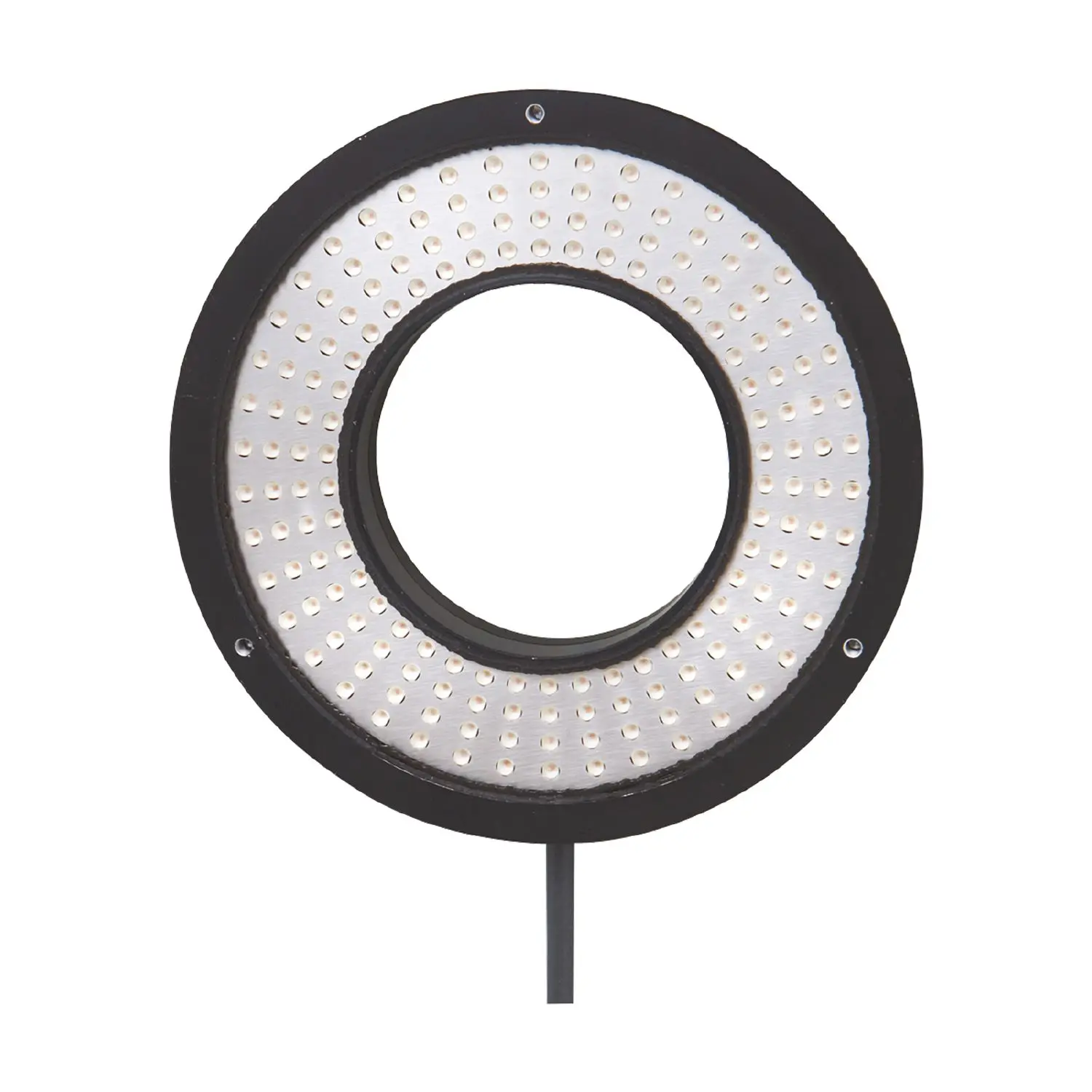

ifm Electronic O2D919 Externe Beleuchtung

Product characteristics

• Type of light: white light

Application

• Illuminated field [mm]: Ø 106 / Ø 66; (external / internal)
• Design: ring
• Type of operation: high light intensity (pulsed, permanent operation with cooling only); normal light intensity (permanent operation possible)

Electrical data

• Operating voltage [V]: 24 DC
• Current consumption [mA]: operating mode "permanent operation": 800; operating mode "high light intensity": 1200
• Type of light: white light
• Colour temperature [K]: 5600

Inputs

• Trigger: 24 V PNP

Detection zone

• Angle of aperture cylindrical [°]: 120

Operating conditions

• Ambient temperature [°C]: -10...55
• Storage temperature [°C]: -25...75
• Protection: IP 65
• Overheat protection: yes; (deactivation at 65...75 °C)

Tests / approvals

• Photobiological safety: exempt group; (DIN EN 62471:2008)

Mechanical data

• Weight [g]: 488
• Dimensions [mm]: Ø 122 / L = 20.5
• Materials: aluminium black anodised
• Lens material: glass

Displays / operating elements

• Display: , combined LED, three-colour
, illumination status, yellow, operation, green, excess temperature, red

Remarks

• Pack quantity: 1 pcs.

Electrical connection

• Connection: Cable: 0.3 m, PUR, black; 4 x 0.34 mm²
• Connection: Connector: 1 x M12; coding: A

O2D919-00 — 30.07.2013 —
