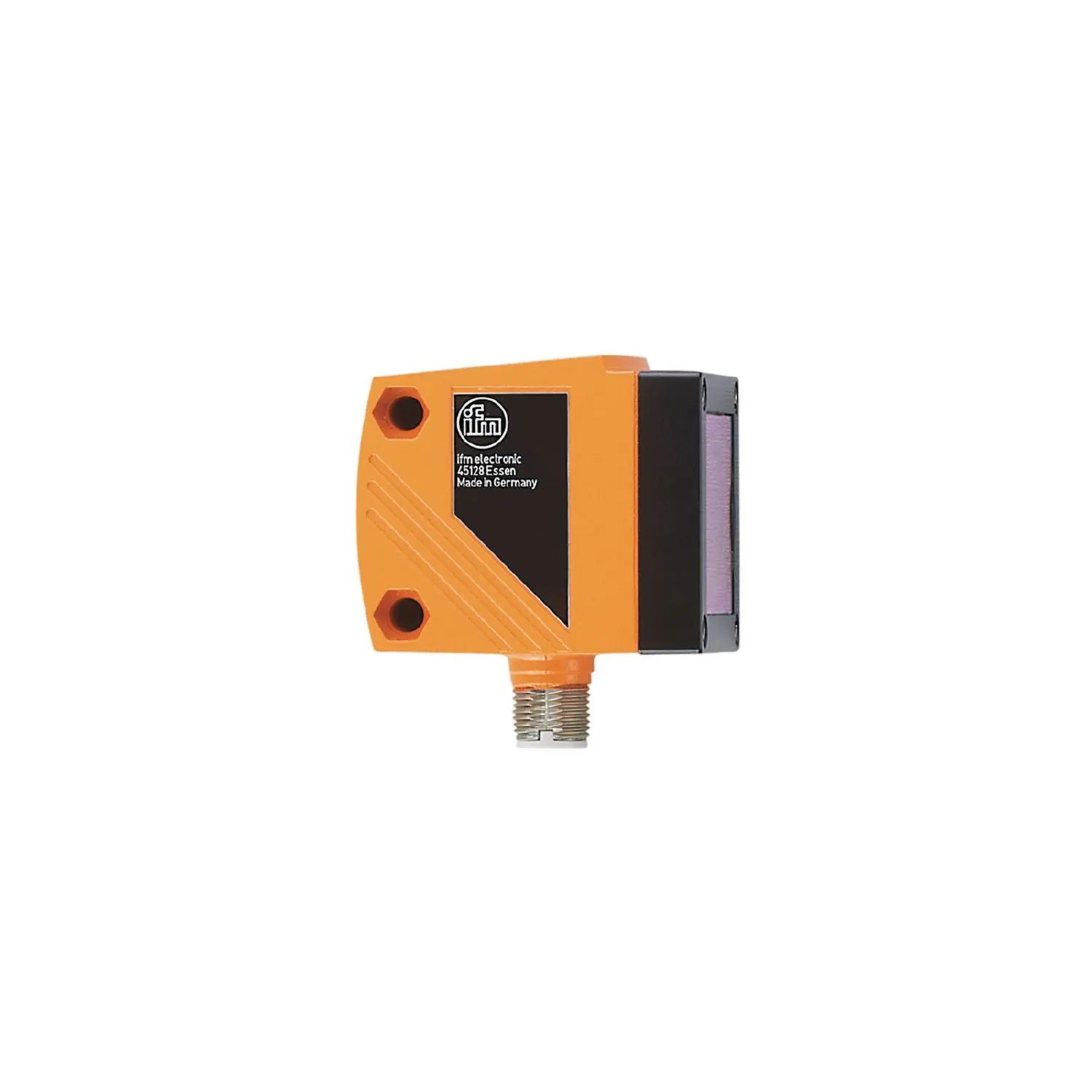

ifm Electronic O1D110 Optischer Abstandssensor

Product characteristics

• Laser protection class: 2
• Housing: rectangular

Electrical data

• Operating voltage [V]: 18...30 DC; ("supply class 2" to cULus)
• Current consumption [mA]: < 150
• Protection class: III
• Reverse polarity protection: yes
• Typ. lifetime [h]: 50000

Inputs / outputs

• Number of inputs and outputs: Number of digital outputs: 2; Number of analogue outputs: 1

Outputs

• Total number of outputs: 2
• Electrical design: PNP
• Number of digital outputs: 2
• Output function: normally open / normally closed; (programmable)
• Max. current load per output [mA]: 200
• Number of analogue outputs: 1
• Analogue current output [mA]: 4...20; (scalable IEC 61131-2)
• Max. load [Ω]: 250
• Analogue voltage output [V]: 0...10; (scalable IEC 61131-2)
• Min. load resistance [Ω]: 5000
• Short-circuit protection: yes
• Type of short-circuit protection: pulsed
• Overload protection: yes

Detection zone

• Max. light spot width [mm]: 15
• Max. light spot height [mm]: 15
• Light spot dimensions refer to: 10 m
• Background suppression [m]: 10...100

Measuring/setting range

• Measuring range [m]: 0.2...10; (white paper 200 x 200 mm 90% remission)
• Sampling rate [Hz]: 1...33

Interfaces

• Communication interface: IO-Link
• Transmission type: COM2 (38,4 kBaud)
• IO-Link revision: 1.1
• SDCI standard: IEC 61131-9
• Profiles: Smart Sensor: Device Identification; Device Diagnosis; Device Teach Channel; Binary Data Channel; Process Data Variable
• SIO mode: yes
• Required master port type: A
• Process data analogue: 2
• Process data binary: 2
• Min. process cycle time [ms]: 6
• Supported DeviceIDs:
  • Type of operation, DeviceID: default, 1547
