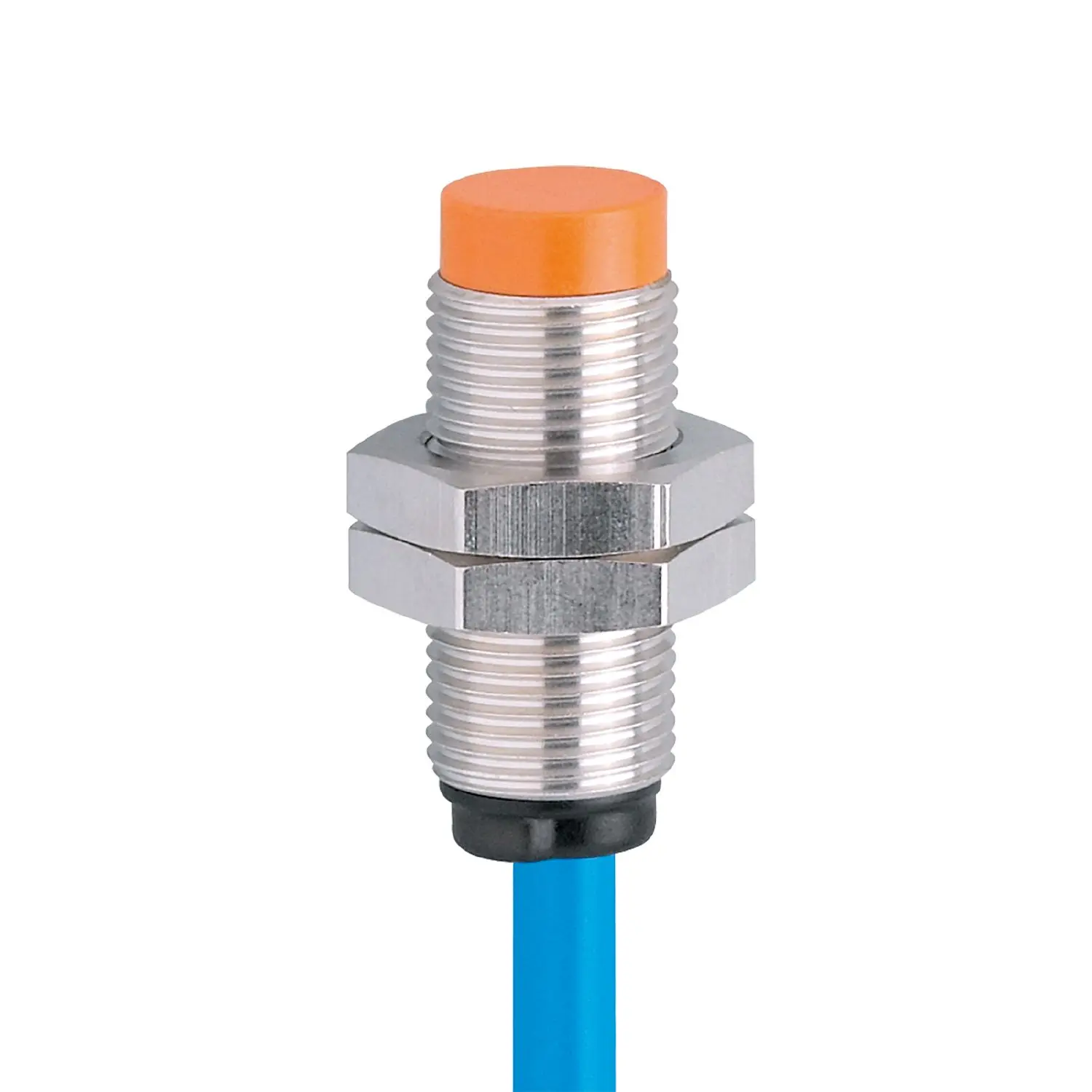

ifm Electronic NF5023 Induktiver NAMUR Sensor

Product characteristics

• Electrical design: NAMUR
• Output function: normally closed
• Sensing range [mm]: 4
• Housing: threaded type
• Dimensions [mm]: M12 x 1 / L = 30

Electrical data

• Connection to switching amplifiers: yes
• Switching amplifiers: connection to certified intrinsically safe circuits with the max. values: U = 15 V / I = 50 mA / P = 120 mW
• Nominal voltage DC [V]: 8.2; (1kΩ)
• Supply voltage DC [V]: 7.5...30; (when used outside the hazardous area)
• Current consumption [mA]: < 1; (disabled; conductive: > 2,1)
• Protection class: III

Outputs

• Electrical design: NAMUR
• Output function: normally closed
• Permanent current rating of switching output DC [mA]: 30; (when used outside the hazardous area)
• Switching frequency DC [Hz]: 1500

Detection zone

• Sensing range [mm]: 4
• Real sensing range Sr [mm]: 4 ± 10 %

Accuracy / deviations

• Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
• Hysteresis [% of Sr]: 1...15
• Switch point drift [% of Sr]: -10...10

Operating conditions

• Ambient temperature [°C]: -20...80
• Protection: IP 67

Tests / approvals

• Approval: PTB 01 ATEX 2191; BVS 04 ATEX E 153 X; IECEX BVS 06.0003X; TIIS TC16107
• ATEX marking: II 1G Ex ia IIC T6 Ga Ta -20...70°C
• : II 1G Ex ia IIC T5 Ga Ta -20...80°C
• : II 1D Ex ia IIIC T20090°C Da Ta: -20...70°C
• : II 1D Ex ia IIIC T200100° C Da Ta: -20...80°C
• EMC: EN 60947-5-6,
• Shock/vibration resistance: 30 g (11 ms) / 10-55 Hz (1 mm)
• MTTF [years]: 4736

Safety classification

• Max. internal capacitance [nF]: 143
• Max. internal inductance [µH]: 147

Mechanical data

• Weight [g]: 653
• Housing: threaded typ
