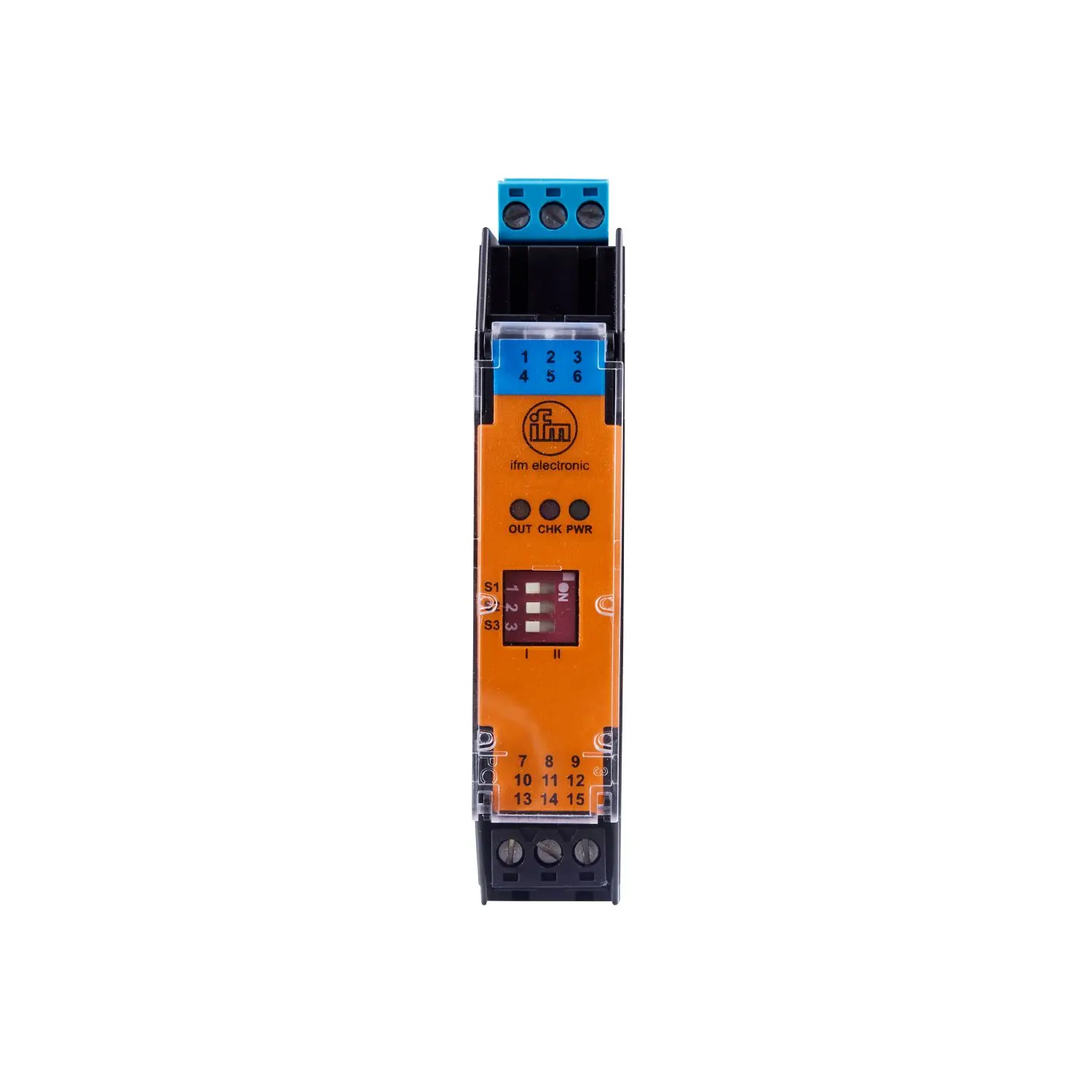

ifm Electronic N0537A Trennschaltverstärker für Namur Sensoren

Product characteristics

• Number of inputs and outputs: Number of digital outputs: 2

Application

• Application: short-circuit monitoring; Wire monitoring

Electrical data

• Operating voltage tolerance [%]: -15...25
• Operating voltage [V]: 24 DC
• Current consumption [mA]: < 50
• Number of channels: 1

Inputs / outputs

• Number of inputs and outputs: Number of digital outputs: 2

Outputs

• Electrical design: PNP
• Number of digital outputs: 2
• Max. voltage drop switching output DC [V]: 3.5
• Max. current load per output [mA]: 100
• Switching frequency DC [Hz]: 5000
• Short-circuit proof: yes

Operating conditions

• Ambient temperature [°C]: -20...60
• Protection: IP 20

Tests / approvals

• Approval: FIDI 20 ATEX 0022X; IECEx FIDI 20.0003X
• ATEX marking: II 3 (1) G Ex nA [ia Ga] IIC T4 Gc
• : II (1) D [Ex ia Da] IIIC
• : I (M1) [Ex ia Ma] I
• EMC: NE 21, (2012)
, EN 61326-3-2, (2008)
• MTTF [years]: 345

Mechanical data

• Weight [g]: 180.4

Displays / operating elements

• Display: switching status, LED, yellow
, operation, LED, green, function, LED, red

Remarks

• Remarks: Caution The switching amplifier has to be mounted according to the requirements of the operating instructions
, Free terminals must not be used.
• Pack quantity: 1 pcs.

Electrical connection

• Connection: terminals: ...2.5 mm²
