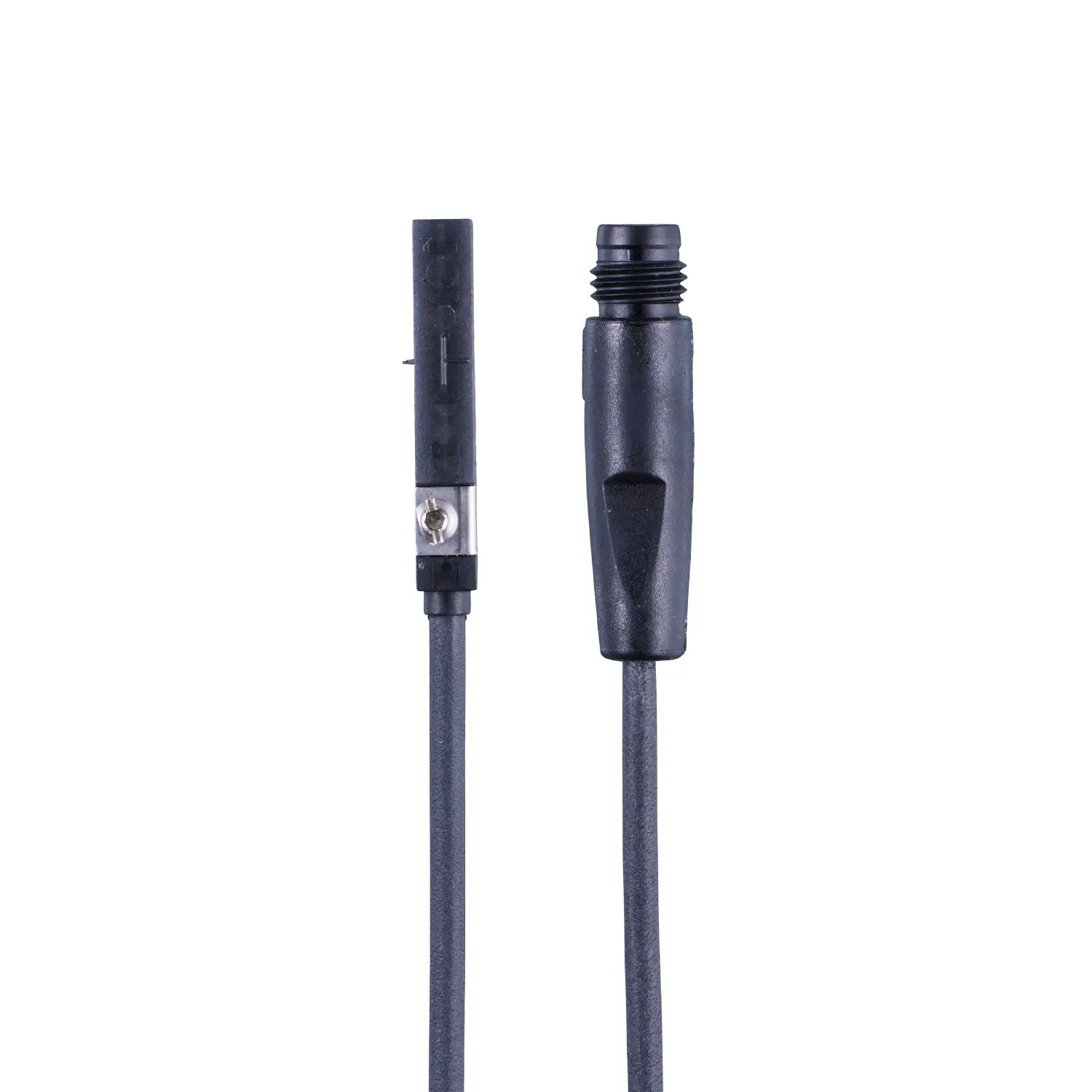

ifm Electronic MK5905 Zylindersensor mit IO Link

Product characteristics

• Electrical design: PNP/NPN; (parameterisable)
• Output function: normally open / normally closed; (parameterisable)
• Communication interface: IO-Link

Application

• Operating principle: Hall sensor; (3D function)

Electrical data

• Operating voltage [V]: 10...30 DC; ("supply class 2" to cULus)
• Current consumption [mA]: < 20
• Protection class: III
• Reverse polarity protection: yes
• Max. power-on delay time [ms]: 300

Inputs / outputs

• Number of inputs and outputs: Number of digital outputs: 1

Outputs

• Output signal: switching signal; IO-Link
• Electrical design: PNP/NPN; (parameterisable)
• Number of digital outputs: 1
• Output function: normally open / normally closed; (parameterisable)
• Max. voltage drop switching output DC [V]: 2.5
• Max. leakage current [mA]: 0.5
• Permanent current rating of switching output DC [mA]: 100
• Switching frequency DC [Hz]: 200
• Type of short-circuit protection: pulsed
• Short-circuit proof: yes
• Overload protection: yes

Detection zone

• Measuring range [mm]: 50; (depending on the application)
• Min. field strength [mT]: 1

Accuracy / deviations

• Hysteresis [mm]: 1.25; (parameterisable)
• Repeatability [mm]: < 0.2
• Linearity error IO-Link [%]: < 5
• Resolution [mm]: 0,01; (depending on the application)

Software / programming

• Parameter setting options: switch points; counter function; diagnostic function

Interfaces

• Communication interface: IO-Link
• Transmission type: COM2 (38,4 kBaud)
• IO-Link revision: 1.1.3
• SDCI standard: IEC 61131-9 CDV
• Profiles:
  • Function class, Designation: 0x0010, Measuring and Switching Sensor, 1 channel / SSP 4.1.1
  , 0x4
