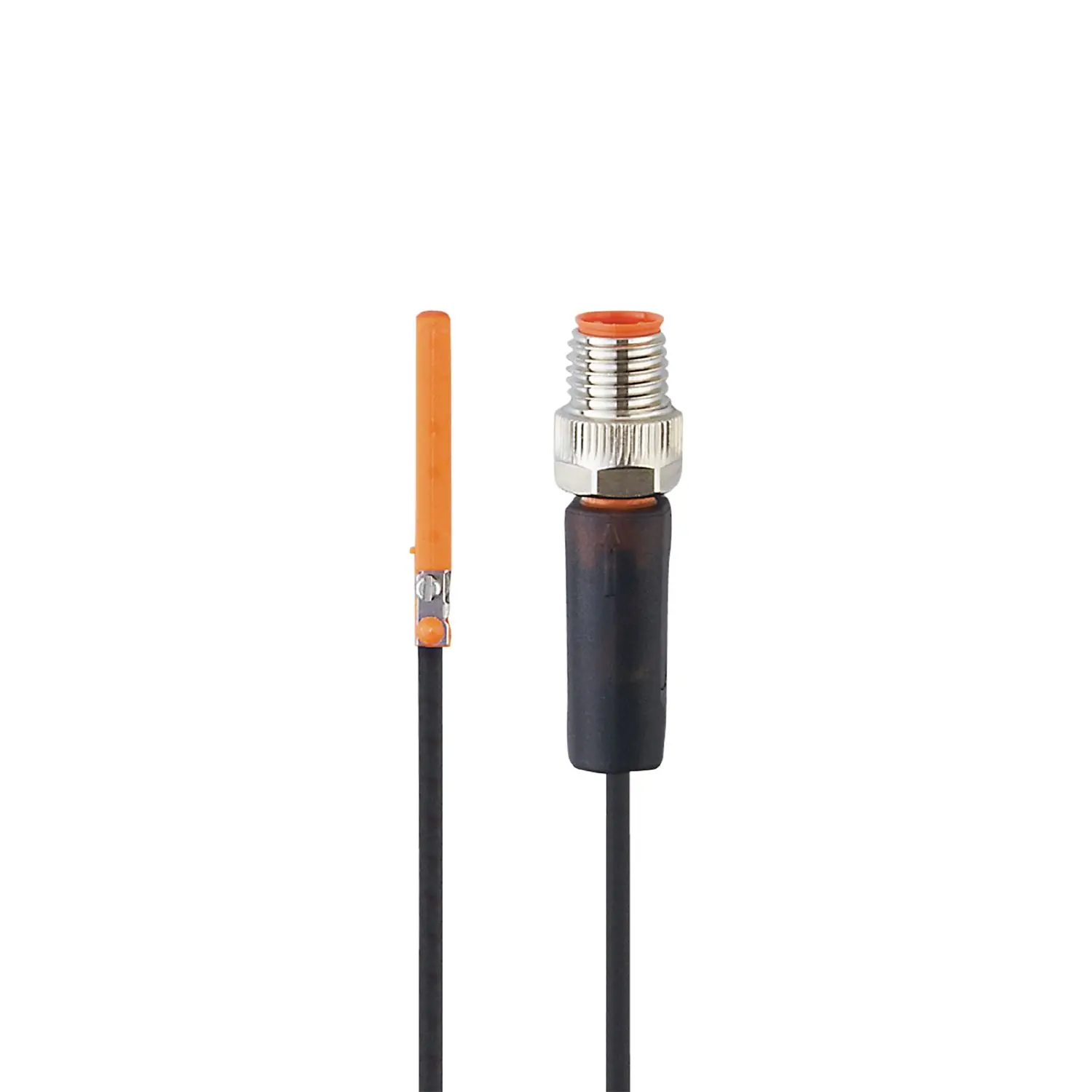

ifm Electronic MK5335 C Nut Zylindersensor

Product characteristics

• Electrical design: PNP
• Output function: normally open
• Dimensions [mm]: 26.1 x 2.8 x 5.5

Electrical data

• Operating voltage [V]: 10...30 DC
• Current consumption [mA]: < 10
• Protection class: III
• Reverse polarity protection: yes
• Max. power-on delay time [ms]: 30

Outputs

• Electrical design: PNP
• Output function: normally open
• Max. voltage drop switching output DC [V]: 2.5
• Permanent current rating of switching output DC [mA]: 100
• Switching frequency DC [Hz]: 10000
• Short-circuit protection: yes
• Overload protection: yes

Detection zone

• Response sensitivity [mT]: 2.8
• Travel speed [m/s]: > 10

Accuracy / deviations

• Hysteresis [mm]: 1.5
• Repeatability [mm]: < 0.2

Operating conditions

• Ambient temperature [°C]: -25...85
• Protection: IP 65; IP 67

Tests / approvals

• EMC: EN 61000-4-2 ESD, - CD / 8 kV AD
, EN 61000-4-3 HF radiated, 10 V/m, EN 61000-4-4 Burst, 2 kV, EN 61000-4-6 HF conducted, 10 V, EN 55011, class B
• MTTF [years]: 3731
• UL approval: UL Approval no., C008

Mechanical data

• Weight [g]: 24.2
• Mounting: flush mountable
• Type of mounting: clamping screws with head for slotted screwdriver
• Cylinder type: C-slot cylinders
• Dimensions [mm]: 26.1 x 2.8 x 5.5
• Materials: housing: PA; fastening clamp: stainless steel

Displays / operating elements

• Display: switching status, 1 x LED, yellow

Remarks

• Pack quantity: 1 pcs.

Electrical connection - plug

• Connection: Cable: 2 m, PUR
• Connection: Connector: 1 x M8; coding: A; Locking: knurled nut, rotatable

MK5335-01 — 13.04.2023 —
