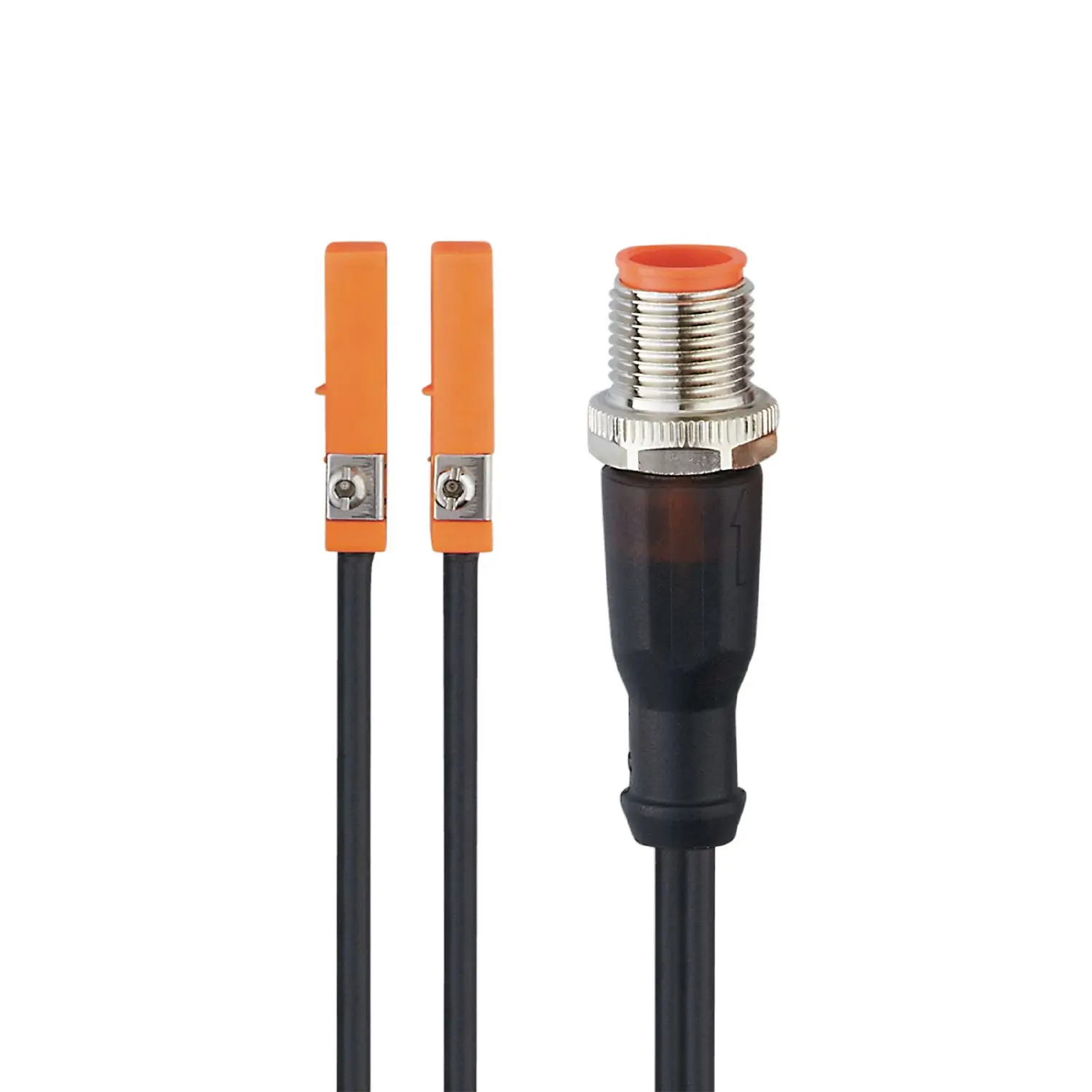

ifm Electronic MK5209 T Nut Zylindersensor

Product characteristics

• Electrical design: PNP
• Output function: 2 x normally open
• Dimensions [mm]: 25 x 5 x 6.5

Electrical data

• Operating voltage [V]: 10...30 DC; ("supply class 2" to cULus)
• Current consumption [mA]: < 10
• Protection class: III
• Reverse polarity protection: yes
• Max. power-on delay time [ms]: 30

Outputs

• Electrical design: PNP
• Output function: 2 x normally open
• Max. voltage drop switching output DC [V]: 2.5
• Permanent current rating of switching output DC [mA]: 100
• Switching frequency DC [Hz]: 6000
• Short-circuit protection: yes
• Type of short-circuit protection: pulsed
• Overload protection: yes

Detection zone

• Response sensitivity [mT]: 2
• Travel speed [m/s]: > 10

Accuracy / deviations

• Hysteresis [mm]: < 1
• Repeatability [mm]: < 0.2

Operating conditions

• Ambient temperature [°C]: -25...85
• Protection: IP 65; IP 67

Tests / approvals

• EMC: EN 61000-4-2 ESD, - CD / 8 kV AD
, EN 61000-4-3 HF radiated, 10 V/m, EN 61000-4-4 Burst, 2 kV, EN 61000-4-6 HF conducted, 10 V, EN 55011, class B
• MTTF [years]: 1032
• UL approval: Ta, -25...75 °C
, Enclosure type, Type 1 , power supply, Limited Voltage/Current (Marking Class 2) , File number UL, E174191

Mechanical data

• Weight [g]: 27
• Mounting: flush mountable
• Type of mounting: fastening clamp with combined slot / hexagon socket, width across flats 1.5
• Cylinder type: T-slot cylinders
• Dimensions [mm]: 25 x 5 x 6.5
• Materials: housing: PA; fastening clamp: stainless steel

Displays / operating elements

• Display: switching status, 1 x LED, yellow

Accessories

• Items supplied: rubber placeholder:
