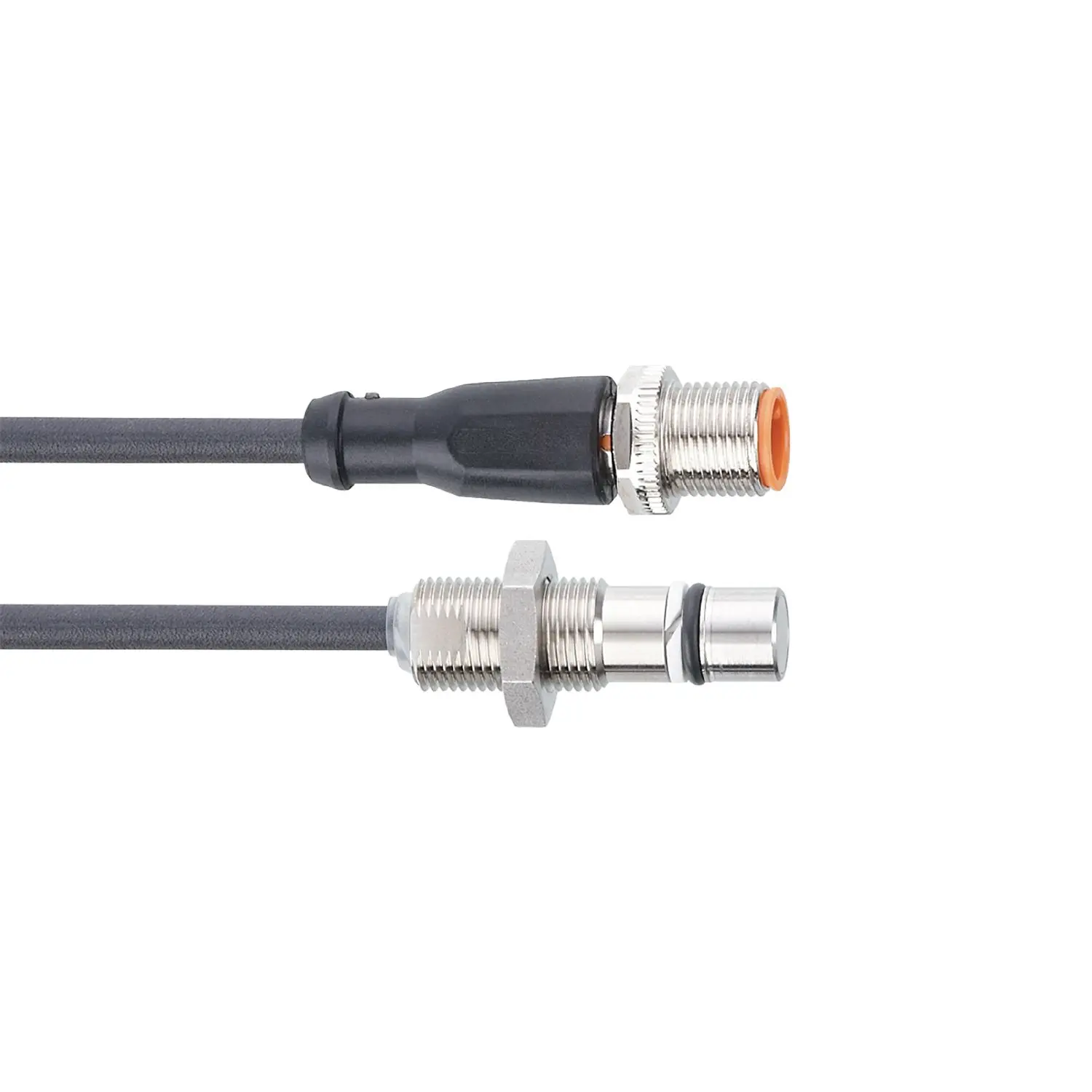

ifm Electronic MFH215 Zylindersensor

Product characteristics

• Electrical design: PNP
• Output function: normally open
• Sensing range [mm]: 1.8
• Housing: threaded type
• Dimensions [mm]: M12 x 1 / L = 41

Application

• Special feature: Full-metal housing
• Application: hydraulic cylinders
• Media: detects ferrous metals
• Min. bursting pressure [bar]: 2000
• Pressure rating [bar]: 500

Electrical data

• Operating voltage [V]: 10...36 DC
• Current consumption [mA]: < 23
• Protection class: III
• Reverse polarity protection: yes

Outputs

• Electrical design: PNP
• Output function: normally open
• Max. voltage drop switching output DC [V]: 1.6
• Max. leakage current [mA]: 0.1
• Permanent current rating of switching output DC [mA]: 200
• Switching frequency DC [Hz]: 1000
• Short-circuit protection: yes
• Overload protection: yes

Detection zone

• Sensing range [mm]: 1.8

Accuracy / deviations

• Hysteresis [% of Sr]: < 15
• Switch point drift [% of Sr]: 10
• Repeatability [% of Sr]: 10

Operating conditions

• Pressure peak [bar]: 1000
• Ambient temperature [°C]: -25...85
• Protection: IP 65; IP 68; IP 69K

Tests / approvals

• EMC: EN 61000-4-2 ESD, 4 kV CD / 8 kV AD
, EN 61000-4-3 HF radiated, 10 V/m, EN 61000-4-4 Burst, 2 kV, EN 61000-4-6 HF conducted, 10 V, EN 55011, class B, DIN ISO 11452-5, 100 V/m
• Vibration resistance: EN 60068-2-6 Fc, 20 g 50 sweep cycles, 1 octave per minute, in 3 axes / 10...3000 Hz -20...50 °C
• Shock resistance: EN 60068-2-27 Ea, 100 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes / -40...85 °C
• Continuous shock resistance: EN 60068-2-27 Ea, 40 g 6 ms; 4000 shocks each in every direction of the 3 coordinate axes / -20...5
