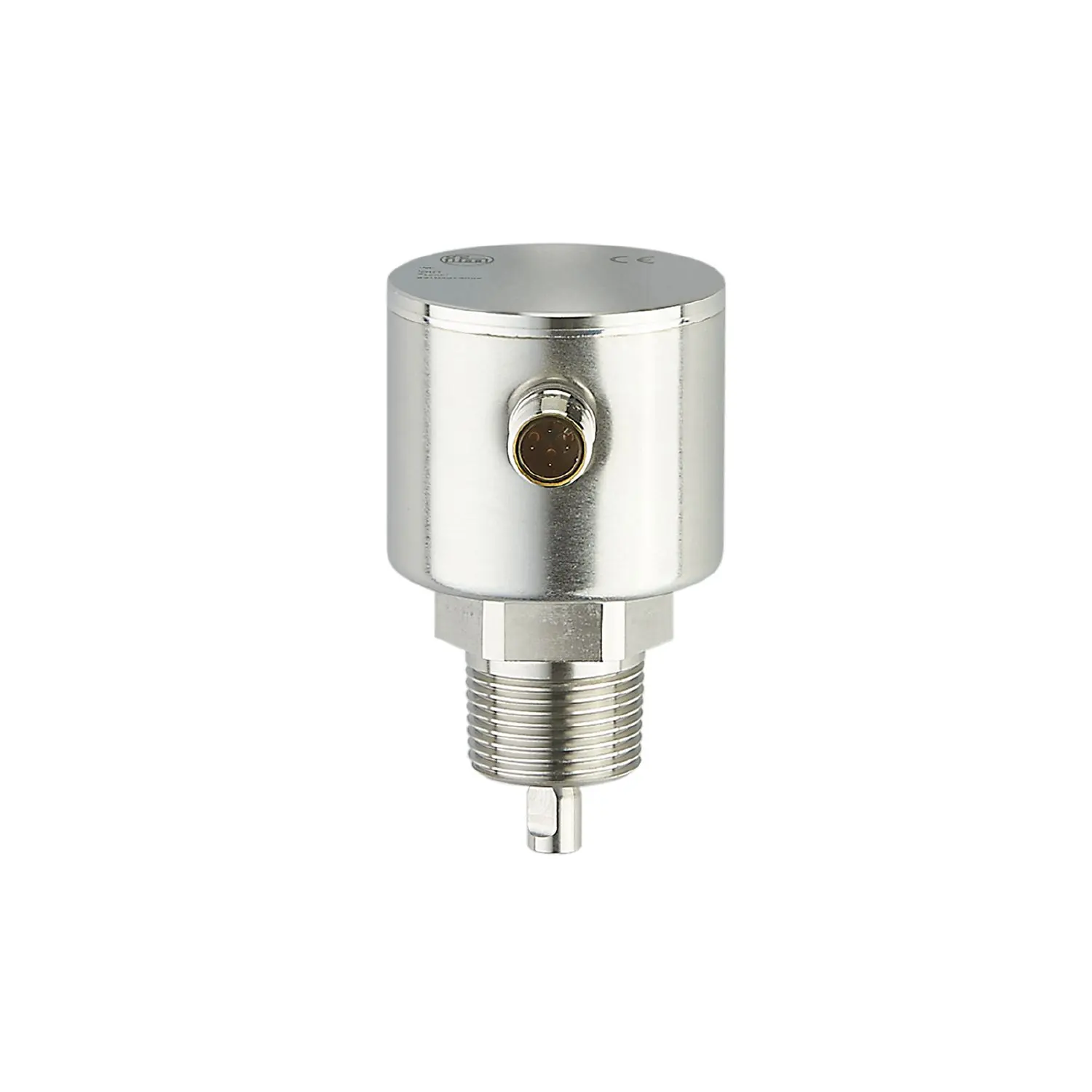

ifm Electronic LR8320 Kontinuierlicher Füllstandsensor (geführte Mikrowelle)

Product characteristics

• Number of inputs and outputs: Number of digital outputs: 4
• Probe length L [mm]: 100...2000
• Process connection: threaded connection 3/4" NPT external thread

Application

• Special feature: Gold-plated contacts
• Application: for industrial applications
• Media: Liquids
• Dielectric constant of the medium: > 5
• Recommended media: water; hydrous media
• Process temperature [°C]: -25...80; (90 < 1 h ; see note under remarks)
• Pressure rating [bar]: 16
• Vacuum resistance [mbar]: -1000

Electrical data

• Operating voltage [V]: 18...30 DC
• Current consumption [mA]: < 25
• Protection class: III
• Reverse polarity protection: yes
• Power-on delay time [s]: < 3
• Measuring principle: guided wave radar

Inputs / outputs

• Number of inputs and outputs: Number of digital outputs: 4

Outputs

• Total number of outputs: 4
• Output signal: switching signal; IO-Link
• Electrical design: PNP/NPN
• Number of digital outputs: 4
• Output function: normally open / normally closed; (parameterisable)
• Max. voltage drop switching output DC [V]: 2.5
• Permanent current rating of switching output DC [mA]: 200
• Short-circuit protection: yes
• Type of short-circuit protection: pulsed
• Overload protection: yes

Measuring/setting range

• Probe length L [mm]: 100...2000
• Active range A [mm]: L-40
• Inactive range I1 / I2 [mm]: 30 / 10
• Sampling rate [Hz]: 4
Setting range
• Set point SP [mm]: 15...L-30
• Reset point rP [mm]: 10... L-35
• In steps of [mm]: 5
• Hysteresis [mm]: > 5

Accuracy / deviations

• Repeatability [mm]: 5
• Measuring error [mm]: ± 7
• Offset error [mm]: 5
• Resolution [mm]: 1
• Temperat
