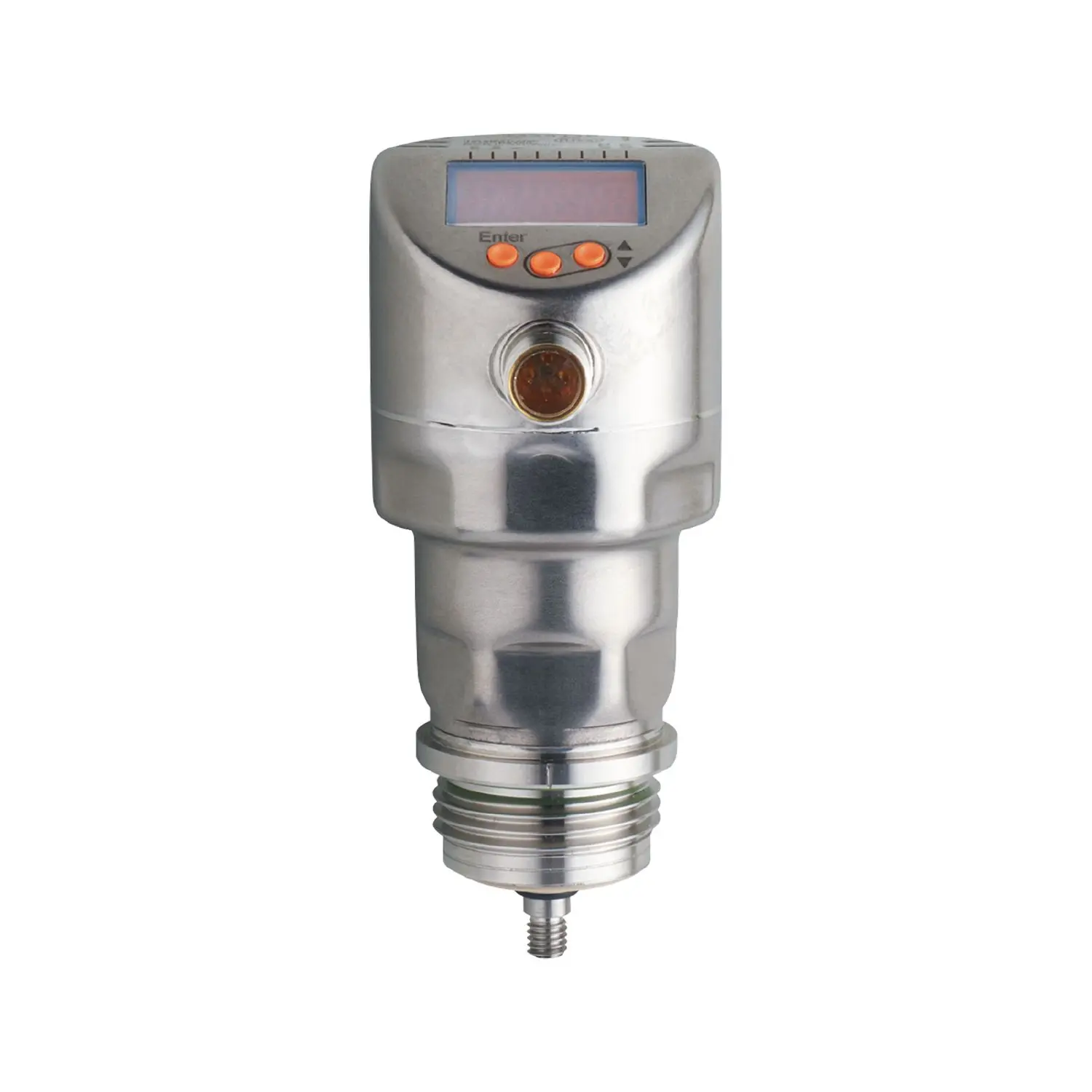

ifm Electronic LR2750 Kontinuierlicher Füllstandsensor (geführte Mikrowelle)

Product characteristics

• Number of inputs and outputs: Number of digital outputs: 1; Number of analogue outputs: 1
• Probe length L [mm]: 150...2000
• Process connection: threaded connection G 1 external thread Aseptoflex Vario

Application

• Special feature: Gold-plated contacts
• Application: hygienic systems
• Media: Liquids
• Dielectric constant of the medium: > 5
• Recommended media: water; hydrous media
• Process temperature [°C]: -40...150; (see note under remarks)
• Pressure rating [bar]: 40
• Vacuum resistance [mbar]: -1000
• MAWP (for applications according to CRN) [bar]: 25

Electrical data

• Operating voltage [V]: 18...30 DC
• Current consumption [mA]: < 50
• Protection class: III
• Reverse polarity protection: yes
• Power-on delay time [s]: < 3
• Measuring principle: guided wave radar

Inputs / outputs

• Number of inputs and outputs: Number of digital outputs: 1; Number of analogue outputs: 1

Outputs

• Total number of outputs: 2
• Output signal: switching signal; analogue signal; IO-Link
• Electrical design: PNP/NPN
• Number of digital outputs: 1
• Output function: normally open / normally closed; (parameterisable)
• Max. voltage drop switching output DC [V]: 2.5
• Permanent current rating of switching output DC [mA]: 150; (200 (...60 °C))
• Number of analogue outputs: 1
• Analogue current output [mA]: 4...20, invertible; (scalable)
• Max. load [Ω]: 500
• Short-circuit protection: yes
• Type of short-circuit protection: pulsed
• Overload protection: yes

Measuring/setting range

• Probe length L [mm]: 150...2000
• Active range A [mm]: L-40
• Inactive range I1 / I2 [mm]: 30 / 10
• Sampling rate [Hz]: 4
Setting range
• Set point SP [mm]: 15..
