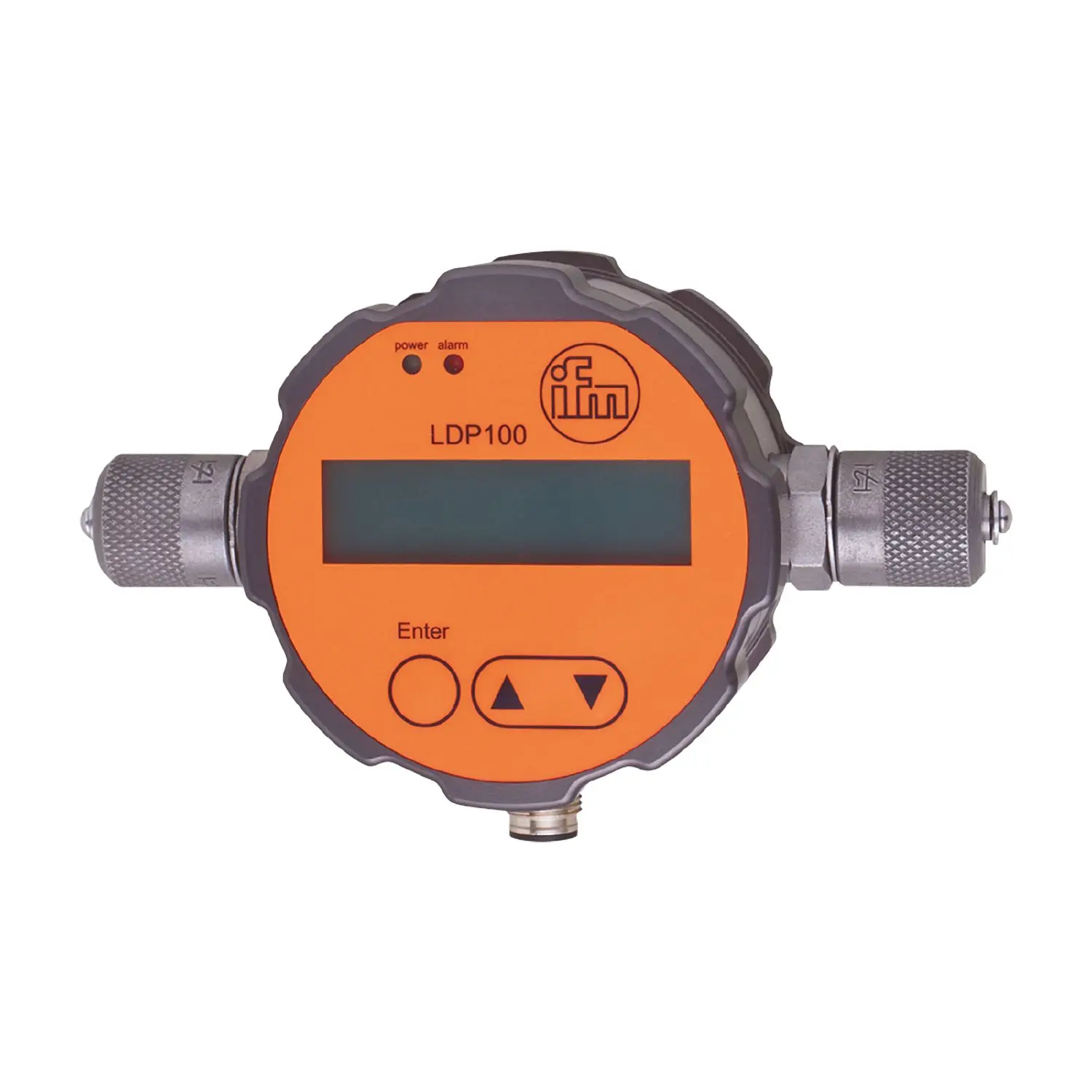

ifm Electronic LDP100 Optischer Öl Partikelmonitor

Product characteristics

• Number of inputs and outputs: Number of digital outputs: 1; Number of analogue outputs: 1
• Process connection: threaded connection M16 x 2 external thread Minimess

Application

• Media: mineral oils (e.g. HLP); ester oils (e.g. HEES); biodegradable oils (e.g. HETG)
Oil
• Medium temperature [°C]: -10...80

Electrical data

• Operating voltage [V]: 9...33 DC
• Current consumption [mA]: 9...50
• Protection class: III
• Measuring principle: photoelectric

Inputs / outputs

• Number of inputs and outputs: Number of digital outputs: 1; Number of analogue outputs: 1

Outputs

• Total number of outputs: 2
• Number of digital outputs: 1
• Permanent current rating of switching output DC [mA]: 500
• Number of analogue outputs: 1
• Analogue current output [mA]: 4...20
• Max. load [Ω]: (Ub - 4 V) / 20 mA; Ub = 24 V: 1000
• Short-circuit proof: no
• Overload protection: no

Measuring/setting range

• Measuring range: 10...22; (range number)
• Display range: 0...24; (range number)

Accuracy / deviations

• Accuracy: ± 1; (range number)

Software / programming

• Parameter setting options: via buttons, PC or digital I/O

Interfaces

• Communication interface: CAN

Operating conditions

• Ambient temperature [°C]: -10...60
• Storage temperature [°C]: -20...60
• Protection: IP 67

Tests / approvals

• MTTF [years]: 129
• Pressure Equipment Directive: article 3, paragraph (3) - Sound Engineering Practice

Mechanical data

• Weight [g]: 829
• Materials (wetted parts): stainless steel (1.4028 / 420); sapphire; NBR; chromium
• Process connection: threaded connection M16 x 2 external thread Minimess

Displays / opera
