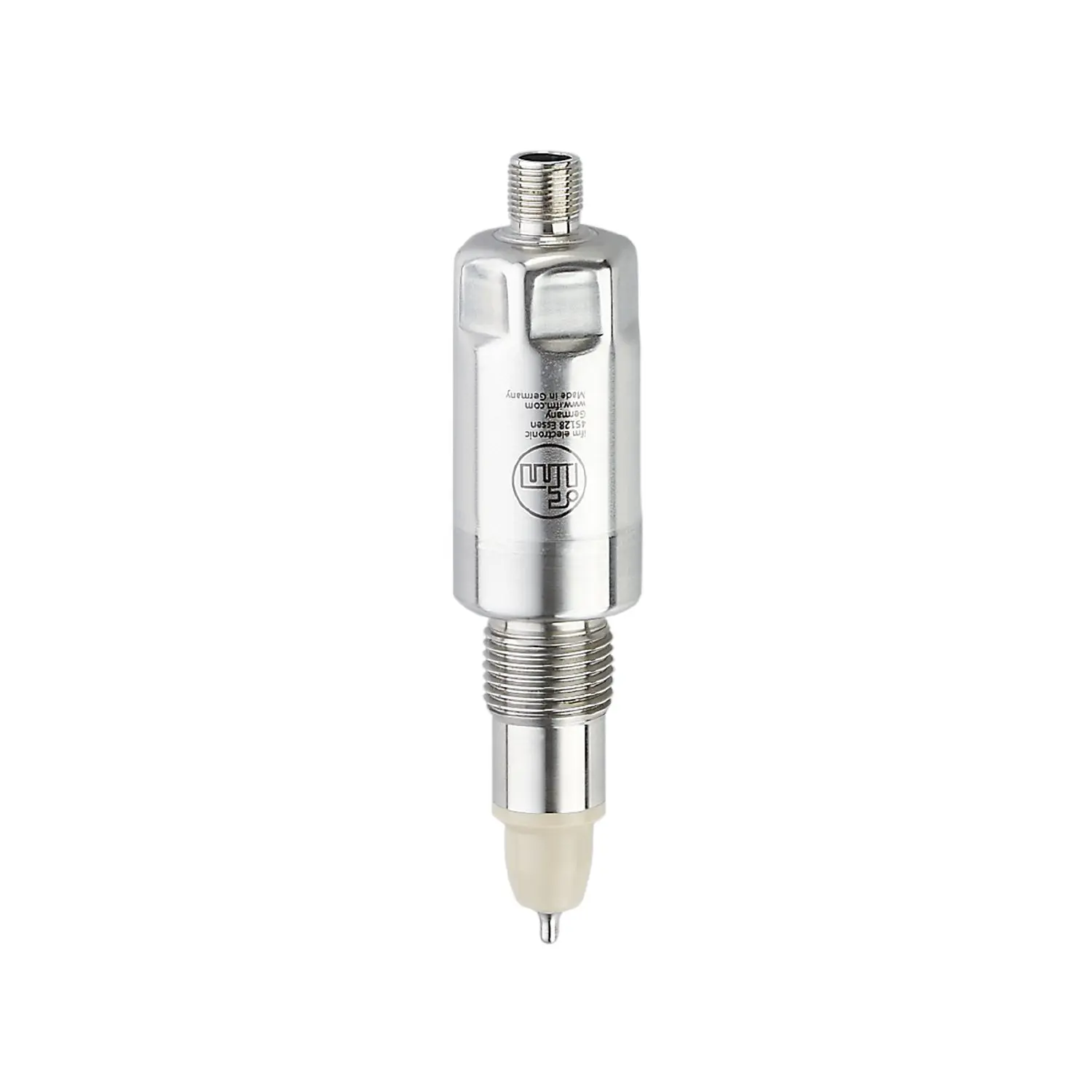

ifm Electronic LDL100 Konduktiver Leitfähigkeitssensor

Product characteristics

• Number of inputs and outputs: Number of analogue outputs: 1
• Process connection: threaded connection G 1/2 external thread sealing cone

Application

• Special feature: Gold-plated contacts
• Media: conductive liquids
• Note on media: water
, milk, CIP liquids
• Cannot be used for: See the operating instructions, chapter "Function and features".
• Medium temperature [°C]: -25...100; (< 1 h: 150)
• Pressure rating [bar]: 16
• Vacuum resistance [mbar]: -1000

Electrical data

• Operating voltage [V]: 18...30 DC
• Current consumption [mA]: < 60
• Protection class: III
• Reverse polarity protection: yes
• Power-on delay time [s]: 2
• Measuring principle: konduktiv

Inputs / outputs

• Number of inputs and outputs: Number of analogue outputs: 1

Outputs

• Total number of outputs: 1
• Output signal: analogue signal; IO-Link
• Output function: analogue output; scalable; selectable conductivity / temperature
• Number of analogue outputs: 1
• Analogue current output [mA]: 4...20
• Max. load [Ω]: 500

Measuring/setting range

conductivity measurement

Temperature measurement

Accuracy / deviations

conductivity measurement

Temperature measurement

Response times

conductivity measurement
