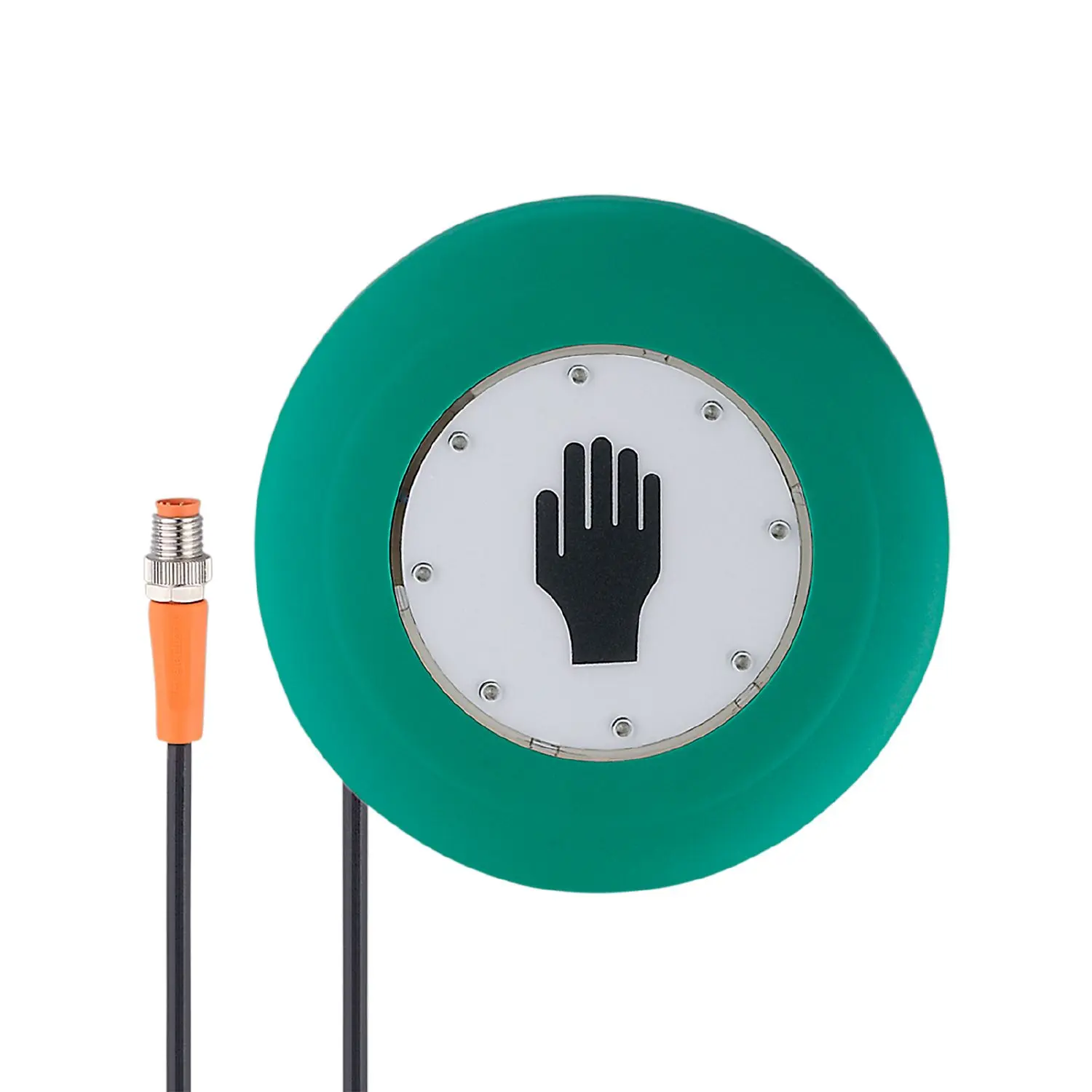

ifm Electronic KT5006 Kapazitiver Handsensor

Product characteristics

• Electrical design: PNP
• Output function: normally open
• Dimensions [mm]: Ø 100 / L = 11

Application

• Operating principle: static

Electrical data

• Operating voltage [V]: 12...30 DC
• Current consumption [mA]: 30
• Protection class: III
• Reverse polarity protection: yes
• Max. power-on delay time [ms]: 500

Outputs

• Electrical design: PNP
• Output function: normally open
• Permanent current rating of switching output DC [mA]: 200
• Short-circuit proof: yes
• Overload protection: yes

Response times

• Response time [ms]: 35

Operating conditions

• Ambient temperature [°C]: -40...85
• Protection: IP 67; IP 69K; (on the front)

Tests / approvals

• MTTF [years]: 394

Mechanical data

• Weight [g]: 129.5
• Dimensions [mm]: Ø 100 / L = 11
• Materials: active face: PA Grilamid TR 90UV transparent; housing: PC/ABS black; Coloured surround: PC/ABS green

Displays / operating elements

• Display: switching status, 8 x LED, red
, operation, 8 x LED, green

Accessories

• Accessories (optional): surround in different colours

Remarks

• Pack quantity: 1 pcs.

Electrical connection - plug

• Connection: Cable: 0.3 m, PUR
• Connection: Connector: 1 x M8; coding: A

KT5006-02 — 01.07.2020 —
