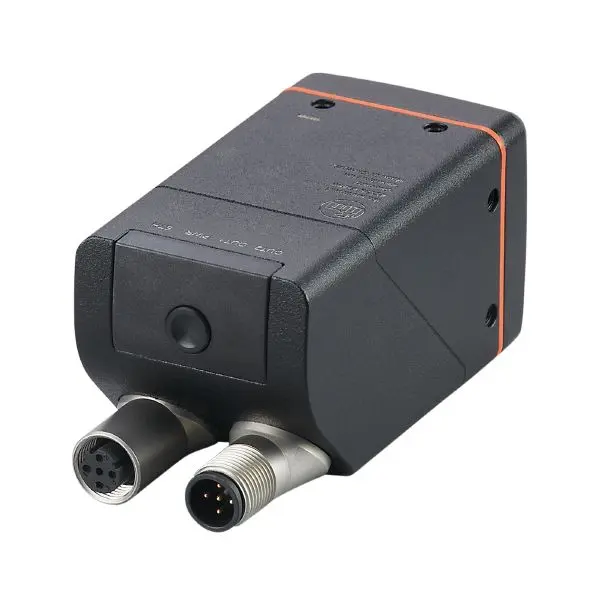

ifm Electronic KQ6008 Induktiver Ringsensor

Product characteristics

• Electrical design: PNP
• Output function: normally open / normally closed; (selectable)
• Sensing range [mm]: 12
• Communication interface: IO-Link
• Housing: rectangular
• Dimensions [mm]: 20 x 14 x 48

Application

• Installation: detection through non-metallic container wall or on bypass pipes
• Media: dry bulk material; liquids

Electrical data

• Operating voltage [V]: 10...30 DC
• Current consumption [mA]: < 17
• Protection class: III
• Reverse polarity protection: yes
• Measuring principle: capacitive

Outputs

• Electrical design: PNP
• Output function: normally open / normally closed; (selectable)
• Max. voltage drop switching output DC [V]: 2.5
• Permanent current rating of switching output DC [mA]: 100
• Switching frequency DC [Hz]: 10
• Short-circuit protection: yes
• Type of short-circuit protection: pulsed
• Overload protection: yes

Detection zone

• Sensing range [mm]: 12
• Real sensing range Sr [mm]: 12 ± 10 %

Accuracy / deviations

• Hysteresis [% of Sr]: 1...15
• Switch point drift [% of Sr]: -20...20

Interfaces

• Communication interface: IO-Link
• Transmission type: COM1 (4,8 kBaud)
• IO-Link revision: 1.1
• SDCI standard: IEC 61131-9 CDV
• Profiles: Smart Sensor
• SIO mode: yes
• Min. process cycle time [ms]: 100.8
• Supported DeviceIDs:
  • Type of operation, DeviceID: default, 371

  Operating conditions

  • Ambient temperature [°C]: -25...80
  • Protection: IP 65; IP 67; IP 69K

  Tests / approvals

  • EMC: EN 61000-4-2 ESD, 8 kV AD
  , EN 61000-4-3 HF radiated, 10 V/m, EN 61000-4-4 Burst, 2 kV, EN 61000-4-6 HF conducted, 3 V, EN 55011, class B
  • Shock resistance: EN 600
