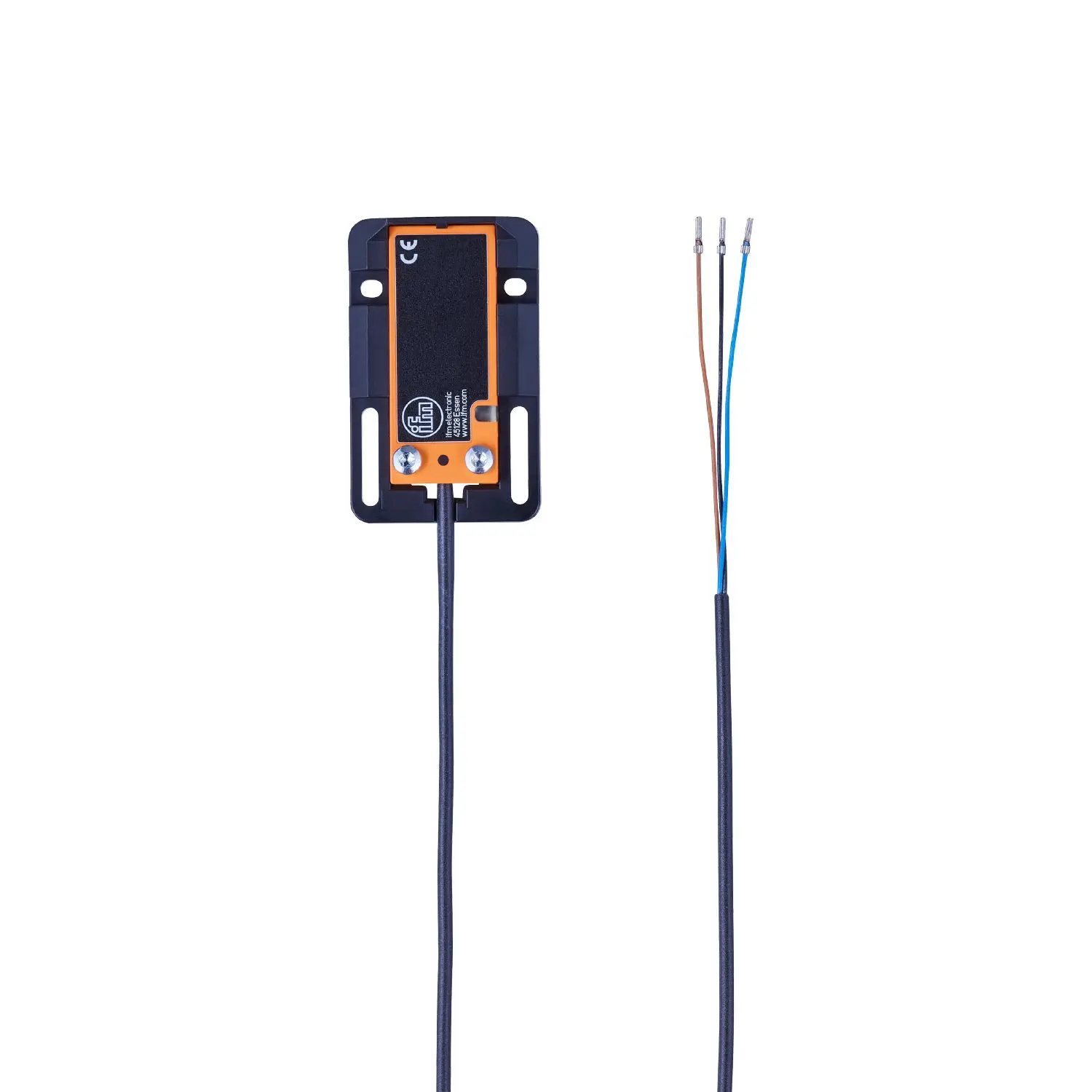

ifm Electronic KQ5005 Kapazitiver Sensor

Product characteristics

• Electrical design: PNP
• Output function: normally closed
• Sensing range [mm]: 7.3; (fixed: 7,3)
• Housing: rectangular
• Dimensions [mm]: 20 x 7 x 48

Application

• Application: level detection of demineralised water

Electrical data

• Operating voltage [V]: 10...30 DC
• Current consumption [mA]: < 17
• Protection class: III
• Reverse polarity protection: yes

Outputs

• Electrical design: PNP
• Output function: normally closed
• Max. voltage drop switching output DC [V]: 2.5
• Permanent current rating of switching output DC [mA]: 100
• Switching frequency DC [Hz]: 10
• Short-circuit proof: yes
• Overload protection: yes

Detection zone

• Sensing range [mm]: 7.3; (fixed: 7,3)

Accuracy / deviations

• Correction factor: glass: 0.4 / water: 1 / ceramics: 0.2 / PVC: 0.2
• Hysteresis [% of Sr]: 1...15
• Switch point drift [% of Sr]: -20...20

Operating conditions

• Ambient temperature [°C]: -25...80
• Protection: IP 65; IP 67; IP 69K

Tests / approvals

• EMC: EN 60947-5-2,
• MTTF [years]: 771
• UL approval: Ta, -25...80 °C
, Enclosure type, Type 1 , power supply, Class 2

Mechanical data

• Weight [g]: 67.7
• Housing: rectangular
• Mounting: non-flush mountable
• Dimensions [mm]: 20 x 7 x 48
• Materials: PBT; TPE-U; stainless steel

Displays / operating elements

• Display: switching status, 1 x LED, yellow

Accessories

• Items supplied: mounting adapter: 1

Remarks

• Pack quantity: 1 pcs.

Electrical connection

• Connection: Cable: 2 m, PUR; 3 x 0.14 mm²

KQ5005-01 — 13.04.2023 —
