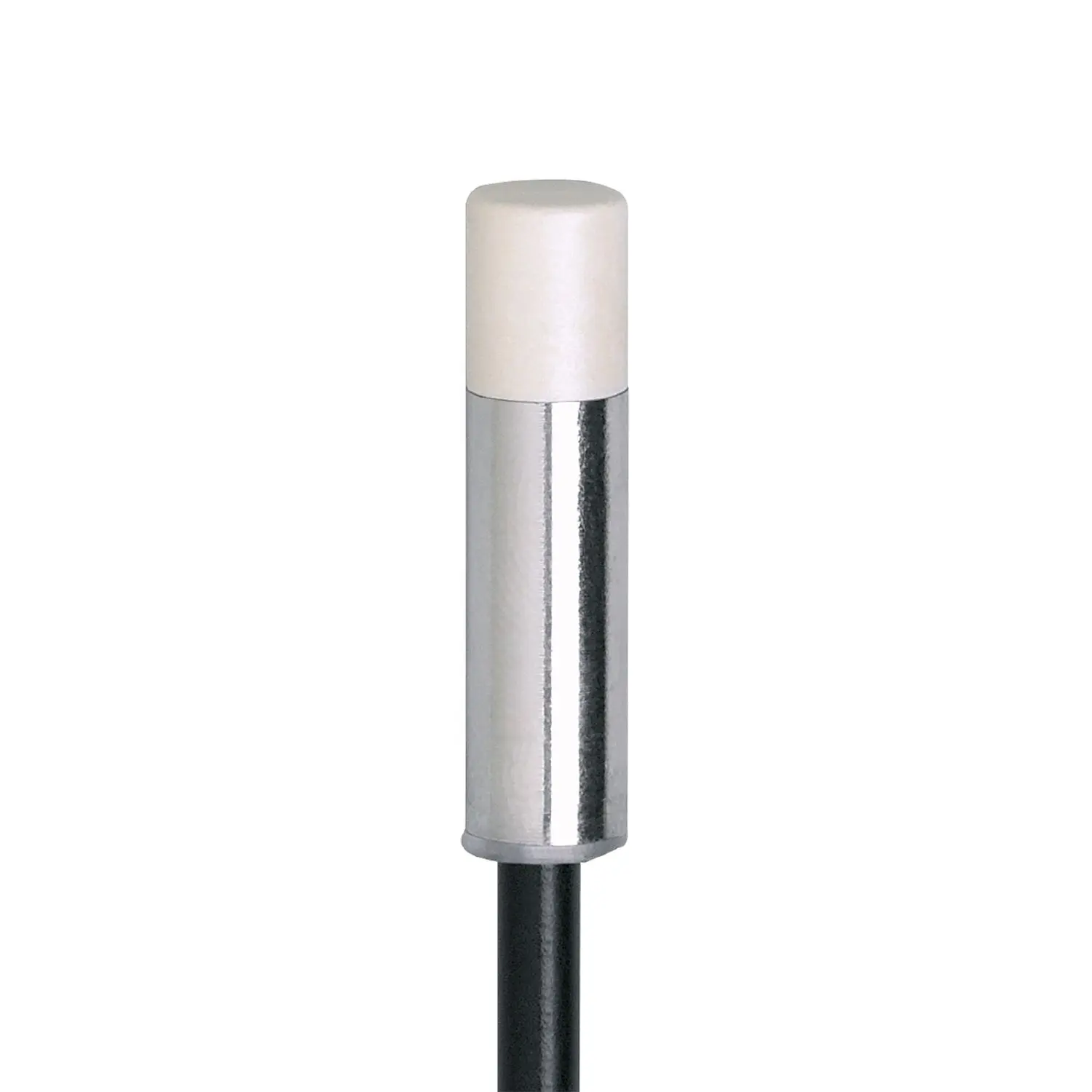

ifm Electronic IT5043 Induktiver Sensor

Product characteristics

• Electrical design: PNP
• Output function: normally open
• Sensing range [mm]: 4
• Housing: cylindrical
• Dimensions [mm]: Ø 6.5 / L = 27

Electrical data

• Operating voltage [V]: 10...30 DC
• Current consumption [mA]: < 15
• Protection class: III
• Reverse polarity protection: yes

Outputs

• Electrical design: PNP
• Output function: normally open
• Max. voltage drop switching output DC [V]: 2.5
• Permanent current rating of switching output DC [mA]: 100
• Switching frequency DC [Hz]: 500
• Short-circuit protection: yes
• Type of short-circuit protection: pulsed
• Overload protection: yes

Detection zone

• Sensing range [mm]: 4
• Real sensing range Sr [mm]: 4 ± 10 %
• Operating distance [mm]: 0...3.25

Accuracy / deviations

• Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
• Hysteresis [% of Sr]: 1...15

Operating conditions

• Ambient temperature [°C]: 0...60
• Protection: IP 67

Tests / approvals

• EMC: EN 60947-5-2,
• MTTF [years]: 3408
• UL approval: Ta, 0...60 °C
, Enclosure type, Type 1 , power supply, Class 2 , File number UL, E174191

Mechanical data

• Weight [g]: 44.2
• Housing: cylindrical
• Mounting: non-flush mountable
• Dimensions [mm]: Ø 6.5 / L = 27
• Materials: stainless steel; LCP

Displays / operating elements

• Display: switching status, 1 x LED, yellow

Accessories

• Items supplied: Mounting clamps: 1

Remarks

• Pack quantity: 1 pcs.

Electrical connection

• Connection: Cable: 2 m, PUR; 3 x 0.14 mm²

IT5043-00 — 13.04.2023 —
