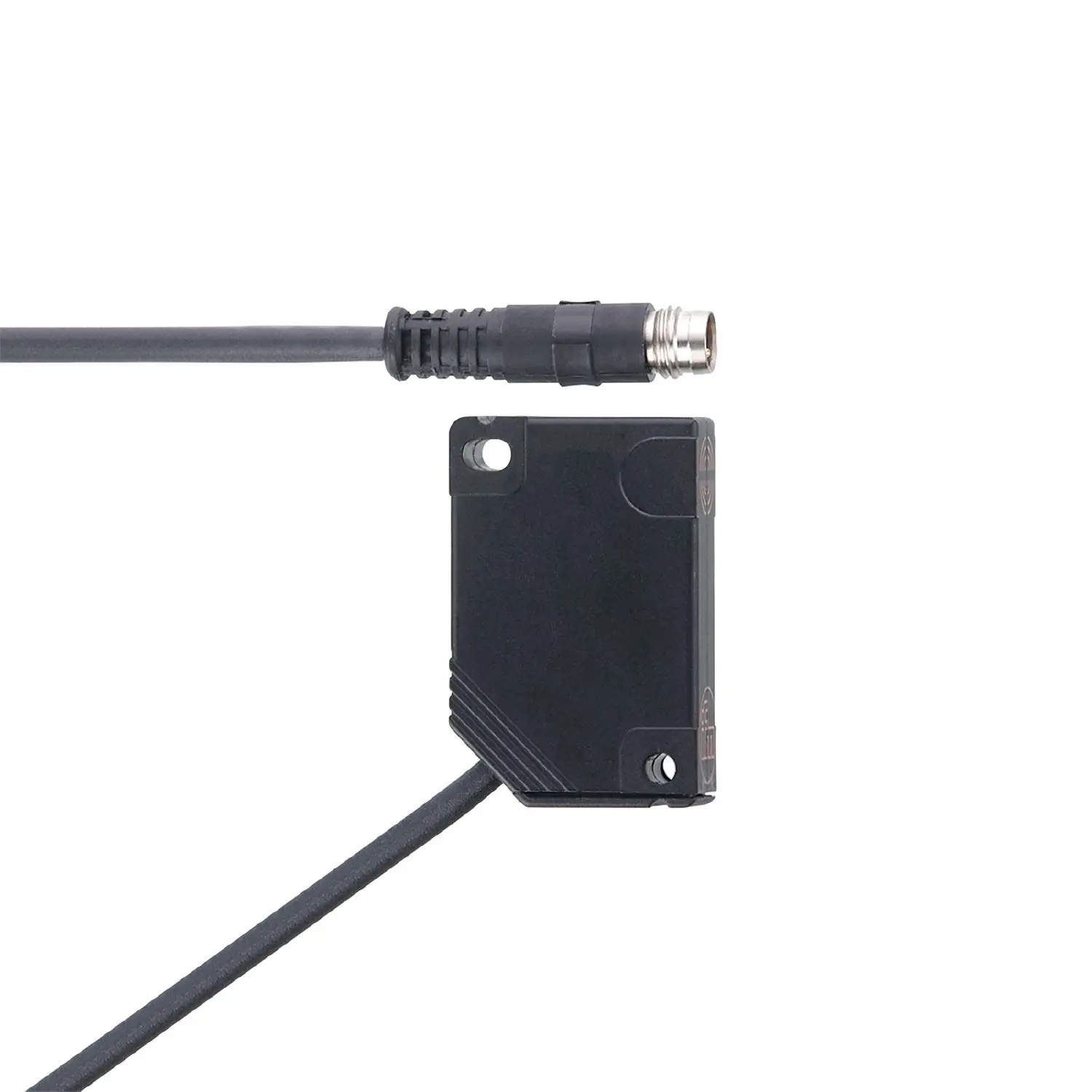

ifm Electronic IN5451 Induktiver Sensor

Product characteristics

• Electrical design: PNP
• Output function: normally open
• Sensing range [mm]: 7
• Housing: rectangular
• Dimensions [mm]: 40 x 12 x 26

Electrical data

• Operating voltage [V]: 10...36 DC; ("supply class 2" according to UL)
• Current consumption [mA]: < 15
• Protection class: III
• Reverse polarity protection: yes

Outputs

• Electrical design: PNP
• Output function: normally open
• Max. voltage drop switching output DC [V]: 2.5
• Permanent current rating of switching output DC [mA]: 250
• Switching frequency DC [Hz]: 300
• Short-circuit protection: yes
• Type of short-circuit protection: pulsed
• Overload protection: yes

Detection zone

• Sensing range [mm]: 7
• Real sensing range Sr [mm]: 7 ± 10 %
• Operating distance [mm]: 0...5.67

Accuracy / deviations

• Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2
• Hysteresis [% of Sr]: 1...15
• Switch point drift [% of Sr]: -10...10

Operating conditions

• Ambient temperature [°C]: 0...60
• Protection: IP 67

Tests / approvals

• EMC: EN 61000-4-2 ESD, 8 kV CD / 15 kV AD
, EN 61000-4-3 HF radiated, 10 V/m, EN 61000-4-4 Burst, 2 kV, EN 61000-4-6 HF conducted, 10 V, EN 55011 emission, class B
• UL approval: Ta, -25...40 °C
, Enclosure type, Type 1 , power supply, Class 2 , File number UL, E174191

Mechanical data

• Weight [g]: 26.9
• Housing: rectangular
• Mounting: non-flush mountable
• Dimensions [mm]: 40 x 12 x 26
• Materials: PBT

Displays / operating elements

• Display: switching status, 1 x LED, yellow

Remarks

• Pack quantity: 1 pcs.

Electrical connection - plug
