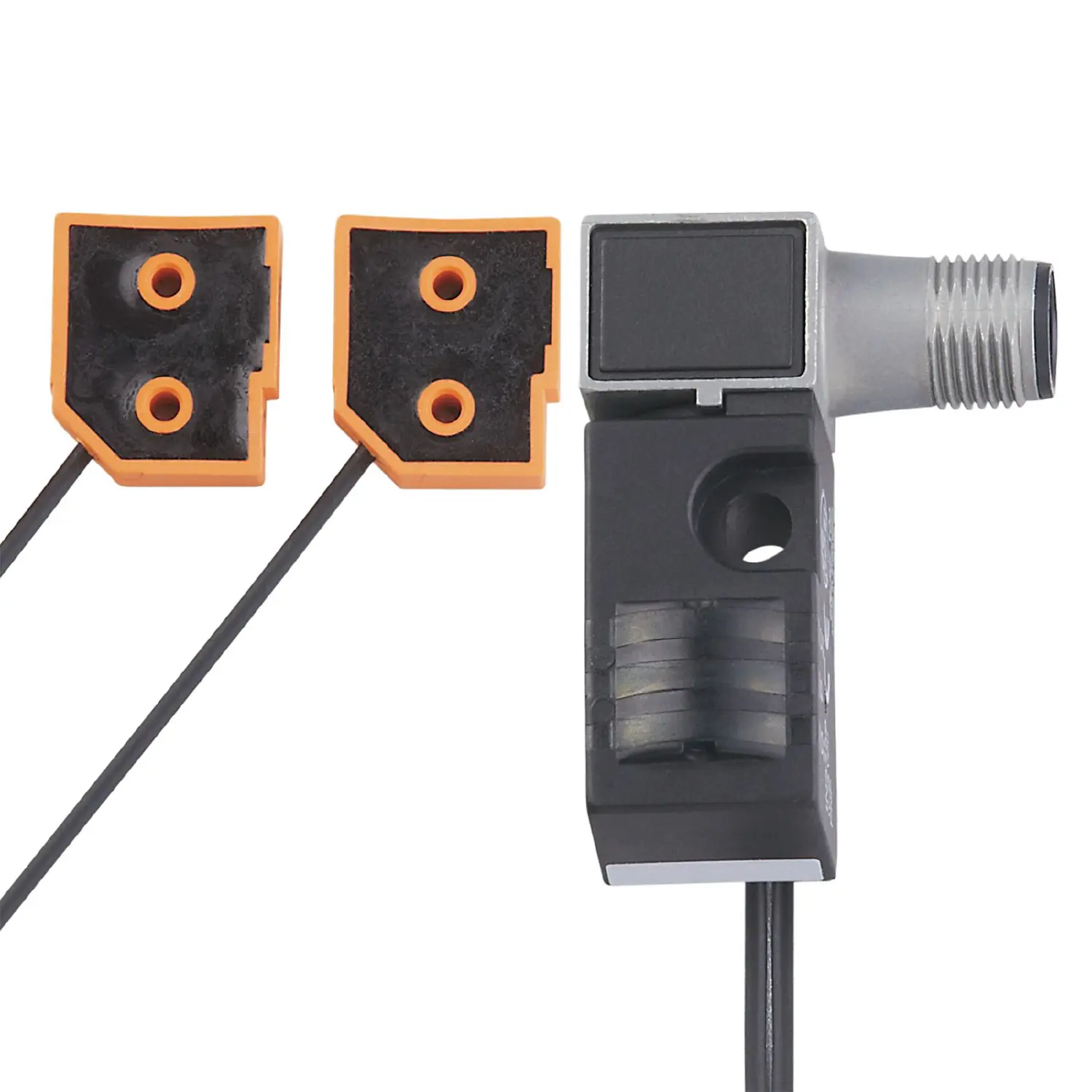

ifm Electronic IN5375 Induktiver Sensor

Product characteristics

• Electrical design: PNP
• Output function: 2 x normally open
• Sensing range [mm]: 2
• Housing: rectangular

Application

• Special feature: Magnetic-field immune
• Magnetic-field immune: yes

Electrical data

• Operating voltage [V]: 10...30 DC
• Current consumption [mA]: 15; (24 V)
• Protection class: II
• Reverse polarity protection: yes

Outputs

• Electrical design: PNP
• Output function: 2 x normally open
• Max. voltage drop switching output DC [V]: 2
• Permanent current rating of switching output DC [mA]: 200
• Switching frequency DC [Hz]: 25
• Short-circuit protection: yes
• Type of short-circuit protection: pulsed
• Overload protection: yes

Detection zone

• Sensing range [mm]: 2
• Real sensing range Sr [mm]: 2 ± 10 %
• Operating distance [mm]: 0...1.62

Accuracy / deviations

• Correction factor: steel: 1 / stainless steel: 0.85 / aluminium: 0.4 / copper: 0.3
• Switch point drift [% of Sr]: -10...10

Operating conditions

• Ambient temperature [°C]: -25...70
• Protection: IP 67

Tests / approvals

• EMC: IEC61000,

Mechanical data

• Weight [g]: 59.5
• Housing: rectangular
• Mounting: non-flush mountable
• Materials: housing: ABS
• Length L [mm]: 160

Displays / operating elements

• Display: switching status, 1 x LED, yellow sensor 1
, switching status, 1 x LED, red sensor 2, operation, LED, green

Remarks

• Pack quantity: 1 pcs.

Electrical connection

• Connection: Connector: 1 x M12; coding: A

IN5375-00 — 07.01.2019 —
