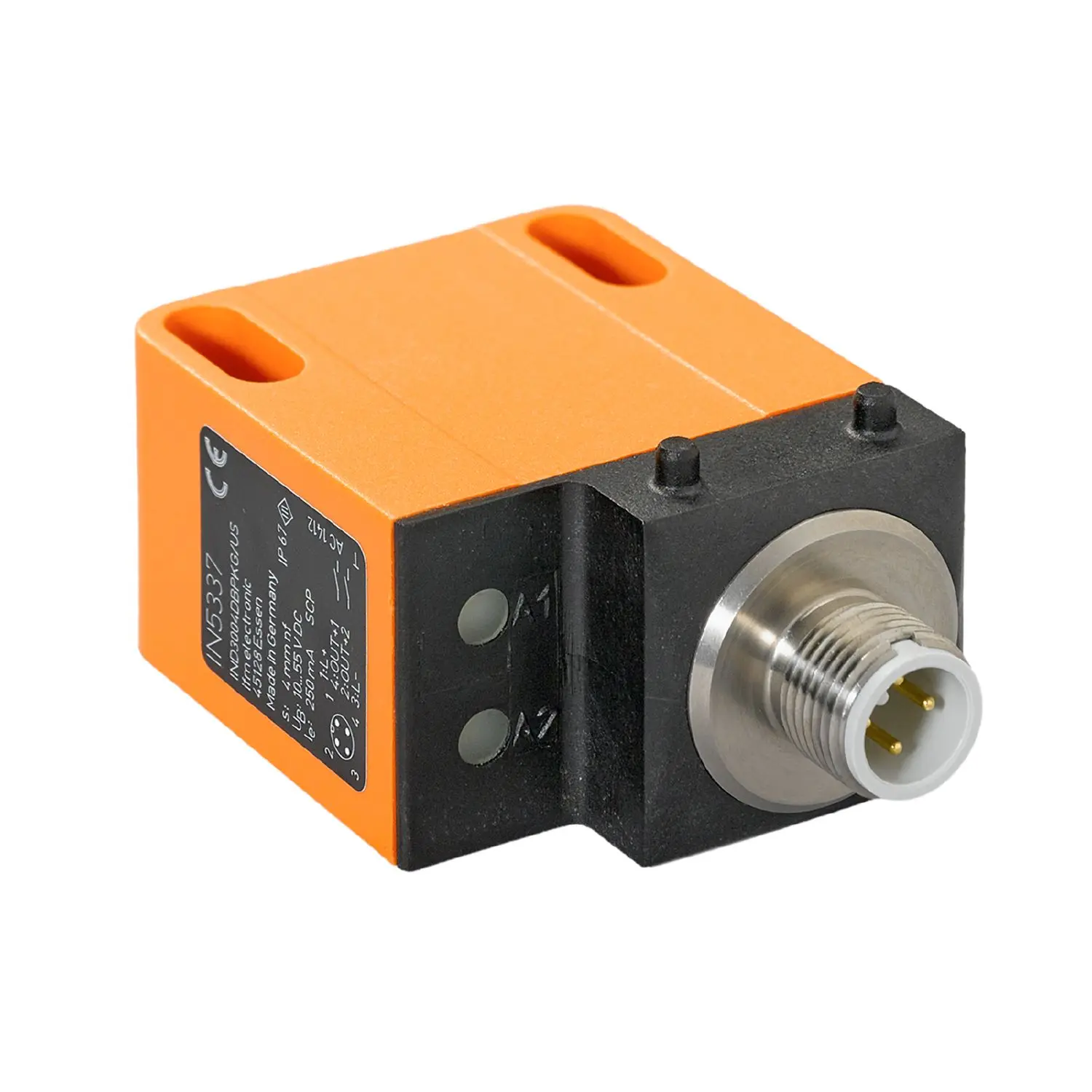

ifm Electronic IN5337 Induktiver Doppelsensor für Schwenkantriebe

Product characteristics

• Electrical design: PNP
• Output function: 2 x normally open
• Sensing range [mm]: 4
• Housing: rectangular

Electrical data

• Operating voltage [V]: 10...55 DC
• Current consumption [mA]: < 30
• Protection class: III
• Reverse polarity protection: yes

Outputs

• Electrical design: PNP
• Output function: 2 x normally open
• Max. voltage drop switching output DC [V]: 2.5
• Permanent current rating of switching output DC [mA]: 250
• Switching frequency DC [Hz]: 50
• Short-circuit protection: yes
• Type of short-circuit protection: pulsed
• Overload protection: yes

Detection zone

• Sensing range [mm]: 4
• Real sensing range Sr [mm]: 4 ± 10 %
• Operating distance [mm]: 0...3.25

Accuracy / deviations

• Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
• Hysteresis [% of Sr]: 3...15
• Switch point drift [% of Sr]: -10...10

Operating conditions

• Ambient temperature [°C]: -25...80
• Protection: IP 67; (if screwed on)

Tests / approvals

• EMC: EN 60947-5-2,
, EN 55011, class B
• MTTF [years]: 854

Mechanical data

• Weight [g]: 73.5
• Housing: rectangular
• Mounting: non-flush mountable
• Materials: PC

Displays / operating elements

• Display: switching status, 2 x LED, yellow

Remarks

• Pack quantity: 1 pcs.

Electrical connection - plug

• Connection: Connector: 1 x M12; coding: A

IN5337-03 — 13.04.2023 —
