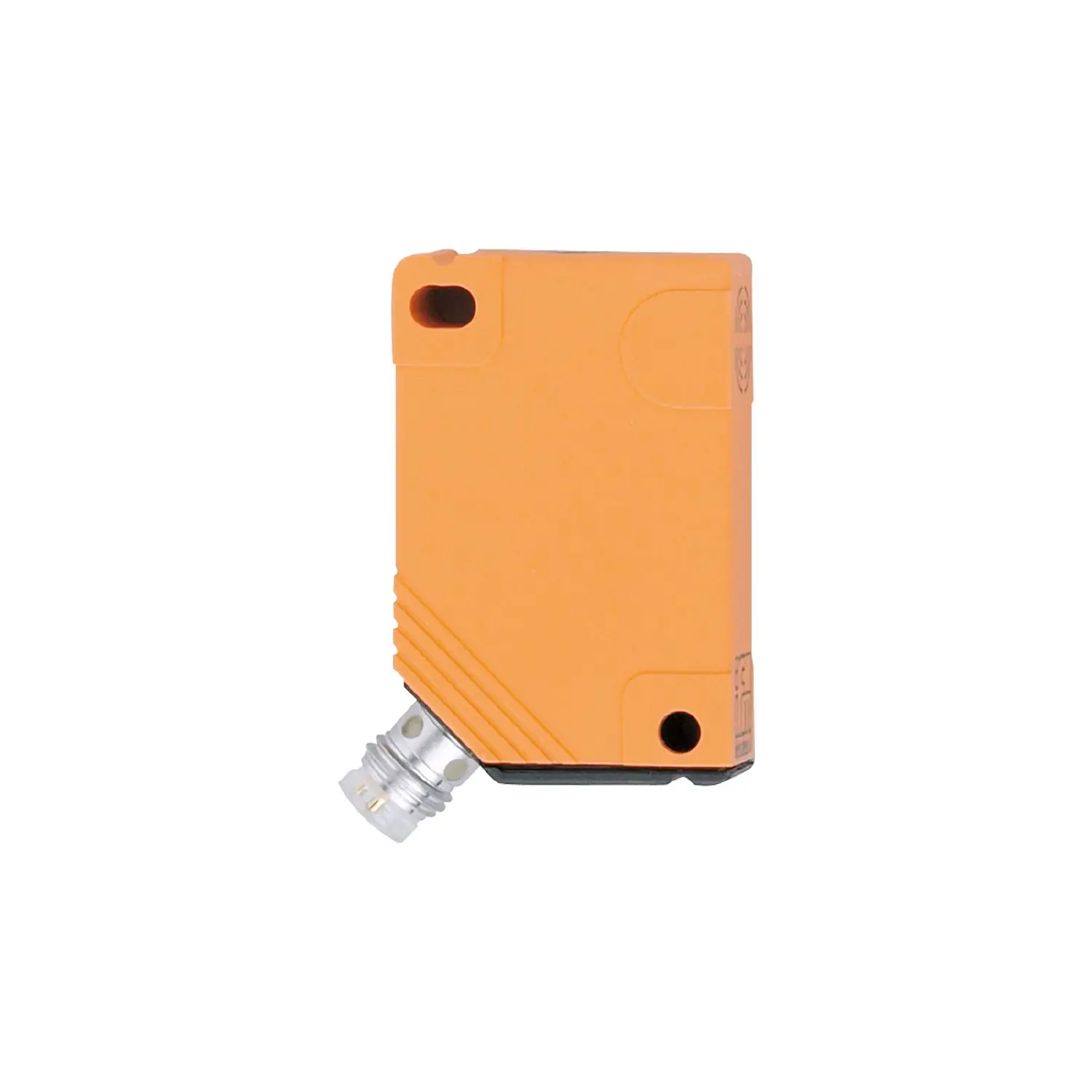

ifm Electronic IN5258 Induktiver Sensor

Product characteristics

• Electrical design: PNP/NPN
• Output function: normally open / normally closed; (selectable)
• Sensing range [mm]: 4
• Housing: rectangular
• Dimensions [mm]: 40 x 12 x 26

Electrical data

• Operating voltage [V]: 10...55 DC
• Protection class: III
• Reverse polarity protection: yes

Outputs

• Electrical design: PNP/NPN
• Output function: normally open / normally closed; (selectable)
• Max. voltage drop switching output DC [V]: 4.6
• Minimum load current [mA]: 4
• Max. leakage current [mA]: 0.5
• Permanent current rating of switching output DC [mA]: 300
• Switching frequency DC [Hz]: 1200
• Short-circuit protection: yes
• Type of short-circuit protection: pulsed
• Overload protection: yes

Detection zone

• Sensing range [mm]: 4
• Real sensing range Sr [mm]: 4 ± 10 %
• Operating distance [mm]: 0...3.25

Accuracy / deviations

• Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2
• Hysteresis [% of Sr]: 1...15
• Switch point drift [% of Sr]: -10...10

Operating conditions

• Ambient temperature [°C]: -25...80
• Protection: IP 65

Tests / approvals

• EMC: EN 60947-5-2,
, EN 55011, class B
• MTTF [years]: 1645
• UL approval: Ta, 0...40 °C
, Enclosure type, Type 1 , power supply, Hazardous voltage , File number UL, E174191

Mechanical data

• Weight [g]: 21
• Housing: rectangular
• Mounting: non-flush mountable
• Dimensions [mm]: 40 x 12 x 26
• Materials: PBT

Displays / operating elements

• Display: switching status, 1 x LED, red

Remarks

• Pack quantity: 1 pcs.

Electrical connection - plug

• : Connector: 1 x M8; coding: A
