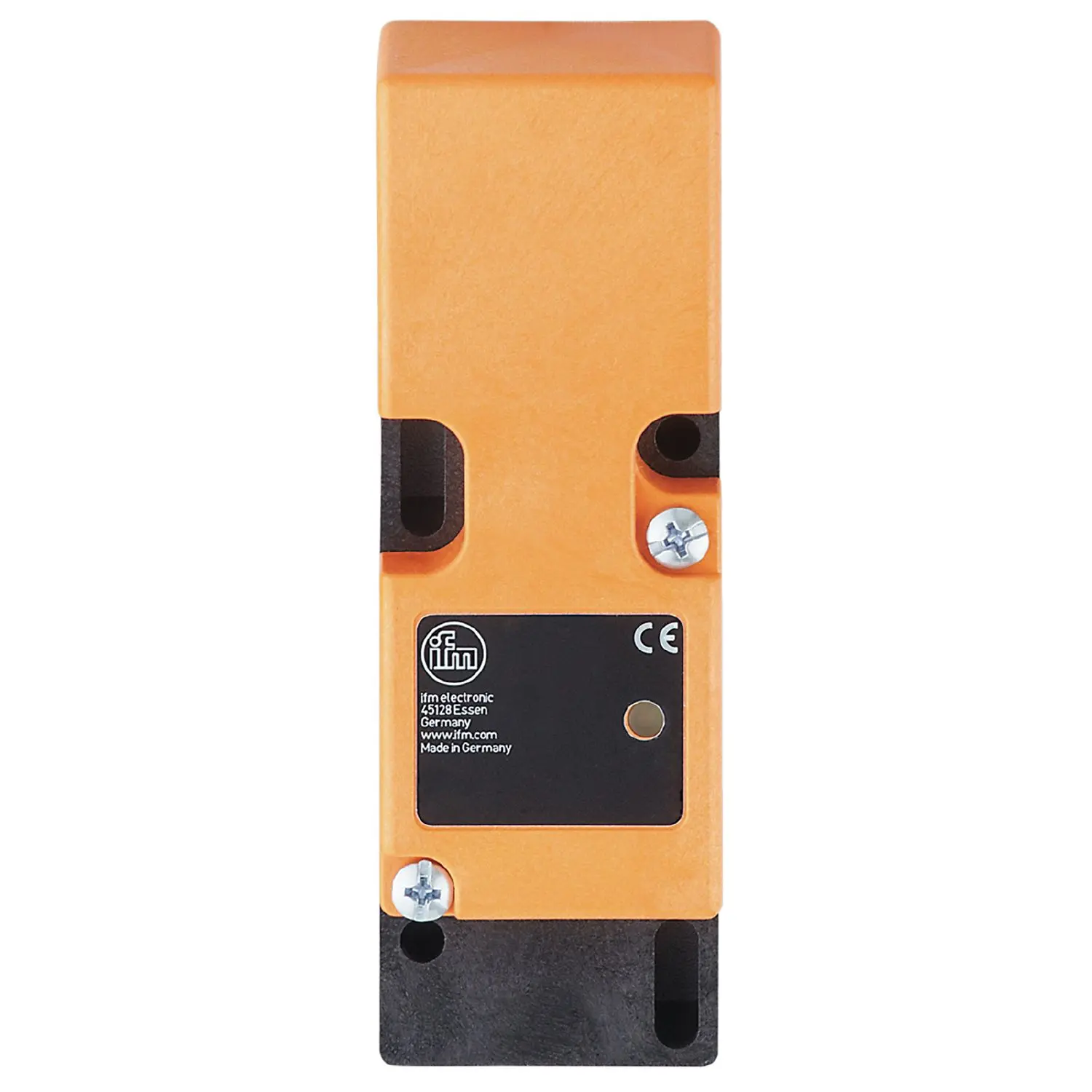

ifm Electronic IM5054 Induktiver Sensor

Product characteristics

• Electrical design: PNP
• Output function: normally open / normally closed; (selectable)
• Sensing range [mm]: 15
• Housing: rectangular

Electrical data

• Operating voltage [V]: 10...36 DC
• Current consumption [mA]: 15; (24 V)
• Protection class: II
• Reverse polarity protection: yes

Outputs

• Electrical design: PNP
• Output function: normally open / normally closed; (selectable)
• Max. voltage drop switching output DC [V]: 2.5
• Permanent current rating of switching output DC [mA]: 250
• Switching frequency DC [Hz]: 250
• Short-circuit protection: yes
• Type of short-circuit protection: pulsed
• Overload protection: yes

Detection zone

• Sensing range [mm]: 15
• Real sensing range Sr [mm]: 15 ± 10 %
• Operating distance [mm]: 0...12.1

Accuracy / deviations

• Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2
• Hysteresis [% of Sr]: 1...15
• Switch point drift [% of Sr]: -10...10

Operating conditions

• Ambient temperature [°C]: -25...80
• Protection: IP 65

Tests / approvals

• EMC: EN 61000-4-2 ESD, 4 kV CD
, EN 61000-4-3 HF radiated, 3 V/m, EN 61000-4-4 Burst, 2 kV, EN 61000-4-6 HF conducted, 3 V, EN 55011, class B
• MTTF [years]: 2234

Mechanical data

• Weight [g]: 168
• Housing: rectangular
• Mounting: flush mountable
• Materials: PPE

Displays / operating elements

• Display: switching status, 1 x LED, yellow

Remarks

• Remarks: 5 positions of the active zone possible
, Cable gland (E11270) to be ordered separately
• Pack quantity: 1 pcs.

Electrical connection

• Connection: terminals: ...2.5 mm²; Cable sheath: Ø 7...13
