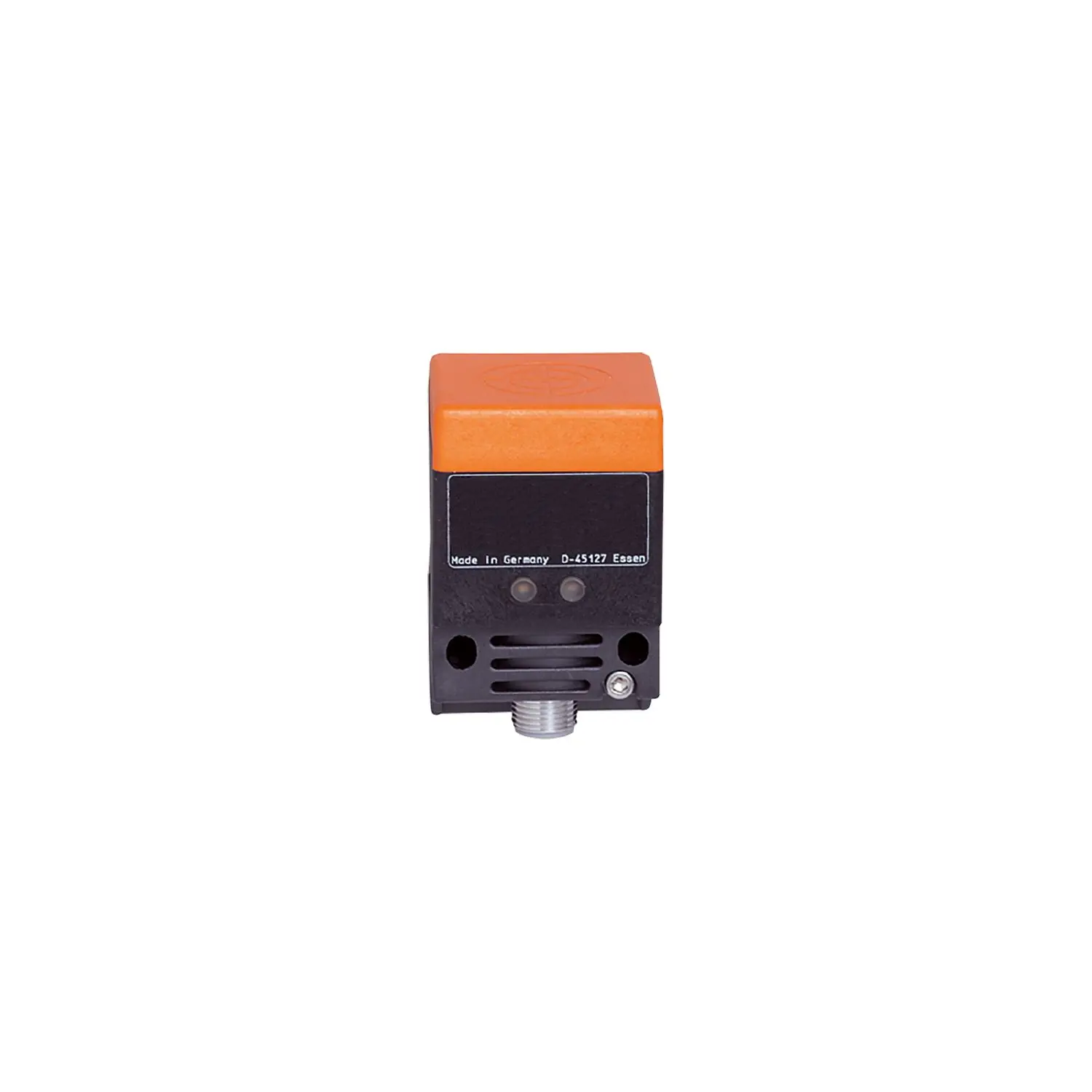

ifm Electronic IM0057 Induktiver Sensor

Product characteristics

• Output function: normally closed
• Sensing range [mm]: 35
• Housing: rectangular

Application

• Special feature: Increased sensing range

Electrical data

• Operating voltage [V]: 20...250 AC/DC
• Protection class: I
• Reverse polarity protection: no

Outputs

• Output function: normally closed
• Max. voltage drop switching output DC [V]: 6
• Max. voltage drop switching output AC [V]: 6.5
• Minimum load current [mA]: 1.9
• Max. leakage current [mA]: 2.5 (250 V AC) / 1.3 (130 V AC) / 0.8 (24 V DC)
• Permanent current rating of switching output AC [mA]: 250; (350 (...50 °C))
• Permanent current rating of switching output DC [mA]: 100
• Short-time current rating of switching output [mA]: 2200; (20 ms / 0,5 Hz)
• Switching frequency AC [Hz]: 20
• Switching frequency DC [Hz]: 50
• Short-circuit proof: no
• Overload protection: no

Detection zone

• Sensing range [mm]: 35
• Operating distance [mm]: 0...28.3
• Increased sensing range: yes

Accuracy / deviations

• Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.4 / copper: 0.3
• Hysteresis [% of Sr]: 3...15

Operating conditions

• Ambient temperature [°C]: -25...70
• Protection: IP 67

Tests / approvals

• EMC: EN 60947-5-2,
, EN 55011, class B
• MTTF [years]: 600

Mechanical data

• Weight [g]: 164
• Housing: rectangular
• Mounting: non-flush mountable
• Materials: housing: PPE; sensing face: PPE orange; end cap: PPS; clamp: PPS black; screw: steel galvanised

Displays / operating elements

• Display: switching status, 1 x LED, yellow

Electrical connection

• Required protection: miniature fuse to IEC60127-2 sheet 1; ≤ 2 A
