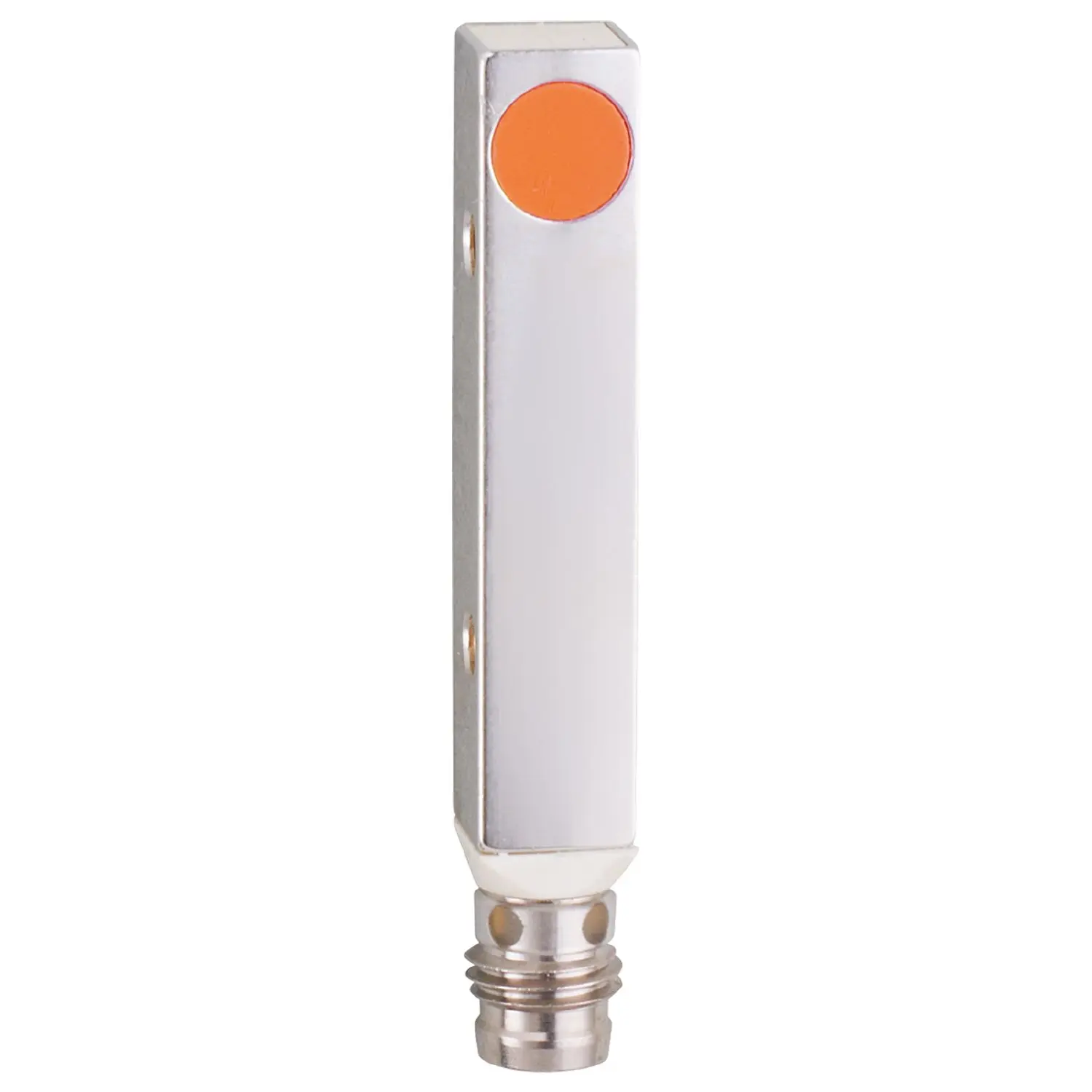

ifm Electronic IL5021 Induktiver Sensor

Product characteristics

• Electrical design: PNP
• Output function: normally open
• Sensing range [mm]: 2.5
• Housing: rectangular
• Dimensions [mm]: 40 x 8 x 8

Electrical data

• Operating voltage [V]: 10...36 DC
• Current consumption [mA]: 15; (24 V)
• Protection class: III
• Reverse polarity protection: yes

Outputs

• Electrical design: PNP
• Output function: normally open
• Max. voltage drop switching output DC [V]: 2.5
• Permanent current rating of switching output DC [mA]: 250
• Switching frequency DC [Hz]: 2000
• Short-circuit protection: yes
• Type of short-circuit protection: pulsed
• Overload protection: yes

Detection zone

• Sensing range [mm]: 2.5
• Real sensing range Sr [mm]: 2.5 ± 10 %
• Operating distance [mm]: 0...2.02

Accuracy / deviations

• Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
• Hysteresis [% of Sr]: 1...15
• Switch point drift [% of Sr]: -10...10

Operating conditions

• Ambient temperature [°C]: -25...70
• Protection: IP 65

Tests / approvals

• EMC: EN 60947-5-2,
, EN 55011, class B
• MTTF [years]: 3449
• UL approval: Ta, -25...70 °C
, Enclosure type, Type 1 , power supply, Limited Voltage/Current , File number UL, E174191

Mechanical data

• Weight [g]: 13.5
• Housing: rectangular
• Mounting: flush mountable
• Dimensions [mm]: 40 x 8 x 8
• Materials: brass white bronze coated; LCP
• Tightening torque [Nm]: 1; (insertion depth: > 5 mm)

Displays / operating elements

• Display: switching status, 4 x 90° LED, red

Remarks

• Pack quantity: 1 pcs.

Electrical connection - plug

• Connection: Connector: 1 x M8;
