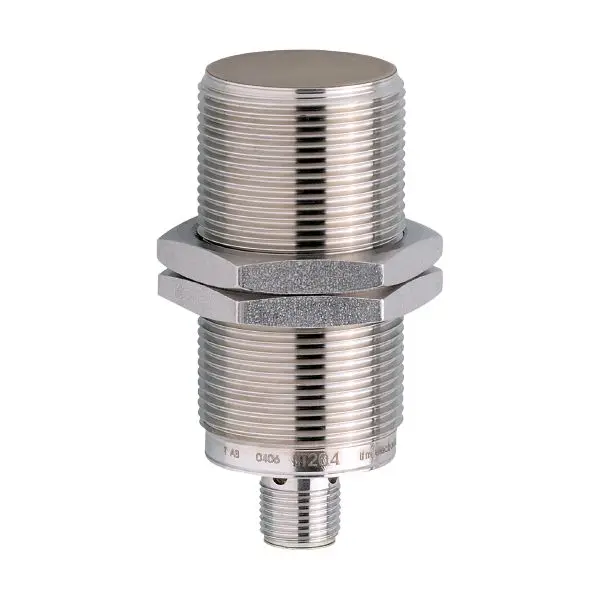

ifm Electronic IIT002, Induktiver Sensor

Product characteristics

• Output function: normally open
• Sensing range [mm]: 22
• Housing: threaded type
• Dimensions [mm]: M30 x 1.5 / L = 70

Application

• Special feature: Gold-plated contacts
• Application: regular cleaning processes

Electrical data

• Operating voltage [V]: 20...140 AC/DC
• Protection class: II
• Reverse polarity protection: yes
• Max. power-on delay time [ms]: 1000

Outputs

• Output function: normally open
• Max. voltage drop switching output DC [V]: 5.5
• Max. voltage drop switching output AC [V]: 5.5
• Minimum load current [mA]: 5
• Max. leakage current [mA]: 1
• Permanent current rating of switching output AC [mA]: 80; (200 (...80 °C))
• Permanent current rating of switching output DC [mA]: 80; (200 (...80 °C))
• Short-time current rating of switching output [mA]: 1200; (20ms / 0,5Hz / 80 mA (> 80°C))
• Switching frequency AC [Hz]: 25
• Switching frequency DC [Hz]: 100
• Short-circuit protection: yes
• Type of short-circuit protection: pulsed
• Overload protection: yes

Detection zone

• Sensing range [mm]: 22
• Real sensing range Sr [mm]: 22 ± 10 %
• Operating distance [mm]: 0...17.82

Accuracy / deviations

• Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
• Hysteresis [% of Sr]: 3...15
• Switch point drift [% of Sr]: -10...10

Operating conditions

• Ambient temperature [°C]: 0...100
• Protection: IP 68; IP 69K; ("COP")

Tests / approvals

• EMC: EN 61000-4-2 ESD, 4 kV CD / 8 kV AD
, EN 61000-4-3 HF radiated, 10 V/m, EN 61000-4-4 Burst, 2 kV, EN 61000-4-6 HF conducted, 10 V, EN 55011, class B
• MTTF [years]: 378
• UL approval: Ta, 0...40 °C
, Enclosure type, Typ
