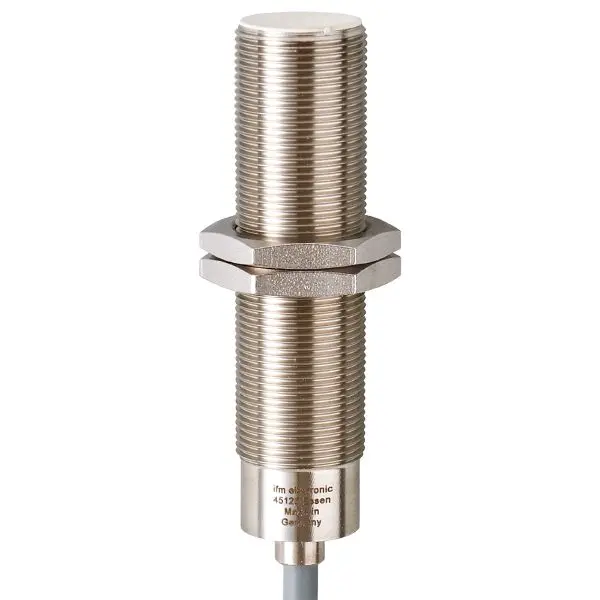

ifm Electronic II5930 Induktiver Hochtemperatursensor

Product characteristics

• Electrical design: PNP
• Output function: normally open
• Sensing range [mm]: 15
• Housing: threaded type
• Dimensions [mm]: M30 x 1.5 / L = 79

Application

• Application: high-temperature applications

Electrical data

• Operating voltage [V]: 10...35 DC
• Current consumption [mA]: < 15
• Protection class: III
• Reverse polarity protection: yes

Outputs

• Electrical design: PNP
• Output function: normally open
• Max. voltage drop switching output DC [V]: 2
• Permanent current rating of switching output DC [mA]: 150
• Switching frequency DC [Hz]: 200
• Short-circuit protection: yes
• Type of short-circuit protection: pulsed
• Overload protection: yes

Detection zone

• Sensing range [mm]: 15
• Operating distance [mm]: 0...12.1

Accuracy / deviations

• Correction factor: steel: 1 / stainless steel: 0.6 / brass: 0.3 / aluminium: 0.2 / copper: 0.1
• Hysteresis [% of Sr]: 3...15
• Switch point drift [% of Sr]: -10...10

Operating conditions

• Ambient temperature [°C]: 0...180
• Protection: IP 65

Tests / approvals

• EMC: EN 61000-4-2 ESD, 2 kV CD / 4 kV AD
, EN 61000-4-3 HF radiated, 3 V/m, EN 61000-4-4 Burst, 2 kV, EN 61000-4-6 HF conducted, 3 V
• MTTF [years]: 693

Mechanical data

• Weight [g]: 357
• Housing: threaded type
• Mounting: non-flush mountable
• Dimensions [mm]: M30 x 1.5 / L = 79
• Thread designation: M30 x 1.5
• Materials: housing: stainless steel; sensing face: LCP

Accessories

• Items supplied: lock nuts: 2

Remarks

• Pack quantity: 1 pcs.

Electrical connection

• Connection: Cable: 5 m, silicone; highly flexible; 3 x 0.22 mm²
