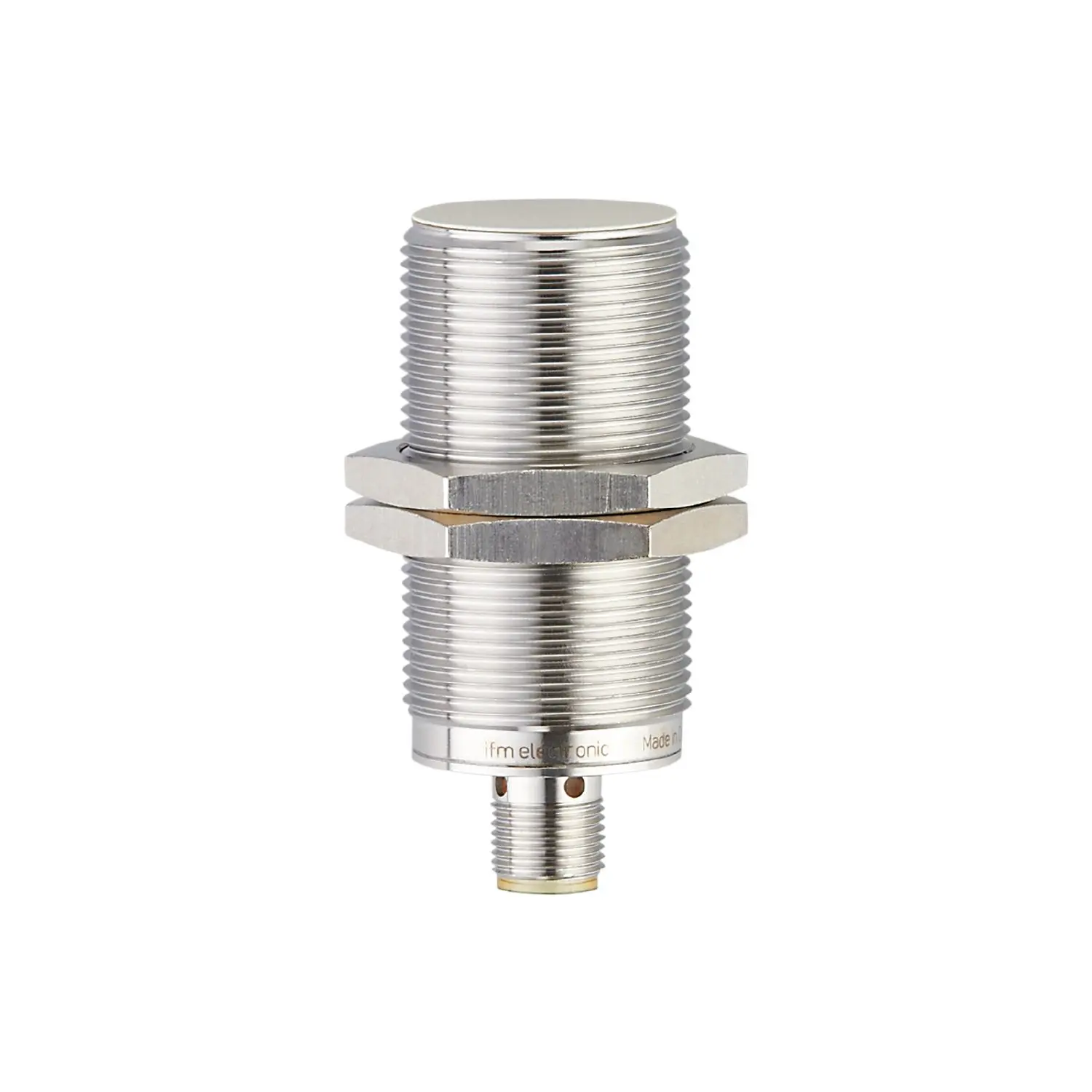

ifm Electronic II5923 Induktiver Sensor

Product characteristics

• Electrical design: PNP/NPN
• Output function: normally closed
• Sensing range [mm]: 12
• Housing: threaded type
• Dimensions [mm]: M30 x 1.5 / L = 70

Application

• Special feature: Gold-plated contacts; Increased sensing range

Electrical data

• Operating voltage [V]: 10...36 DC
• Current consumption [mA]: < 10; (only in 3-wire operation)
• Protection class: II
• Reverse polarity protection: yes

Outputs

• Electrical design: PNP/NPN
• Output function: normally closed
• Max. voltage drop switching output DC [V]: 2.5
• Minimum load current [mA]: 2; (only in 2-wire operation)
• Max. leakage current [mA]: 0.5; (only in 2-wire operation)
• Permanent current rating of switching output DC [mA]: 100
• Switching frequency DC [Hz]: 100
• Short-circuit protection: yes
• Overload protection: yes

Detection zone

• Sensing range [mm]: 12
• Operating distance [mm]: 0...9.72
• Increased sensing range: yes

Accuracy / deviations

• Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.45 / copper: 0.35
• Hysteresis [% of Sr]: 1...20

Operating conditions

• Ambient temperature [°C]: -40...85
• Protection: IP 67; IP 69K

Tests / approvals

• EMC: EN 61000-4-2 ESD, 4 kV CD / 8 kV AD
, EN 61000-4-3 HF radiated, 30 V/m, EN 61000-4-4 Burst, 2 V, EN 61000-4-5 Surge, 0,5 kV mains line to line, EN 61000-4-6 HF conducted, 10 V, EN 55011, class B
• Vibration resistance: EN 60068-2-6 Fc, 20 g (10...3000 Hz) / -20...50 °C
, , 50 sweep cycles, 1 octave per minute, in 3 axes
• Shock resistance: EN 60068-2-27 Ea, 100 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes / -40...85 °C
• Continuous shock resistance:
