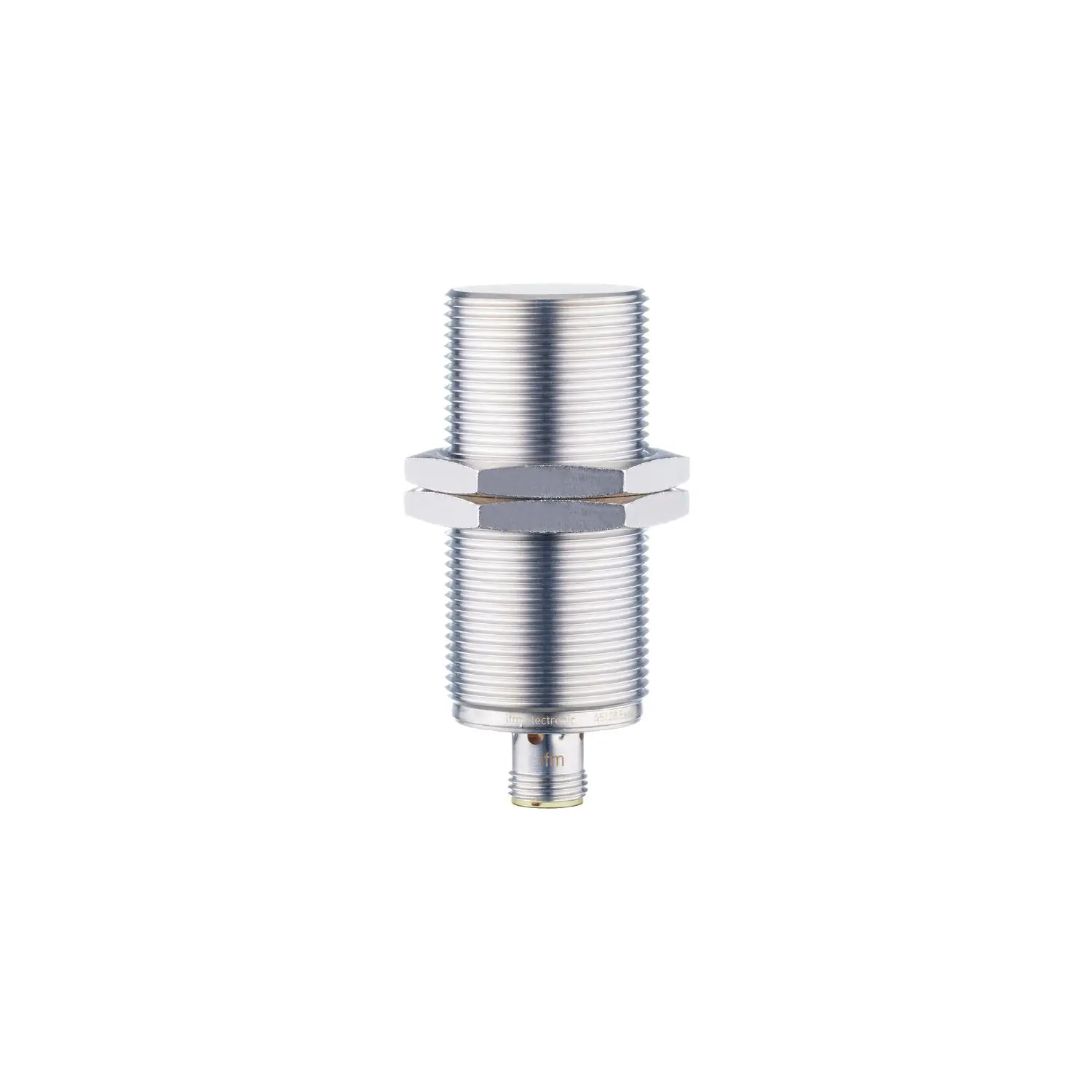

ifm Electronic II5910 Induktiver Sensor

Product characteristics

• Electrical design: PNP
• Output function: normally open
• Sensing range [mm]: 15
• Housing: threaded type
• Dimensions [mm]: M30 x 1.5 / L = 75

Application

• Special feature: Gold-plated contacts
• Application: Industrial applications / factory automation

Electrical data

• Operating voltage [V]: 10...32 DC
• Current consumption [mA]: 10
• Protection class: II
• Reverse polarity protection: yes

Outputs

• Electrical design: PNP
• Output function: normally open
• Max. voltage drop switching output DC [V]: 2.5
• Permanent current rating of switching output DC [mA]: 200
• Switching frequency DC [Hz]: 100
• Short-circuit protection: yes
• Type of short-circuit protection: pulsed
• Overload protection: yes

Detection zone

• Sensing range [mm]: 15
• Real sensing range Sr [mm]: 15 ± 10 %
• Operating distance [mm]: 0...12.15

Accuracy / deviations

• Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
• Hysteresis [% of Sr]: 1...20
• Switch point drift [% of Sr]: -10...10

Operating conditions

• Ambient temperature [°C]: -40...70
• Protection: IP 67

Tests / approvals

• EMC: EN 61000-4-2 ESD, 4 kV CD / 8 kV AD
, EN 61000-4-3 HF radiated, 10 V/m, EN 61000-4-4 Burst, 2 kV, EN 61000-4-5 Surge, 0,5 kV line to line, Ri: 2 Ohm, EN 61000-4-6 HF conducted, 10 V, EN 55011, class B, signal-to-noise ratio walkie-talkie, 150 MHz (5 W): 7,5 cm / 450 MHz (5 W): 5 cm / 900 MHz (2 W): 0 cm
• Vibration resistance: EN 60068-2-6 Fc, 20 g (10...3000 Hz) / 50 sweep cycles, 1 octave per minute, in 3 axes
• Shock resistance: EN 60068-2-27 Ea, 100 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes
