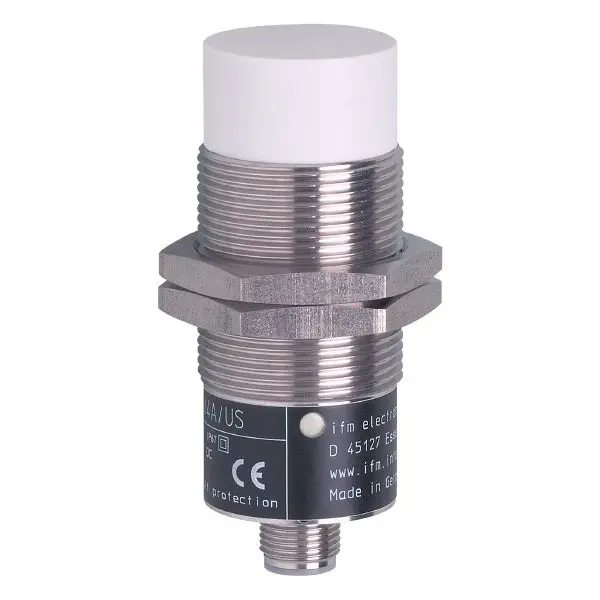

ifm Electronic II5751 Induktiver Sensor

Product characteristics

• Electrical design: PNP/NPN
• Output function: normally open / normally closed; (selectable)
• Sensing range [mm]: 10
• Housing: threaded type
• Dimensions [mm]: M30 x 1.5 / L = 92

Application

• Special feature: Gold-plated contacts
• Application: Industrial applications / factory automation

Electrical data

• Operating voltage [V]: 10...55 DC
• Protection class: II
• Reverse polarity protection: yes

Outputs

• Electrical design: PNP/NPN
• Output function: normally open / normally closed; (selectable)
• Max. voltage drop switching output DC [V]: 4.6
• Minimum load current [mA]: 4
• Max. leakage current [mA]: 0.8
• Permanent current rating of switching output DC [mA]: 400
• Switching frequency DC [Hz]: 450
• Short-circuit protection: yes
• Type of short-circuit protection: pulsed
• Overload protection: yes

Detection zone

• Sensing range [mm]: 10
• Real sensing range Sr [mm]: 10 ± 10 %
• Operating distance [mm]: 0...8.1

Accuracy / deviations

• Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
• Hysteresis [% of Sr]: 3...15
• Switch point drift [% of Sr]: -10...10

Operating conditions

• Ambient temperature [°C]: -25...80
• Protection: IP 67

Tests / approvals

• EMC: EN 60947-5-2,
, EN 55011, class B
• MTTF [years]: 1835

Mechanical data

• Weight [g]: 160
• Housing: threaded type
• Mounting: flush mountable
• Dimensions [mm]: M30 x 1.5 / L = 92
• Thread designation: M30 x 1.5
• Materials: stainless steel (1.4571/316Ti ); sensing face: PC

Displays / operating elements

• Display: switching status, 1 x LED, yellow
