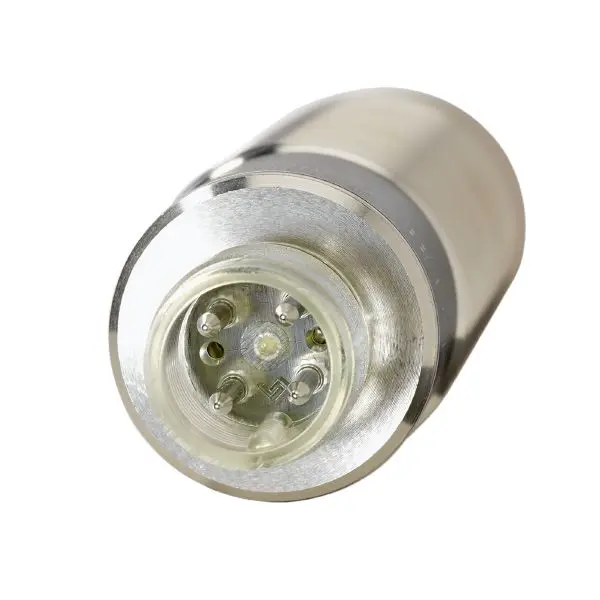

ifm Electronic II5483 Induktiver Sensor

Product characteristics

• Electrical design: PNP
• Output function: normally open
• Sensing range [mm]: 15
• Housing: threaded type
• Dimensions [mm]: M30 x 1.5

Electrical data

• Operating voltage [V]: 10...36 DC
• Current consumption [mA]: 15; (24 V)
• Protection class: II
• Reverse polarity protection: yes

Outputs

• Electrical design: PNP
• Output function: normally open
• Max. voltage drop switching output DC [V]: 2.5
• Permanent current rating of switching output DC [mA]: 250
• Switching frequency DC [Hz]: 200
• Short-circuit protection: yes
• Type of short-circuit protection: pulsed
• Overload protection: yes

Detection zone

• Sensing range [mm]: 15
• Real sensing range Sr [mm]: 15 ± 10 %
• Operating distance [mm]: 0...12.1

Accuracy / deviations

• Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2
• Hysteresis [% of Sr]: 1...15
• Switch point drift [% of Sr]: -10...10

Operating conditions

• Ambient temperature [°C]: -25...80
• Protection: IP 65

Tests / approvals

• EMC: EN 60947-5-2,
, EN 55011, class B
• MTTF [years]: 1853

Mechanical data

• Weight [g]: 171
• Housing: threaded type
• Mounting: non-flush mountable
• Dimensions [mm]: M30 x 1.5
• Thread designation: M30 x 1.5
• Materials: brass nickel-plated; CO-PC

Displays / operating elements

• Display: switching status, 1 x LED, yellow

Accessories

• Items supplied: lock nuts: 2

Remarks

• Pack quantity: 1 pcs.

Electrical connection - plug

• Connection: Connector: 1 x M18; coding: A

II5483-00 — 13.04.2023 —
