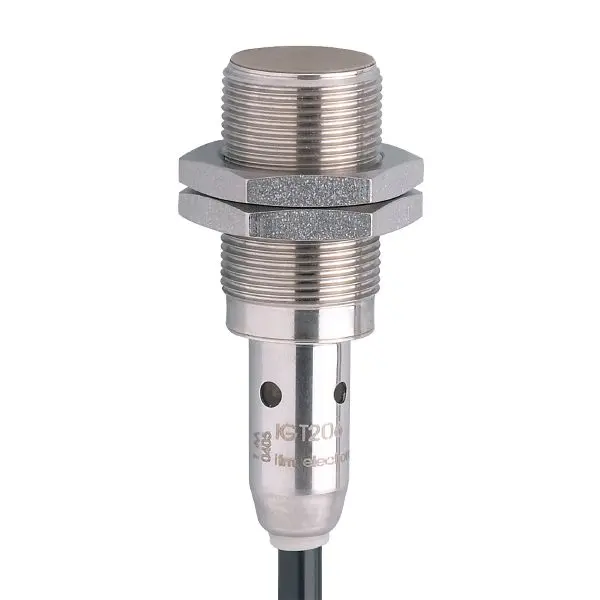

ifm Electronic IGT207, Induktiver Sensor

Product characteristics

• Electrical design: PNP
• Output function: normally open
• Sensing range [mm]: 8
• Housing: threaded type
• Dimensions [mm]: M18 x 1 / L = 57

Application

• Special feature: Increased sensing range
• Application: regular cleaning processes

Electrical data

• Operating voltage [V]: 10...36 DC
• Current consumption [mA]: < 10
• Protection class: II
• Reverse polarity protection: yes

Outputs

• Electrical design: PNP
• Output function: normally open
• Max. voltage drop switching output DC [V]: 2.5
• Permanent current rating of switching output DC [mA]: 100
• Switching frequency DC [Hz]: 600
• Short-circuit protection: yes
• Type of short-circuit protection: pulsed
• Overload protection: yes

Detection zone

• Sensing range [mm]: 8
• Operating distance [mm]: 0...6.48
• Increased sensing range: yes

Accuracy / deviations

• Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.4 / copper: 0.3
• Hysteresis [% of Sr]: 1...20

Operating conditions

• Ambient temperature [°C]: 0...100
• Protection: IP 68; IP 69K; ("COP")

Tests / approvals

• EMC: EN 61000-4-2 ESD, 4 kV CD / 8 kV AD
, EN 61000-4-3 HF radiated, 10 V/m, EN 61000-4-4 Burst, 2 kV, EN 61000-4-5 Surge, 0,5 kV, EN 61000-4-6 HF conducted, 10 V, EN 55011, class B
• MTTF [years]: 1727
• UL approval: Ta, 0...40 °C
, Enclosure type, Type 1 , power supply, Limited Voltage/Current , File number UL, E174191

Mechanical data

• Weight [g]: 542.5
• Housing: threaded type
• Mounting: flush mountable
• Dimensions [mm]: M18 x 1 / L = 57
• Thread designation: M18 x 1
• Materials: stainless steel (1.4404 / 316L); sensing
