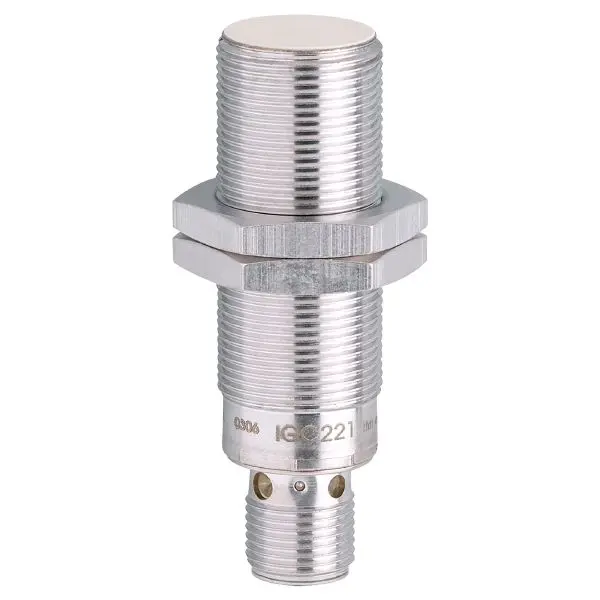

ifm Electronic IGC235, Induktiver AS-Interface Sensor

Product characteristics

• Electrical design: AS-i
• Sensing range [mm]: 12
• Housing: threaded type
• Dimensions [mm]: M18 x 1 / L = 60

Application

• Special feature: Gold-plated contacts
• Application: Use in machine tools, coolants and lubricants

Electrical data

• Operating voltage [V]: 26.5...31.6 DC
• Current consumption [mA]: < 30
• Protection class: III
• Reverse polarity protection: yes
• Max. power-on delay time [ms]: 1000

Outputs

• Electrical design: AS-i
• Switching frequency DC [Hz]: 100

Detection zone

• Sensing range [mm]: 12
• Real sensing range Sr [mm]: 12 ± 10 %
• Operating distance [mm]: 0...9.7

Accuracy / deviations

• Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.45 / copper: 0.35
• Hysteresis [% of Sr]: 1...20
• Switch point drift [% of Sr]: -10...10

Operating conditions

• Ambient temperature [°C]: -25...70
• Protection: IP 68; ("Coolant")

Tests / approvals

• EMC: EN 61000-4-2 ESD, 4 kV CD / 8 kV AD
, EN 61000-4-3 HF radiated, 10 V/m, EN 61000-4-4 Burst, 2 kV, EN 61000-4-6 HF conducted, 10 V, EN 55011, class B
• MTTF [years]: 1565
• UL approval: Ta, -25...70 °C
, Enclosure type, Type 1 , power supply, Limited Voltage/Current , File number UL, E174191

AS-i classification

• AS-i version: 2.1
• Extended addressing mode: yes
• AS-i I/O configuration [hex]: 0
• AS-i ID code [hex]: A.F
• AS-i certificate: 57301
• Assignment of the data bits: Designation, switching signal, not used, not used, not used
, status = 0, target outside the active zone, -, -, -, status = 1, target within the active zone, default value, default value, default value

Mechanical data
