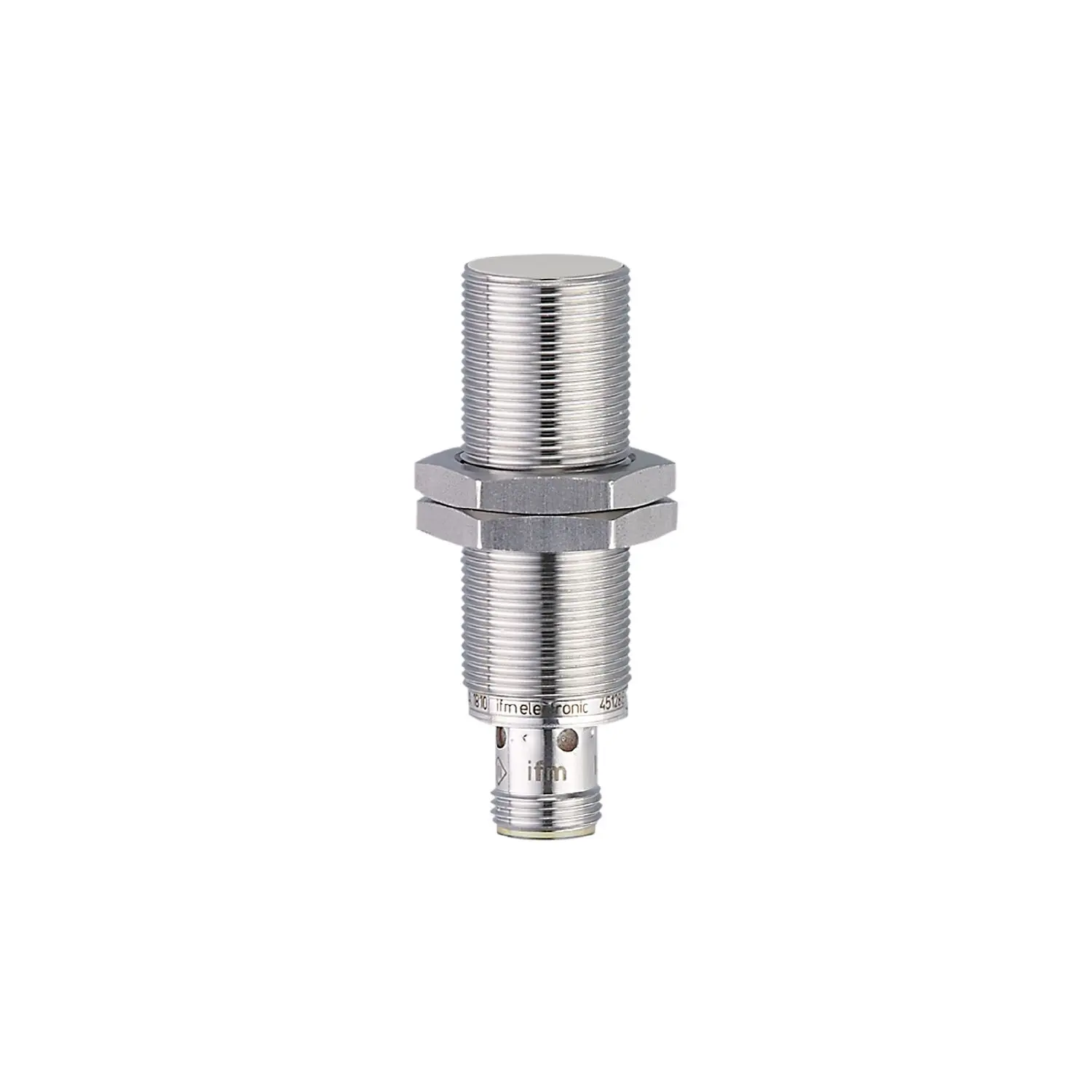

ifm Electronic IG5930 Induktiver Sensor

Product characteristics

• Electrical design: PNP
• Output function: normally open
• Sensing range [mm]: 8
• Housing: threaded type
• Dimensions [mm]: M18 x 1 / L = 60

Application

• Special feature: Gold-plated contacts

Electrical data

• Operating voltage [V]: 10...36 DC
• Current consumption [mA]: < 10
• Protection class: II
• Reverse polarity protection: yes

Outputs

• Electrical design: PNP
• Output function: normally open
• Max. voltage drop switching output DC [V]: 2.5
• Permanent current rating of switching output DC [mA]: 200
• Switching frequency DC [Hz]: 400
• Short-circuit protection: yes
• Type of short-circuit protection: pulsed
• Overload protection: yes

Detection zone

• Sensing range [mm]: 8
• Operating distance [mm]: 0...6.5

Accuracy / deviations

• Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
• Hysteresis [% of Sr]: 1...20

Operating conditions

• Ambient temperature [°C]: -25...70
• Protection: IP 68; ("Coolant")

Tests / approvals

• EMC: EN 61000-4-2 ESD, 4 kV CD / 8 kV AD
, EN 61000-4-3 HF radiated, 10 V/m, EN 61000-4-4 Burst, 2 kV, EN 61000-4-5 Surge, 0,5 kV line to line, Ri: 2 Ohm, EN 61000-4-6 HF conducted, 10 V, EN 55011, class B
• MTTF [years]: 1770

Mechanical data

• Weight [g]: 47.4
• Housing: threaded type
• Mounting: flush mountable
• Dimensions [mm]: M18 x 1 / L = 60
• Thread designation: M18 x 1
• Materials: brass white bronze coated; sensing face: LCP uncoloured

Displays / operating elements

• Display: switching status, 4 x 90° LED, yellow

Accessories

• Items supplied: lock nuts: 2
