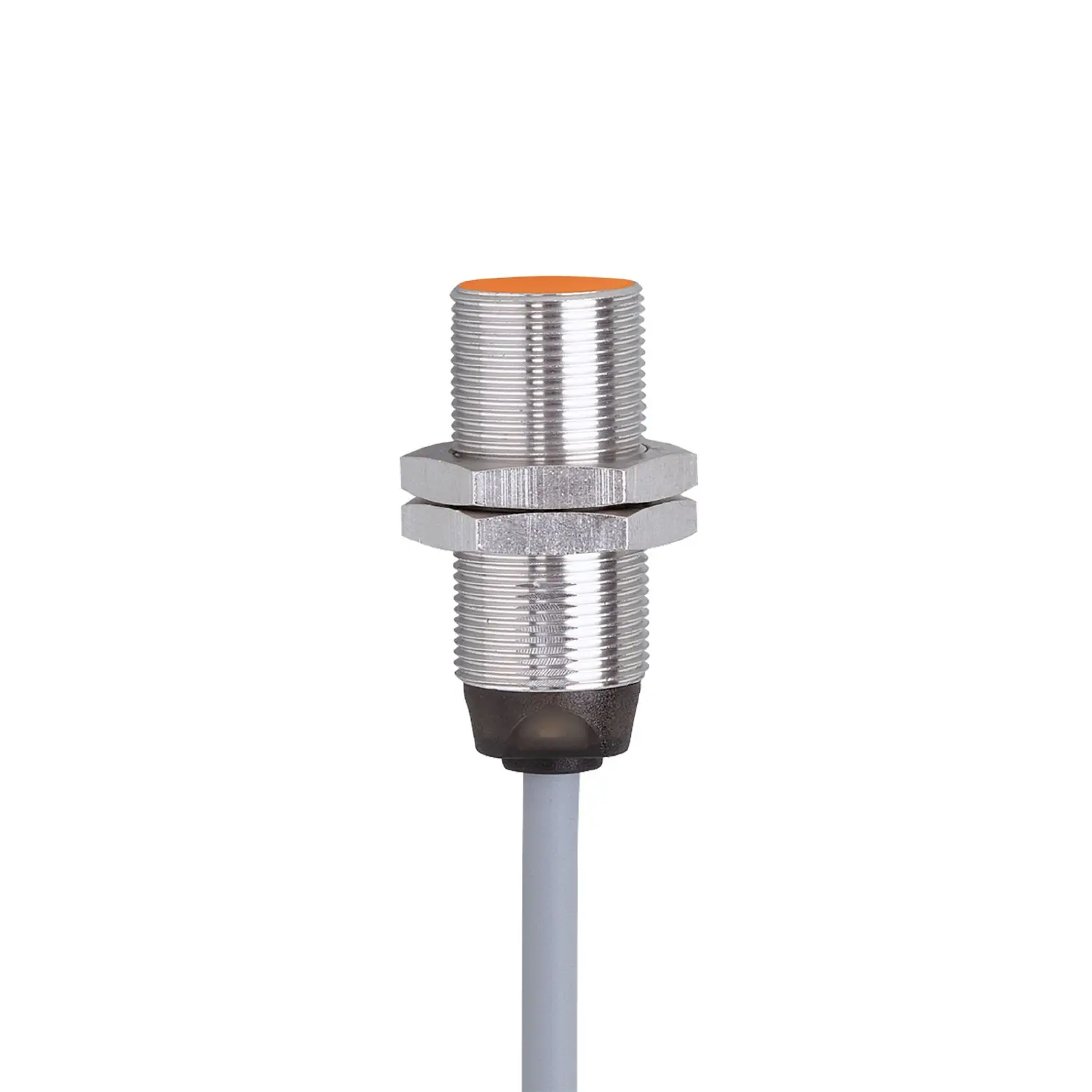

ifm Electronic IG5899 Induktiver Sensor

Product characteristics

• Electrical design: PNP/NPN
• Output function: normally closed
• Sensing range [mm]: 8
• Housing: threaded type
• Dimensions [mm]: M18 x 1 / L = 43

Electrical data

• Operating voltage [V]: 10...36 DC
• Protection class: II
• Reverse polarity protection: no

Outputs

• Electrical design: PNP/NPN
• Output function: normally closed
• Max. voltage drop switching output DC [V]: 5
• Minimum load current [mA]: 5
• Max. leakage current [mA]: 1
• Permanent current rating of switching output DC [mA]: 100
• Switching frequency DC [Hz]: 100
• Short-circuit protection: no
• Overload protection: no

Detection zone

• Sensing range [mm]: 8

Accuracy / deviations

• Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.4 / copper: 0.3

Operating conditions

• Ambient temperature [°C]: -25...70
• Protection: IP 67

Tests / approvals

• EMC: EN 60947-5-2,
• MTTF [years]: 2673

Mechanical data

• Weight [g]: 303
• Housing: threaded type
• Mounting: flush mountable
• Dimensions [mm]: M18 x 1 / L = 43
• Thread designation: M18 x 1
• Materials: brass white bronze coated; PC

Displays / operating elements

• Display: switching status, 1 x LED, red

Accessories

• Items supplied: lock nuts: 2

Remarks

• Pack quantity: 1 pcs.

Electrical connection

• Connection: Cable: 6 m, PUR / PVC; 2 x 0.34 mm²

IG5899-00 — 13.04.2023 —
