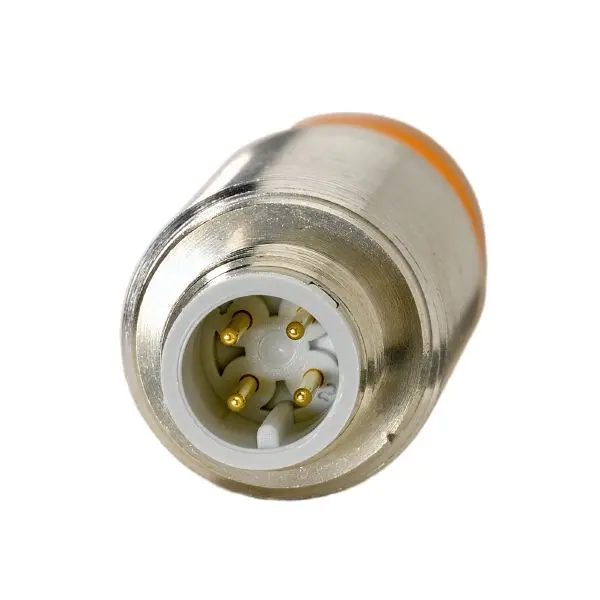

ifm Electronic IG5846, Induktiver Sensor

Product characteristics

• Electrical design: PNP
• Output function: complementary
• Sensing range [mm]: 10
• Housing: threaded type
• Dimensions [mm]: M18 x 1 / L = 45

Application

• Special feature: Gold-plated contacts
• Application: Industrial applications / factory automation

Electrical data

• Operating voltage [V]: 10...36 DC
• Current consumption [mA]: 15; (24 V)
• Protection class: II
• Reverse polarity protection: yes

Outputs

• Electrical design: PNP
• Output function: complementary
• Max. voltage drop switching output DC [V]: 2.5
• Max. leakage current [mA]: 0.5
• Permanent current rating of switching output DC [mA]: 250
• Switching frequency DC [Hz]: 300
• Short-circuit protection: yes
• Type of short-circuit protection: pulsed
• Overload protection: yes

Detection zone

• Sensing range [mm]: 10
• Real sensing range Sr [mm]: 10 ± 10 %
• Operating distance [mm]: 0...8.1

Accuracy / deviations

• Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2
• Hysteresis [% of Sr]: 3...15
• Switch point drift [% of Sr]: -10...10

Operating conditions

• Ambient temperature [°C]: -25...80
• Protection: IP 67

Tests / approvals

• EMC: EN 61000-4-2 ESD, 4 kV CD / 8 kV AD
, EN 61000-4-3 HF radiated, 3 V/m, EN 61000-4-4 Burst, 2 kV, EN 61000-4-5 Surge, 0,5 kV line to line, Ri: 2 Ohm, EN 61000-4-6 HF conducted, 3 V, EN 55011 emission, class B
• MTTF [years]: 1447

Mechanical data

• Weight [g]: 41.6
• Housing: threaded type
• Mounting: non-flush mountable
• Dimensions [mm]: M18 x 1 / L = 45
• Thread designation: M18 x 1
• Materials: stainless steel (1.4571/316Ti ); sensing face: PBT
