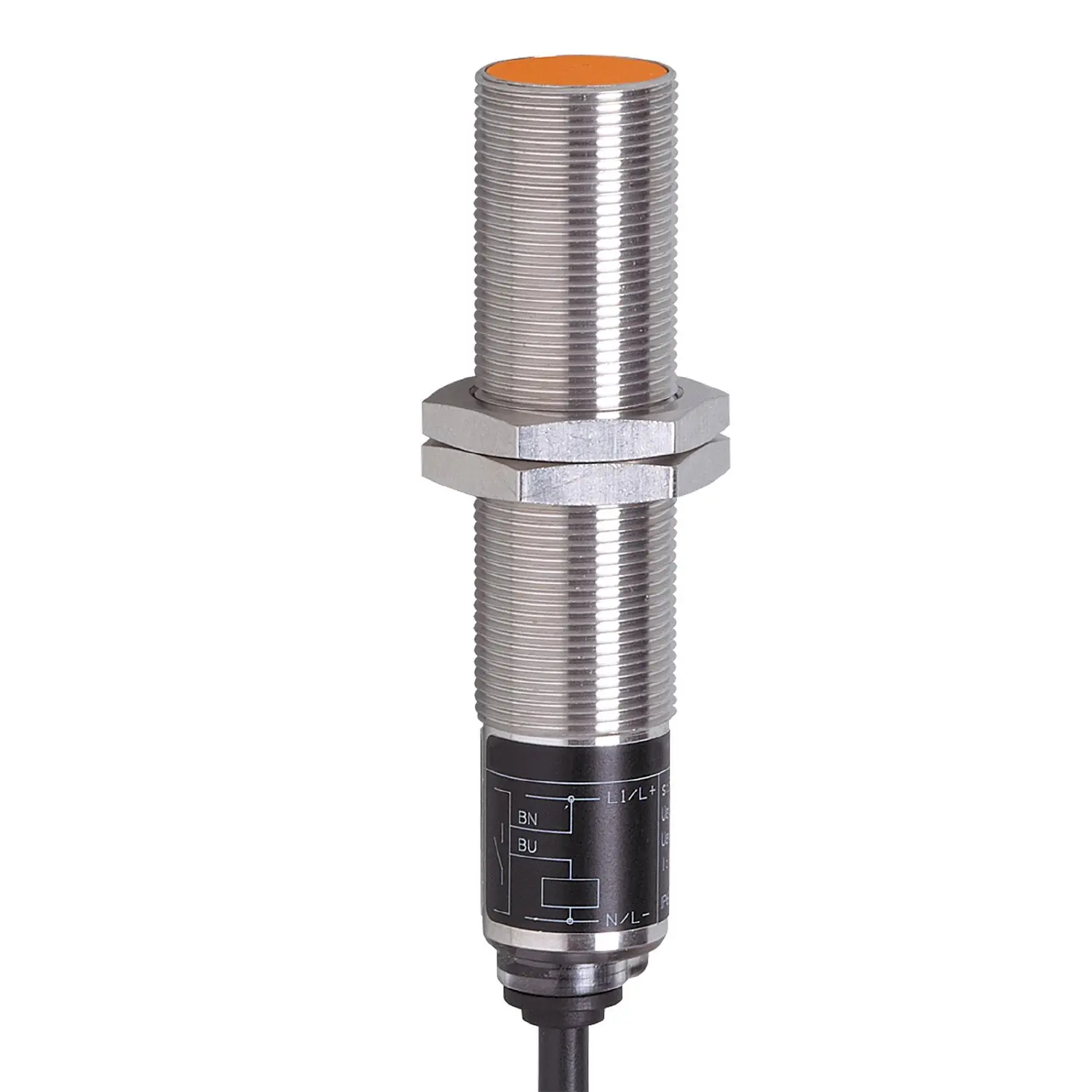

ifm Electronic IG0400 Induktiver Sensor

Product characteristics

• Output function: normally open
• Sensing range [mm]: 5
• Housing: threaded type
• Dimensions [mm]: M18 x 1 / L = 82

Electrical data

• Operating voltage [V]: 75...250 AC / 20...250 DC
• Protection class: II
• Reverse polarity protection: yes

Outputs

• Output function: normally open
• Max. voltage drop switching output DC [V]: 5.5
• Max. voltage drop switching output AC [V]: 5.5
• Minimum load current [mA]: 4
• Max. leakage current [mA]: 4
• Permanent current rating of switching output AC [mA]: 100
• Permanent current rating of switching output DC [mA]: 100
• Short-time current rating of switching output [mA]: 900; (20 ms / 0,5 Hz)
• Switching frequency AC [Hz]: 25
• Switching frequency DC [Hz]: 50
• Short-circuit protection: yes
• Type of short-circuit protection: pulsed
• Overload protection: yes

Detection zone

• Sensing range [mm]: 5
• Real sensing range Sr [mm]: 5 ± 10 %
• Operating distance [mm]: 0...4.05

Accuracy / deviations

• Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
• Hysteresis [% of Sr]: 1...15
• Switch point drift [% of Sr]: -10...10

Operating conditions

• Ambient temperature [°C]: -25...80
• Protection: IP 67

Tests / approvals

• EMC: EN 61000-4-2 ESD, 4 kV CD / 8 kV AD
, EN 61000-4-3 HF radiated, 3 V/m, EN 61000-4-4 Burst, 2 kV, EN 61000-4-6 HF conducted, 3 V, EN 55011 emission, class B
• MTTF [years]: 397
• UL approval: Ta, 0...40 °C
, Enclosure type, Type 1 , power supply, Hazardous voltage , File number UL, E174191

Mechanical data

• Weight [g]: 129
• Housing: threaded type
• Mounting: flush mountable
• Dimensions [mm]: M18 x
